Jet | SKU:
JET708659K

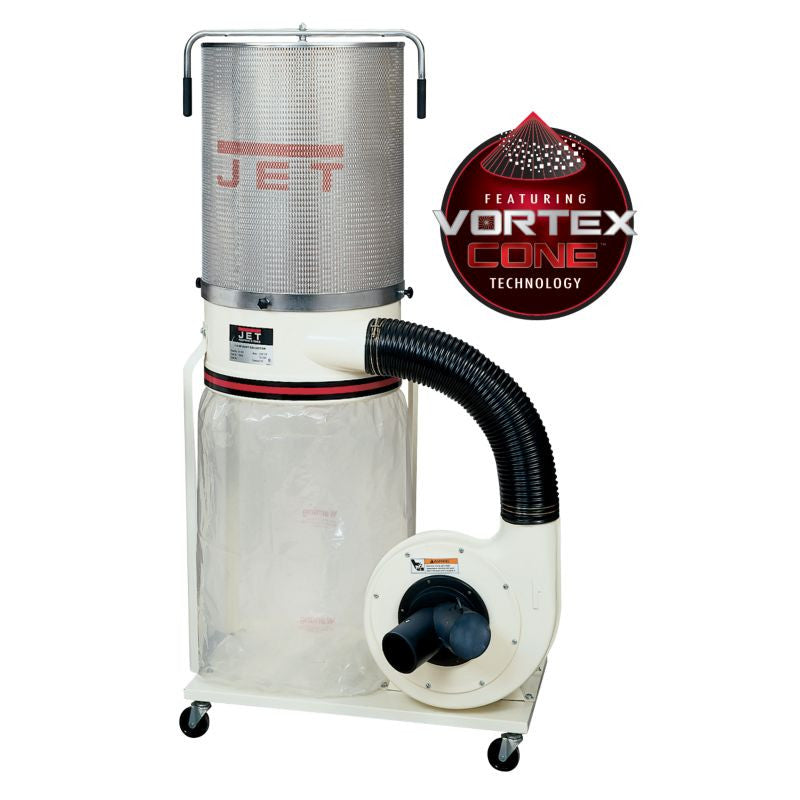

JET 708659K DC-1100VX-CK Dust Collector
$1,055.00
Unit price
/
Unavailable
JET 708659K DC-1100VX-CK Dust Collector is backordered and will ship as soon as it is back in stock.
Contact Us
Email: sales@mile-x.com
Company Headquarters
Mile-X Equipment, Inc.
801 N. 2nd Street
Coldwater, OH 45828
Coldwater is located near the Indiana border, 2 hours north of Cincinnati and 2 hours south of Toledo.
Local Phone
- 419-678-1442
- 419-678-3818
- 419-678-8091
- 419-763-5818
Fax
- 419-678-2489
Jet DC-1100VX-CK Dust Collector
The JET DC-1100VX features the exclusive Vortex Cone which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The high air velocity (CFM) stands up to any competitive specifications, and the industrial controls are designed for years of durable use. Collection bags have a snap ring for fast installation and removal. Casters offer maneuverability within the shop.
Jet Tool Features:
- Vortex Cone improves chip separation and collector bag packing efficiency
- Eliminates premature filter clogging for sustained performance
- Single-stage design for economical and quiet operation
- Industrial controls designed for years of trouble-free use
- Quick-connect collection bags with elastic band for fast, easy installation and removal
- High air velocity (CFM) design stands up to any competitive specifications
- Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
- Includes four casters for maneuverability and total portability
Specifications:
- Part Number | 708659K
- Trademark | Vortex Cone
- Remote Control | n.a.
- Sound Rating | 70 - 80 dB
- 1-Hose Connection Diameter | 6"
- 2-Hoses Connection Diameter | 4"
- Bag Diameter | 20"
- Filter Bag/Canister Length | 25"
- Collection Bag Capacity | 5.3 cubic foot
- Collection Bag Length | 29"
- Air Flow @ 4" | 1,100 cu.ft/min
- Static Pressure | 10½ inch of water
- Particle Size (Micron) | 98% of 2 micron particles: 86% of 1 micron particles
- Velocity @ 4" | 8,464 foot per minute
- Air Inlet | (1) at 6" or (2) at 4"
- Impeller Diameter | 11"
- Impeller Material | Steel
- Separator Tank Diameter | 20"
- Separator Tank Height | 10"
- Motor Power | 1½ HP
- Motor Phase | 1 Ph
- Motor Voltage | 115 / 230 V
- Prewired Voltage | 115 V
- Motor Current | 11 / 5.5 A
- Web Description | DC-1100VX-CK Dust Collector, 1.5HP 1PH 115/230V, 2-Micron Canister Kit
- Model Number | DC-1100VX-CK
- Overall Dimensions | 37" x 22.5" x 39" (shipped), 37" x 22.5" x 72" (assembled)
- Height | 39"
- Width | 22.5"
- Length | 37"
- Net Weight | 159 lbs
PLEASE NOTE, IMPORTANT INFORMATION:
- This item ships by truck. Please notify Mile-X Equipment if Liftgate and/or Residential Delivery is required. Please Note that for Residential deliveries, someone MUST be present at time of delivery
- When ordering the checkout cart will incorrectly state that this ships by UPS
- Call 1.800.837.3818 or Click Here to eMail us for Sale Pricing
