• Vortex Cone improves chip separation and collector bag packing efficiency
• Eliminates premature filter clogging for sustained performance
• Single-stage design for economical and quiet operation
• Industrial controls designed for years of trouble-free use
• Quick-connect collection bags with elastic band for fast, easy installation and removal
• High air velocity (CFM) design stands up to any competitive specifications
• Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
• Includes four casters for maneuverability and total portability

Specifications:

• Part Number | 710702K
• Trademark | Vortex Cone
• Remote Control | n.a.
• Sound Rating | 80 - 85 dB
• 1-Hose Connection Diameter | 6"
• 2-Hoses Connection Diameter | 4"
• Bag Diameter | 20"
• Filter Bag/Canister Length | 25"
• Collection Bag Capacity | 5.3 cubic foot
• Collection Bag Length | 29"
• Air Flow @ 4" | 1,200 cu.ft/min
• Static Pressure | 11½ inch of water
• Particle Size (Micron) | 98% of 2 micron particles: 86% of 1 micron particles
• Velocity @ 4" | 1,200 foot per minute
• Air Inlet | (1) at 6" or (2) at 4"
• Impeller Diameter | 12"
• Impeller Material | Steel
• Separator Tank Diameter | 20"
• Separator Tank Height | 10"
• Motor Power | 2 HP
• Motor Phase | 1 Ph
• Motor Voltage | 230 V
• Prewired Voltage | 230 V
• Motor Current | 8 A

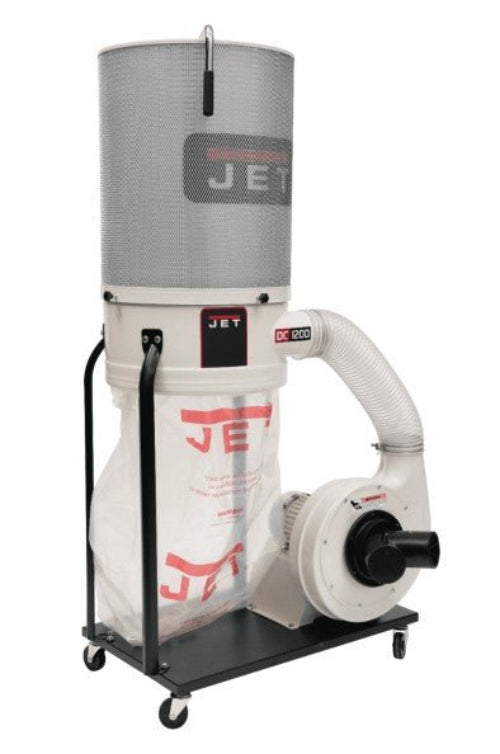

• Web Description | DC-1200VX-CK1 Dust Collector, 2HP 1PH 230V, 2-Micron Canister Kit
• Model Number | DC-1200VX-CK1
• Overall Dimensions | 37.5 x 22.5 x 39 (shipped), 37 x 28 x 72 (assembled)
• Height | 39"
• Width | 22.5"
• Length | 37.5"
• Net Weight | 170 lbs

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck. Please notify Mile-X Equipment if Liftgate and/or Residential Delivery is required. Please Note that for Residential deliveries, someone MUST be present at time of delivery
• When ordering the checkout cart will incorrectly state that this ships by UPS
• Call 1.800.837.3818 or Click Here to eMail us for Sale Pricing
