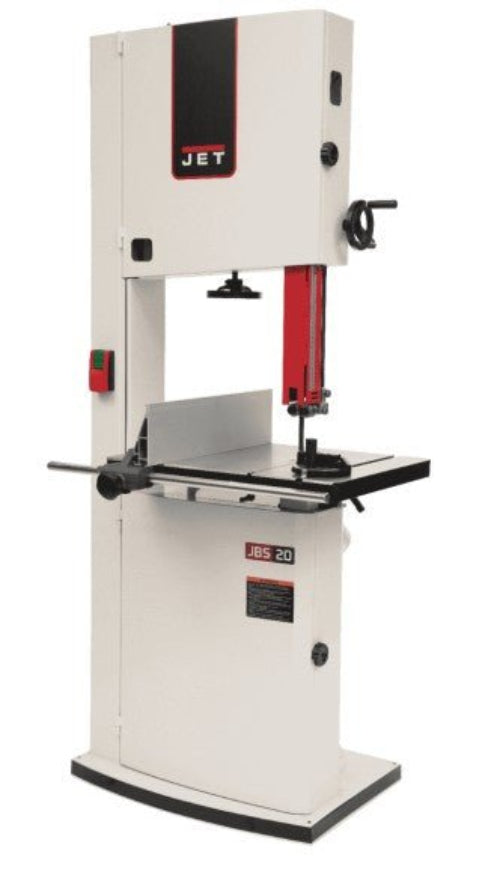

JET 714800 JWBS-20-3, 20" Bandsaw, 3HP, 230V

Designed to perform, the JET 20” bandsaw delivers more re-saw capacity, greater throat depth and the horsepower you need to tackle bigger boards, create smoother edges and master the intricate cuts. The heavy-duty cast-iron fence system is built to give you the sturdiness and support you need for every project and features a micro-adjust dial for exact placement. The table is slotted and the guide post has a stress-free magnetic door on the front for efficient blade changes. Large, independently adjustable guides are tool-less to save you time on set up. The JET 20” steel frame bandsaw is engineered to build great projects through superior performance

Features:

• 16" Resaw capacity for cutting large pieces of wood, slicing veneers and cutting book matched panels
• 27-1/4" x 20" precision ground cast iron table for added stability and work support
• Fence system features a micro-adjustable, dual-position side plate
• Tool-less, independently adjustable, upper and lower ball bearing guides
• Rigid, four-sided guide post with rack and pinion adjustment for optimum blade support
• Easy-to-read blade tension scale can be viewed through upper door window
• Single knob adjustment simplifies the blade tracking process
• Blade tracking window provides clear view of blade during tracking
• Heavy duty tensioning with quick release features three settings: full tension, partial tension and full release
• Cast iron trunnion for maximum support and stability
• Slotted table allows for front blade removal
• Cast iron hand wheels and ergonomically designed knobs make adjustments smooth and easy
• Round table insert features leveling screws for precise adjustment
• Conveniently located dual 4" dust collection ports catch dust and chips at the source
• Table tilts 5° left and 45° right to accommodate a wide variety of cuts

Specifications:

• Band Saw Size/Wheel Diameter | 20-1/4"
• Cutting Capacity Width | 20"
• Cutting Capacity Height | 16"
• Blade Length | 158"
• Blade Speed (SFPM) | 2530/4850
• Table Size | 27-1/4"l x 20"w x 1-5/8
• Blade Width | 1" x 3TPI
• Maximum Saw Blade Width | 1-1/2"
• Minimum Saw Blade Width | 1/8"
• Table Tilt | -5,45°
• Table Height from Floor | 37"
• Dust Collection Minimum CFM Required (CFM) | 400
• Dust Port Outside Diameter | 4" (x2)
• Motor Power | 3 hp
• Motor Phase | 1 ph
• Motor Voltage | 230 v only
• Motor Amps | 12 amps
• Recommended Circuit Size | 30 amps

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck. Please notify Mile-X Equipment if Liftgate and/or Residential Delivery is required. Please Note that for Residential deliveries, someone MUST be present at time of delivery.
