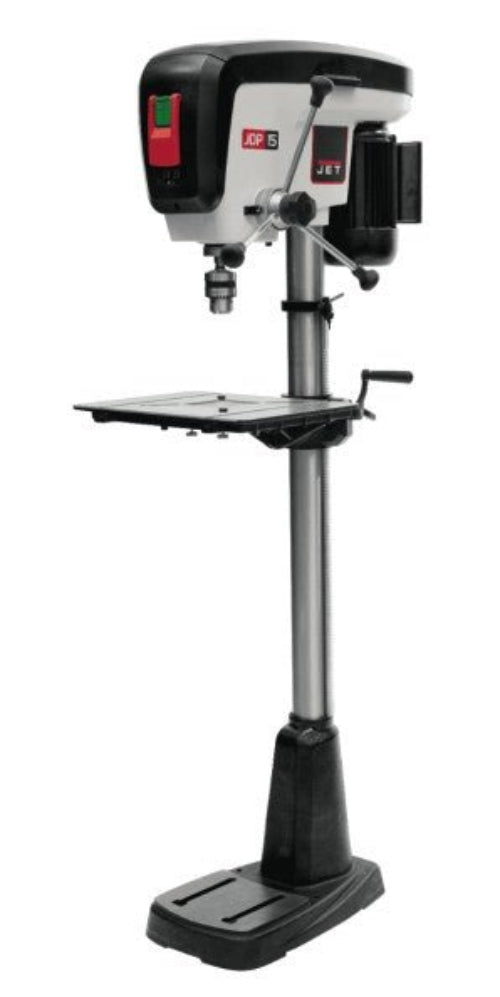

Jet 716250 15" Floorstanding Drill Press

REPLACES 354166

The new JET JDP-15F, 15 Floorstanding Drill Press. From a full 3-1/8 of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press also features a one-handed belt-tensioning system and a large 12-1/2" x 17" work table.

Features:

• Spindle travels a full 3-1/8” with one revolution of the handle
• Large 12-1/2" x 17" precision ground work table features twin T-slot grooves and 4 table slots to accommodate any project
• One-handed belt tensioning allows for rapid speed changes
• Power switch features a safety key and large, paddle-style off button
• Integrated depth stop makes repetitive drilling quick and easy
• Xacta-X laser system easily identifies the drill center
• Long-lasting, built-in LED work light reduces shadows
• Table edge lip designed to make clamping easy
• Replaceable MDF table insert
• Large cast iron base provides stability
• Powered by an efficient 3/4HP, 1Ph, 115V TEFC motor and poly-v belt drive system
• CSA Certified

Specifications:

• Style | Floorstanding Model
• Swing | 15"
• Spindle Travel | 3-1/8"
• Number of Spindle Speeds | 16
• Spindle Taper | MT2/JT3
• Spindle Speed Range (RPM) | 210 - 3500
• Spindle Distance to Table (Max.) | 30-1/2"
• Table Size | 12-1/2"l x 17"w
• Table Tilt (Deg.) | 45 Left and Right
• Chuck Size | 5/8"
• Column Diameter | 2-3/4"
• Base Size | 18-7/8"w x 11-3/8"w
• Motor Power (HP) | 3/4
• Motor Phase (PH) | 1
• Motor Voltage (V) | 115
• Prewired Voltage (V) | 115
• Motor Amps | 9
• Weight | 172 lbs

Click Here for Manual

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck. Please notify Mile-X Equipment if Liftgate and/or Residential Delivery is required. Please Note that for Residential deliveries, someone MUST be present at time of delivery.
