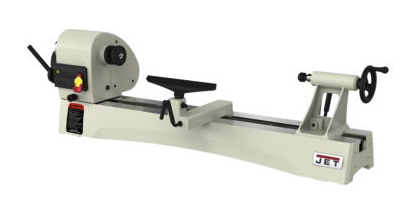

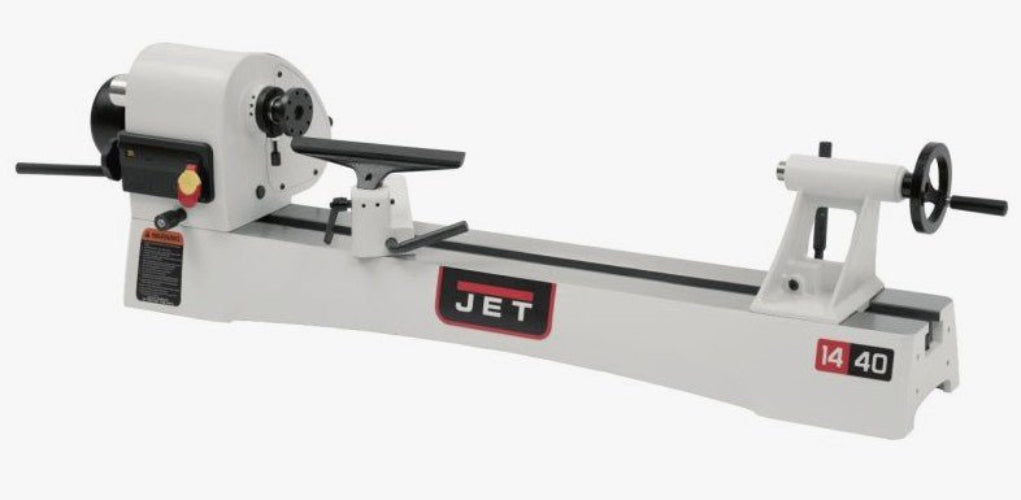

Jet 1440VS Woodworking Lathe - Bench Model 719400

The1440VS lathe from JET can be tailored to accomplish a wide range of projects. With a sliding and pivoting headstock, variable speed, and many other great features this lathe meets the needs of wood turners. Experience the 1440VS lathe and see how VersatilityTakes Shape.

Features:

• Sliding headstock pivots 360 degrees with 7 positive locking positions at 0, 30, 60, 90, 120, 180 and 270 degrees for maximum variability and optimal user comfort
• Variable speed from 400-3000 RPM
• Positive locking tool rest with redesigned clamping
• Extension bed mounts in 3 separate positions for larger outboard turning or 60" between centers
• ACME thread in tailstock
• Improved tailstock quill locking with anti-rotation key
• Easy-to-read RPM display
• CSA Certified
• Key Product Information:
• SKU – 719400K (floor standing model), 719400 (benchtop model)

Specifications:

• Style | Benchtop
• Swing Over Bed | 14-1/2"
• Swing Over Tool Rest Base | 11"
• Distance Between Centers | 40"
• Headstock Movement | Sliding/Pivoting
• Spindle Bore | 3/8"
• Tailstock Bore | 5/16"
• Spindle Taper | MT2
• Quill Taper | MT2
• Quill Travel | 4-1/4"
• Spindle Thread | 1/8" TPI
• Spindle Speeds | Variable
• Speed Range | 400-3000
• Number of Indexing Positions | 36
• Centerline of Spindle to Floor | 44"
• Outboard Turning | Yes
• Bed Construction | Cast Iron
• Motor Power | 1
• Motor Phase | 1
• Motor Voltage | 115/230
• Prewired Voltage | 115
• Motor | 11/5.5 amps

PLEASE NOTE, IMPORTANT INFORMATION:

CAUTION | Be sure that the supporting structures and load attaching devices used in conjunction with this hoist provide an adequate safety factor to handle the rated load plus the weight of the equipment. If in doubt, consult a qualified structural engineer. This equipment is not to be used for lifting, supporting, or transporting people or lifting or supporting loads over people.
