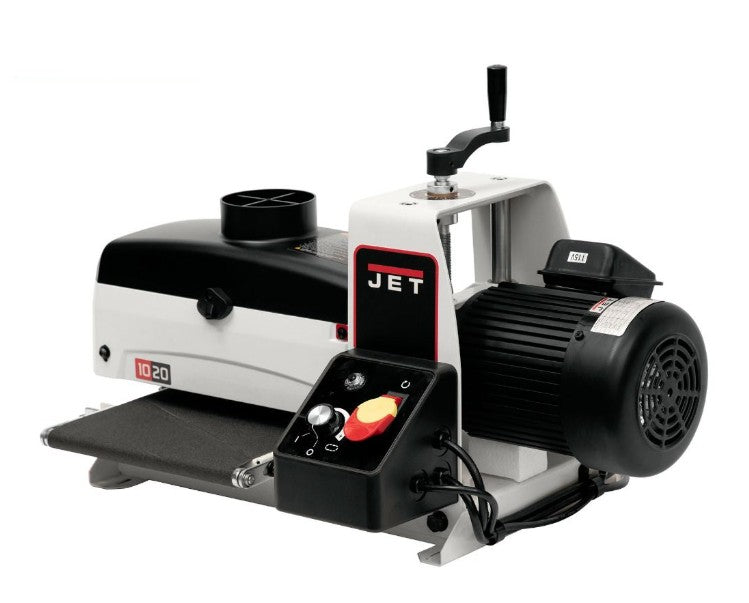

JET JWDS-1020 723510 Benchtop Drum Sander

The compact JWDS-1020 bench top sander from JET packs a powerful 1HP motor that will sand boards up to 3" thick and 20" wide. The innovative patented dust hood ensures dust is funneled to the 4 inch dust port that easily connects to a Dust Collector. Adjusting the table back to parallel is convenient with just the turn of a dial. The self-cooling extruded aluminum sanding drum protects the sanding surface from heat damage, preventing waste.

Features:

• Heavy duty die-cast aluminum and steel body provides rigidity for consistent quality
• Patented dust hood incorporates an integrated channel that directs dust to a 4" collection port.
• Parallelism adjust dial features a stop to quickly return the conveyor bed to a flat position
• Infinitely variable-speed control allows the user to choose the optimal feed rate
• Open ended design allows for up to 20" of sanding capacity with 2 passes
• Extruded aluminum drum is designed to dissipate heat and protect wood from heat-damage
• Redesigned conveyor system pulls the work piece through the sander instead of pushing
• Toolless abrasive take-up fasteners make changing abrasives quick and easy
• Precision-flattened reinforced steel conveyor bed supports the boards passing under the sanding drum
• Control system with integrated circuit breaker protects motor from over heating

Specifications:

• Style | Benchtop
• Drum Length | 10"
• Number of Sanding Drums | 1
• Drum Speed (RPM) | 1725
• Drum Diameter | 5"
• Conveyor Motor | Totally Enclosed DC
• Conveyor Speed (FPM) | 0 to 10
• Maximum Board Thickness | 3"
• Maximum Board Width | 20"
• Minimum Board Length | 2-1/4"
• Minimum Board Thickness | 1/32"
• Dust Collection Minimum CFM Required (CFM) | 550
• Dust Port Outside Diameter | 4"
• Motor Power | 1
• Motor Phase | 1
• Motor Voltage | 115
• Prewired Voltage | 115
