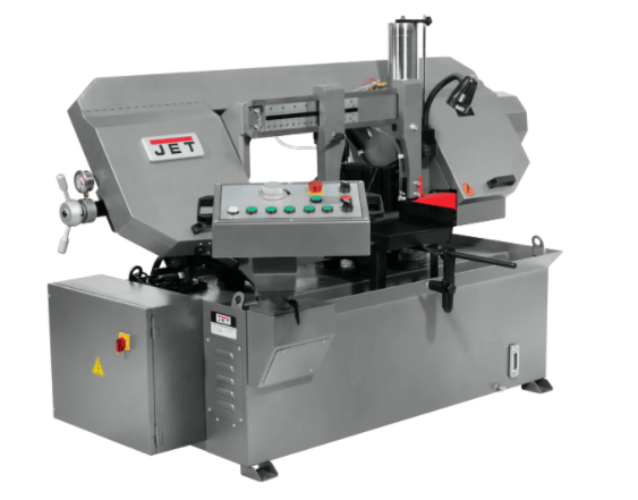

JET HBS1220DC, 12x20" Semi-Automatic Dual Column Bandsaw 3HP, 230/460V, 3 Phase
JET HBS1220DC, 12x20" Semi-Automatic Dual Column Bandsaw 3HP, 230/460V, 3 Phase is backordered and will ship as soon as it is back in stock.
Contact Us
Email: sales@mile-x.com
Company Headquarters
Mile-X Equipment, Inc.
801 N. 2nd Street
Coldwater, OH 45828
Coldwater is located near the Indiana border, 2 hours north of Cincinnati and 2 hours south of Toledo.
Local Phone
- 419-678-1442
- 419-678-3818
- 419-678-8091
- 419-763-5818
Fax
- 419-678-2489
JET HBS1220DCSemi-Automatic Dual Column Bandsaw 3HP, 230/460V, 3 Phase
JET's Dual Column Bandsaw is great for cutting large parts while keeping the blade as straight as possible while the head is descending during the cut.
Features:
- Blade tension gauge helps to ensure the blade is in the correct cutting position
- Built-in self propelled blade brush prevents chip build up in blade guides
- Coolant is distributed through the blade guides through an integrated coolant system
- Heavy duty construction reduces vibration and deflection
- Motor designed for continuous operation
- Powerful gearbox for long life
- Two column design for more productive cutting
Specifications:
- Blade Speeds (SFPM) | 86, 157, 228, 330
- Band Saw Size/Wheel Diameter | 16"
- Cutting Capacity Width | 20"
- Cutting Capacity Height | 12"
- Round at 90 Degrees | 12"
- Blade Length | 155-1/2"
- Blade Speed (SFPM) | 95 - 295
- Rectangle at 90 Degrees | 12" x 20"
- Throat Depth | 12" x 12"
- Blade Wheel Diameter | 16"
- Blade Width | 0.043"
- Electrics | 3HP, 230/460V, 3Ph
- Bed Height | 27"
- Square at 90 Degrees | 12"
- Motor | 3 HP, 230/460V, 1Ph
- Coolant Pump Motor | 1/8 HP, 230/4660V, 3Ph
- Motor Phase | 3
- Motor Voltage | 230V/460V
- Overall Dimensions | 81"l x 42-1/2"w x 54-1/2"h
- Prewired Voltage | 230V
- Drive Mechanical | Variable Speed
- Net Weight | 1420 lbs
- Gross Weight | 1628 lbs
PLEASE NOTE, IMPORTANT INFORMATION:
- This item ships by truck. Please notify Mile-X Equipment if residential or liftgate is required. Please note that for residential deliveries someone must be there to accept delivery. When ordering the checkout cart will incorrectly state that this ships by UPS.
