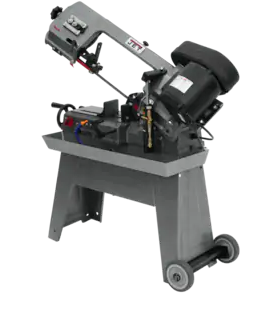

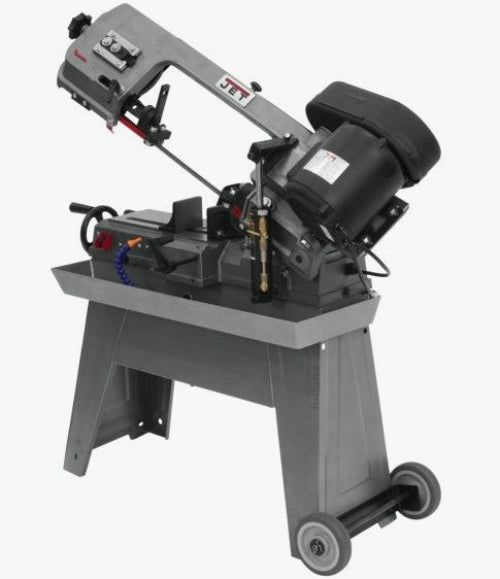

Jet J-3130, 5" x 8" Horizontal Bandsaw

Adjustable guides and hydraulic feed, steel worm gear and bronze drive gear, and auto shutoff at end of the cut are some of the features that makes this JET Hydraulic Band Saw a must for any professional machine shop. The built-in handle and wheels makes relocation within your workspace quick and easy.

Features:

• For added safety, the J-3130 follows strict guidelines and electrical requirements to be certified by CSA Group
• Blade drive is a steel, heat treated worm driving a bronze worm gear in an oil bath
• Adjustable blade guides with side eccentric shaft with ball bearings with rear-ball bearings
• Fully adjustable hydraulic downfeed system
• Wheels and handle for easy movement
• Adjustable material stop
• 1/2" Carbon Steel Blade

Specifications:

• Cutting Capacity | 5"w x 8"d
• Round at 90 Degrees | 5"
• Round at 45 Degrees | 4-1/2"
• Rectangle at 90 Degrees | 7-1/2" x 5"
• Rectangle at 45 Degrees | 4-1/2" x 5"
• Vise Swivels (Deg.) | 45°
• Blade Speeds (SFPM) | 85, 125, 200
• Blade Wheel Diameter | 7-1/2"
• Blade Length | 68-1/2"
• Blade Size | 1/2" x .025" x 68-1/2"
• Bed Height | 23-1/2"
• Motor | 1/2 HP, 115V, 1Ph
• Weight | 134 lbs
• Overall Dimensions | 37"l x 16"w x 37"h
• Drive | Belt Drive

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck. Please notify Mile-X Equipment if Liftgate and/or Residential Delivery is required. Please Note that for Residential deliveries, someone MUST be present at time of delivery.
• CAUTION | Be sure that the supporting structures and load attaching devices used in conjunction with this hoist provide an adequate safety factor to handle the rated load plus the weight of the equipment. If in doubt, consult a qualified structural engineer. This equipment is not to be used for lifting, supporting, or transporting people or lifting or supporting loads over people.
