Jet  |  SKU: JET756100

Jet JIW-45T 45-Ton Ironworker

$6,699.00
Contact Us

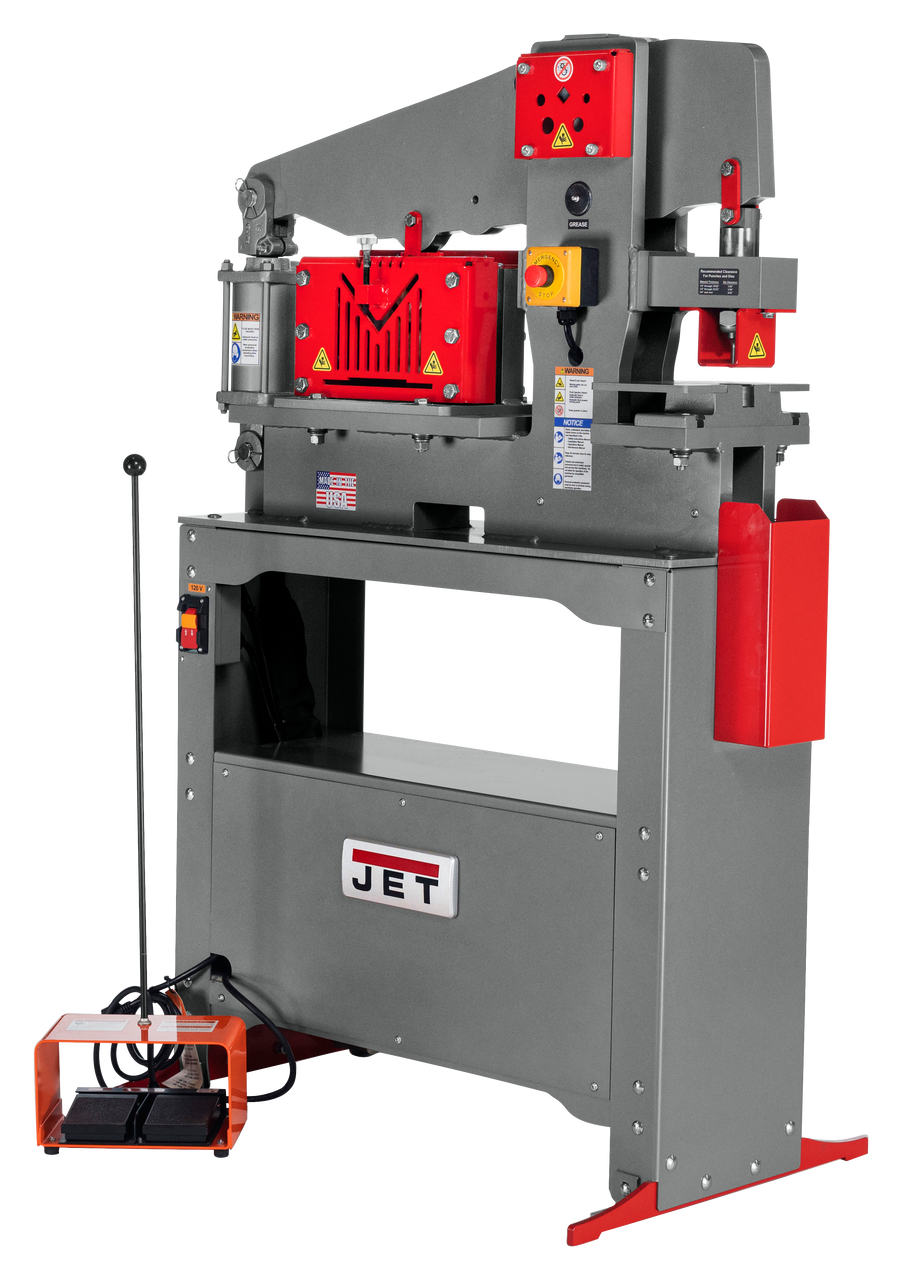

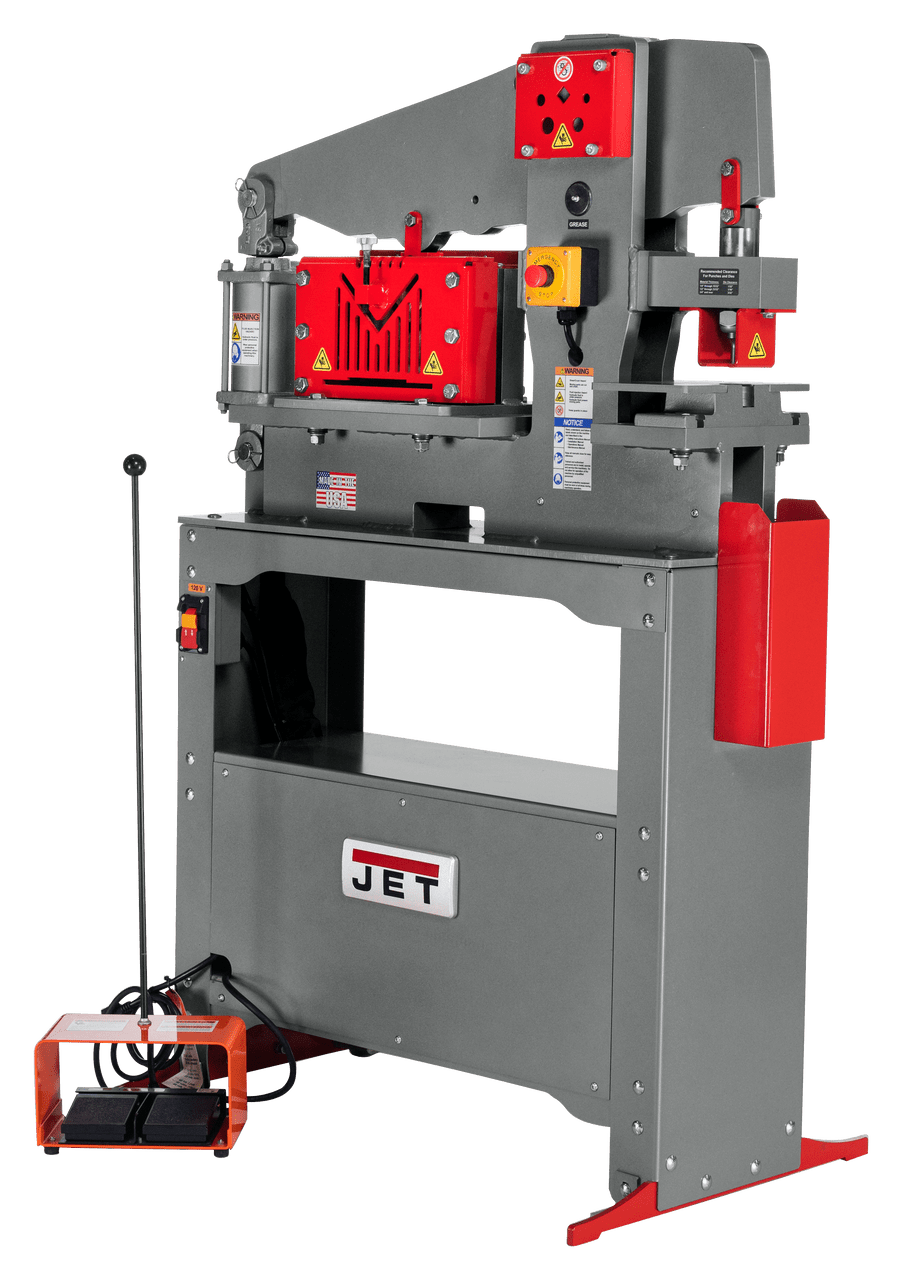

Jet 756100 JIW-45T 45-Ton Ironworker

The JET 45 Ton Ironworker delivers 4 workstations to provide solutions to users needs, with a Punch workstation, a combination Flat Bar Shear and Angle Shear, and an integrated 7-size Rod Shear. Small and with a compact footprint, this Ironworker also includes a Punch & Die Holder and Slug Receptacle to keep the users work area clean and organized. This sturdy and tough Ironworker is Made in the USA and back by the JET RED Assurance 2-Year warranty.

Features:

  • Four Workstations: Punch, Flat Bar Shear, Angle Shear & Rod Shear
  • Operates on 115V power allowing use almost anywhere
  • ANSI Compliant Guarding on the Angle & Rod Shears
  • E-stop with UL Listed compliant controls providing additional operator safety
  • Includes a Punch & Die Storage Tray able to hold up to 10 Punch & Die Sets
  • Convenient foot control with handle is easy to move between workstations
  • Optimized workstation heights reduce user fatigue
  • Slug receptacle collects all punch slugs keeping work area clear
  • Blades for the Flat Bar, Angle and Rod Shear are made of precision machined, high-quality tool steel with 2 cutting edges for extended life
  • Compatible with most Edwards Punch & Die Sets including round, square, oblong, hex, and metric

Specifications:

  • Angle Shear Max Capacity | 3" x 3" x 1/4"
  • Cylinder | 3-1/2" Ram
  • Flat Bar Shear Max Capacity | 1/4" x 8", 3/8" x 6"
  • Flat Bar Shear Rating | 45 ton
  • Flat Bar Shear Work Height | 40"
  • Motor Amps | 14
  • Motor | 1-1/2 HP, 115V, 1Ph
  • Motor Speed (RPM) | 3500
  • Overall Dimensions | 40"l x 24"w x 58"h
  • Overall Height | 58"
  • Punch Max Capacity | 1" diam In 1/2 mild steel
  • Punch Rating | 45 ton
  • Punch Stroke | 1-1/2"
  • Punch Work Height | 41"
  • Rating | 45 ton
  • Rod Shear Max Round | 3/4"
  • Rod Shear Max Square | 5/8"
  • Rod Shear Work Height | 54"
  • Shipping Dimensions | 51"l x 45"w x 64"h
  • Valve Pressure (PSI) | 2800
  • Weight | 698 lbs
  • Gross Weight | 802 lbs
  • Throat Depth | 5-3/4"
