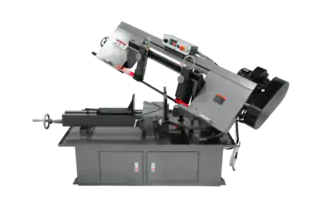

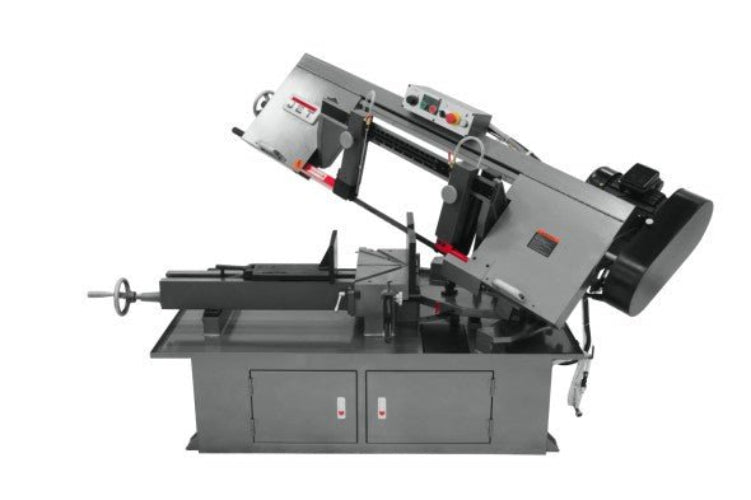

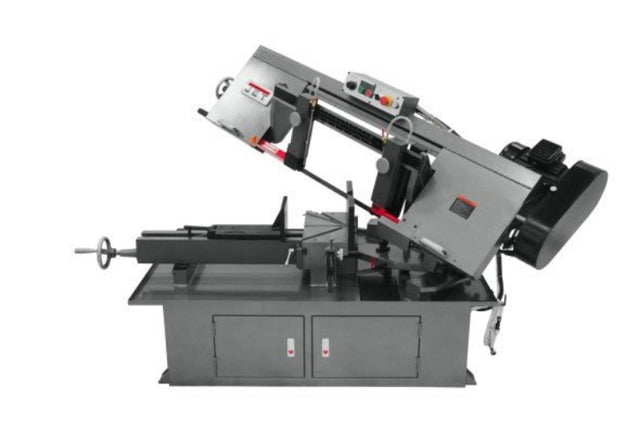

Jet MBS-1018-1 , 10" x 18" Horizontal Dual Mitering Bandsaw

JET Dual Mitering Horizontal bandsaws unique design head dual miters both left and right for quick angle cuts.

Features

• Heavy duty construction reduces vibration and deflection
• Built in, self propelled blade brush prevents chip build up in blade guides
• Blade tension gauge helps to ensure the blade is in the correct cutting position
• Magnetic starter for low voltage and lost phase protection
• Automatic blade breakage sensor detects accidental breakage and interrupts the power
• Power switch with safety key provents accidental start up
• CSA/CUS: Following strict guidelines and electrical requirements, this JET saw is CSA/CUS certifield
• Blade is fully guarded for Operator safety
• Automatic shut off switch stops the sawing process
• Hydraulic downfeed control is easily adjusted enabling feed rates to evolve with variable types of materials
• Intergrated ressurized wash hose for easy machine clean up
• Quick action vise on 10" saws
• STANDARD EQUIPEMENT
• Quick action vise on 10" saws
• Blade Tension Gauge
• Coolant System
• Adjustable material stop
• Intergrated ressurized wash hose for easy machine clean up

Specifications

• Cutting Capacity | 10"w x 18"d
• Round at 45 Degrees | 10"
• Round at 60 Degrees | 6"
• Round at 90 Degrees | 10"
• Rectangle at 45 Degrees | 10" x 12"
• Rectangle at 60 Degrees | 6" x 5"
• Rectangle at 90 Degrees | 10" x 17"
• Head Movement (Deg.) | '45R ,60L
• Blade Size | 1" x 0.032" x 144"
• Blade Wheel Diameter | 14-1/4"
• Blade Speed (SFPM) | 50, 125, 200, 275
• Bed Height | 22-1/2"
• Motor (HP) | 2 HP 230V, 1 Ph
• Overall Dimensions | 79"l x 36"w x 46"h
• Weight | 1144 lbs

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck. Please notify Mile-X Equipment if Liftgate and/or Residential Delivery is required. Please Note that for Residential deliveries, someone MUST be present at time of delivery.
• CAUTION | Be sure that the supporting structures and load attaching devices used in conjunction with this hoist provide an adequate safety factor to handle the rated load plus the weight of the equipment. If in doubt, consult a qualified structural engineer. This equipment is not to be used for lifting, supporting, or transporting people or lifting or supporting loads over people.
