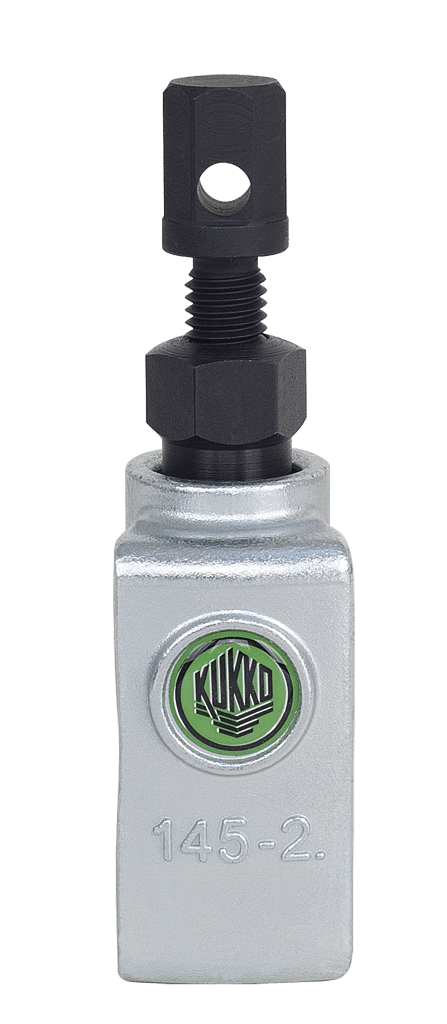

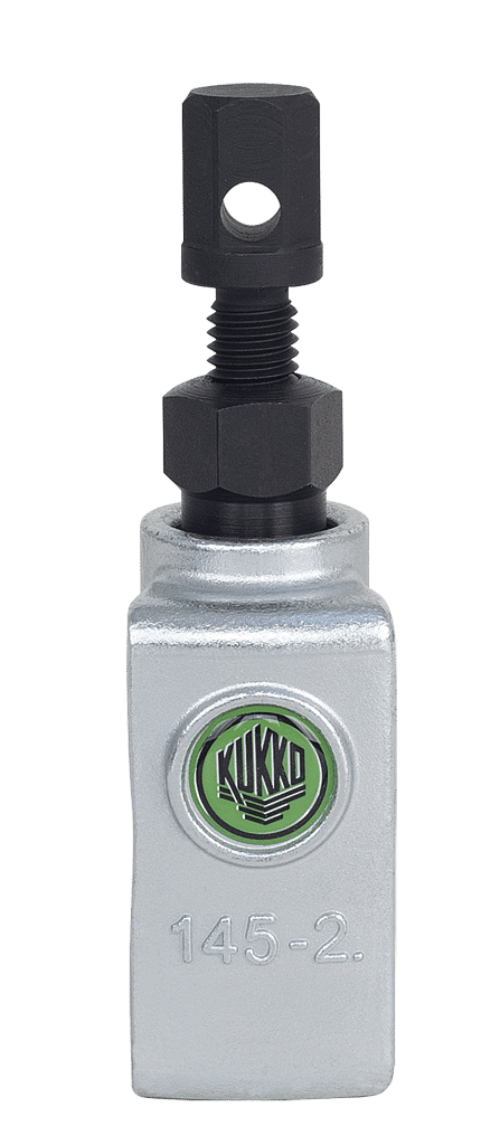

Kukko 145-2 Spreader for shock absorber mountings and steering parts

The Kukko 145-2 Spreader is used for the safe and completely risk-free spreading of shock absorber mountings and steering parts.

Description:

• Specifically suitable for carefully widening clamps on aluminium chassis.
• For example, the spreader has a fixed hinge and is firmly attached to a control arm after installation so that the assembly and disassembly of the strut can be accomplished with no additional effort in one job step.
• It is impossible for the toll to slip thanks to the screw connection on the control arm or supporting rod.
• The design facilitates compliance with the expansion force specified by the automotive industry by means of a ball bearing mounted nut.
• Mechanical pressure screw.
• Milled thread treated with special coating.

Advantage:

• In particular, for very close and difficult space conditions, the small and maneuverable tool is a problem solver in every workshop.
• The use of chisels, screwdrivers, or complicated special solutions is not necessary.

Specifications:

How it works:

• Attach expansion element, e.g. on the support rod.
• Screw in the spindle approx.15 mm.
• Loosely tighten the nut.
• Spread only as far as necessary to remove the part or as prescribed by the manufacturer.
• The control arm can now be removed.
• The thread of the strut and steering assembly parts must be suitable for the correct operation of the spreader.

Also included in:

• WT-014 Puller product range - automotive - chassis suspension

KUKKO quality standards:

• Quality made in Germany.
• Strong design, high performance and long service life.
• Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom IV).
• Safety label to ensure protection of intellectual property.

PLEASE NOTE, IMPORTANT INFORMATION:

• MADE IN GERMANY
