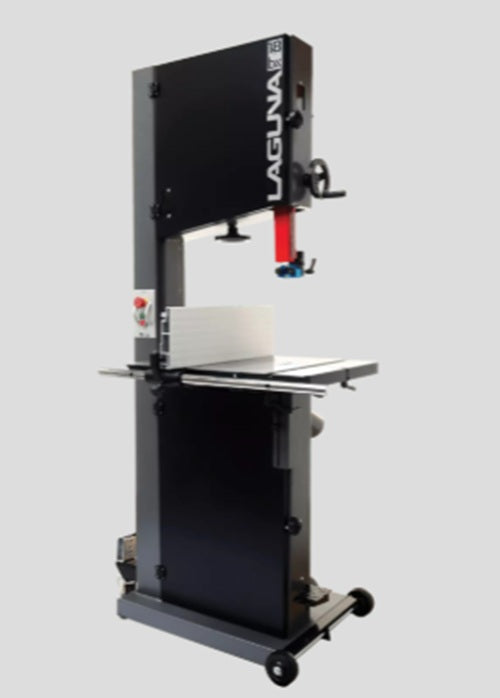

Laguna 18|BX Classic Bandsaw

The 18|BX Bandsaw follows in the traditions of high-performance and reliability established by the widely-used Laguna Tools 14|12 and 14|bx models. The 18|bx is built around a 3HP, 220V motor and 145″ (368 cm) blade for consistent results, cut-after-cut, regardless of wood material.

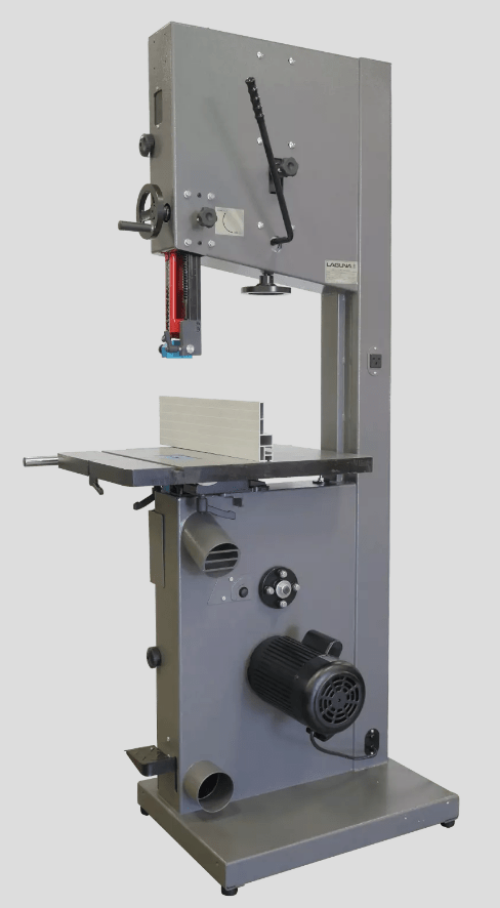

Shown with optional Blade, Lighting and Mobility Kit

Features:

• TEFC Motor/9.8 Amp./6 ft. cord NEMA 6-15P Plug 220V Outlet on Back for Optional Light
• Quick Release Tension
• 10-Point Laguna Ceramic Guides
• Magnetic Starter
• Dual Light Mount
• Worm Gear Rack & Pinion
• Cast Iron Wheels
• Disc Brake with Micro Switch
• Anodized Insert w/Micro Adjustment
• Magnetic Blade Guard
• Magnetic Blade Tension Guide
• Urethane Single Piece Snap-on Tire

Specifications:

• Part Number | MBAND14BX220-250
• Motor | 3HP, 220V, 1 Ph. 12 Amp.
• Throat | 18″
• Recommended Breaker | 20-30 Amp.
• Min-Max Blade Width | 1/8” - 1-1/4"
• Resaw Capacity | 16"
• Blade Length | 145"
• Hi/Low Aluminum Fence: 22-3/4” x 7-1/4” x 1-3/4”
• Table Tilt | -6°, +45°
• Cast Table Size | 20” x 26"
• Massive Cast Trunnion | 8" x 13"
• Dust Ports | 4 x 2"
• Table Height | 38"
• Overall Height | 77-3/4"
• Footprint | 36" x 30"
• Weight (Net/Ship) | 410/460 Lbs.
