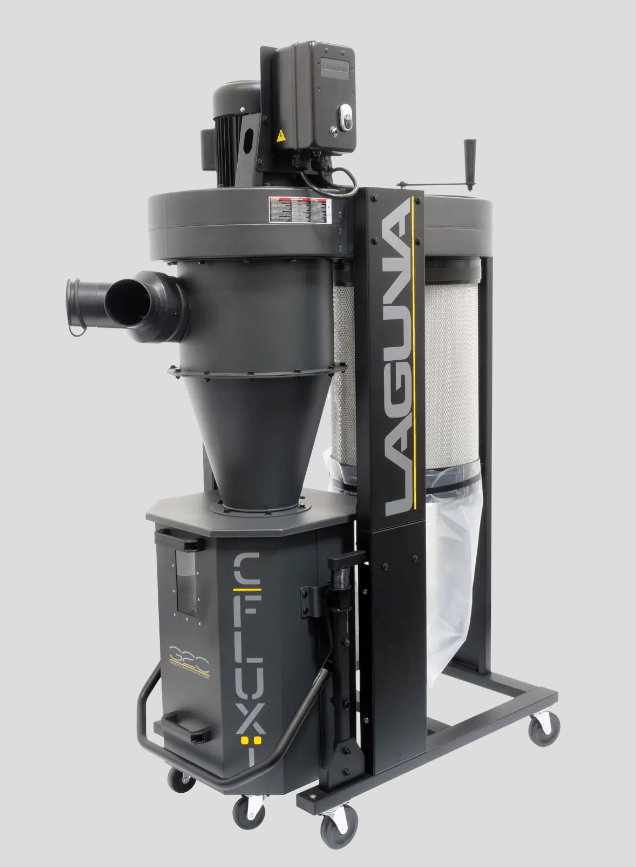

Laguna C|Flux: 1 Classic Dust Collector

PROMO ENDS 10/30/24

For the popular C|Flux cyclone dust collectors, we’ve kept the user-friendly aspects of the previous generation while adding smart new features to improve the user experience. Among the upgrades is a dual-paddle filter cleaning design, and a max level indicator to increase filter longevity. The iconic octagonal drum grows to an impressive 46-gallon capacity on the C|Flux 2 and 3 models, and the newly redesigned 3-piece drum construction requires far fewer joints and fasteners cutting assembly time, while the locking casters provide additional stability.

Features:

• 25 Gallon Octagon Drum
• 6ft. 3 Wire Cord with No Plug
• L-Shaped dual mount motor bracket reduces vibration with oversized vertical bracket
• One piece main plenum allows direct airflow and helps reduce resistance
• Radial steel fan balanced to ISO 1940 standards
• Splitter inlet & sealed cap made of rubber, not hard plastic
• Filer surface area up to 120% larger than competitors (canister paper made in Denmark)
• Ingenious lift system eliminates flex hose, patented lift design creates strong seal
• High quality swiveling casters, 4" dia (2 locking for main base) and 3" dia drum casters
• Newly designed dual paddles provides twice the cleaning
• Filter cleaning handle

Specifications:

• Part Number | MDCCF15110
• Motor | 1.5HP, 110V, 1PH, 60Hz
• Full Load Amperage | 18.8 Amps (110V)
• RPM | 3450
• Switch | Magnetic On/Off
• Hand-held Remote Control | High Frequency
• Inlet CFM | 1314 CFM
• Shop Setting CFM | 900 CFM
• Max Static Pressure (inches of water) | 10.1"
• Inlet Diameter | 6”
• Inlet Splitter | 2” x 4” Ports
• Impeller | 13.5” Steel Radial Fin
• Drum Capacity | 32 Gal.
• Bag Hold-Down | Metal Insert
• Canister Filter Type | 1 Micron
• Filtration Efficiency | 0.2-2 micron @ 99.97%
• MERV Rating | 12
• Canister Cleaning | Manual Crank 360°
• Decibel Reading | 82 dBA (@9.8ft)
• Dimensions | 43" x 24" x 69"
• Weight (Net/Ship) | 232/287 Lbs.

*220V Operation requires purchase of additional parts.
