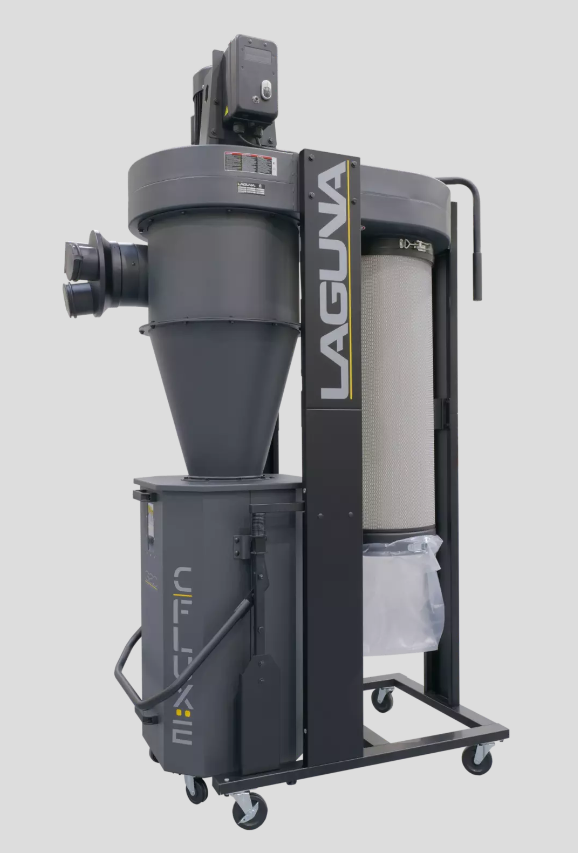

Laguna C|Flux: 2 Classic Dust Collector

For the popular C|Flux cyclone dust collectors, we’ve kept the user-friendly aspects of the previous generation while adding smart new features to improve the user experience. Among the upgrades is a dual-paddle filter cleaning design, and a max level indicator to increase filter longevity.  The iconic octagonal drum grows to an impressive 46-gallon capacity on the C|Flux 2 and 3 models, and the newly redesigned 3-piece drum construction requires far fewer joints and fasteners cutting assembly time, while the locking casters provide additional stability.

Featues:

• 46 Gallon Octagon Drum
• 6ft. 3 Wire Cord with No Plug
• L-Shaped dual mount motor bracket reduces vibration with oversized vertical bracket
• One piece main plenum allows direct airflow and helps reduce resistance
• Radial steel fan balanced to ISO 1940 standards
• Splitter inlet & sealed cap made of rubber, not hard plastic - C|Flux 2 & 3 have metal inlet splitter
• Filer surface area up to 120% larger than competitors (canister paper made in Denmark)
• Ingenious lift system eliminates flex hose, patented lift design creates strong seal
• High quality swiveling casters, 4" dia (2 locking for main base) and 3" dia drum casters
• Newly designed dual paddles provides twice the cleaning
• Filter cleaning handle

Specifications:

• Part Number | MDCCF22201
• Motor | 2HP, 220V, 1PH, 60Hz, 14 Amps
• Recommended Breaker Size | 20 Amps
• RPM | 3450
• Switch | Magnetic On/Off
• Hand-held Remote Control | High Frequency
• Inlet CFM | 1740 CFM
• Shop Setting CFM | 1166 CFM
• Max Static Pressure (inches of water) | 9.3"
• Inlet Diameter | 8”
• Inlet Splitter | 2” x 4” Ports
• Impeller | 14.5" Steel Radial Fin
• Drum Capacity | 46 Gal.
• Bag Hold-Down | Metal Insert
• Canister Filter Type | 1 Micron
• Filtration Efficiency | 0.2-2 micron @ 99.97%
• MERV Rating | 12
• Canister Cleaning | Manual Crank 270°
• Decibel Reading | 88 d B(A) (@9.8ft)
• Dimensions | 48" x 28" x 89"
• Weight (Net/Ship) | 301/377 Lbs.
