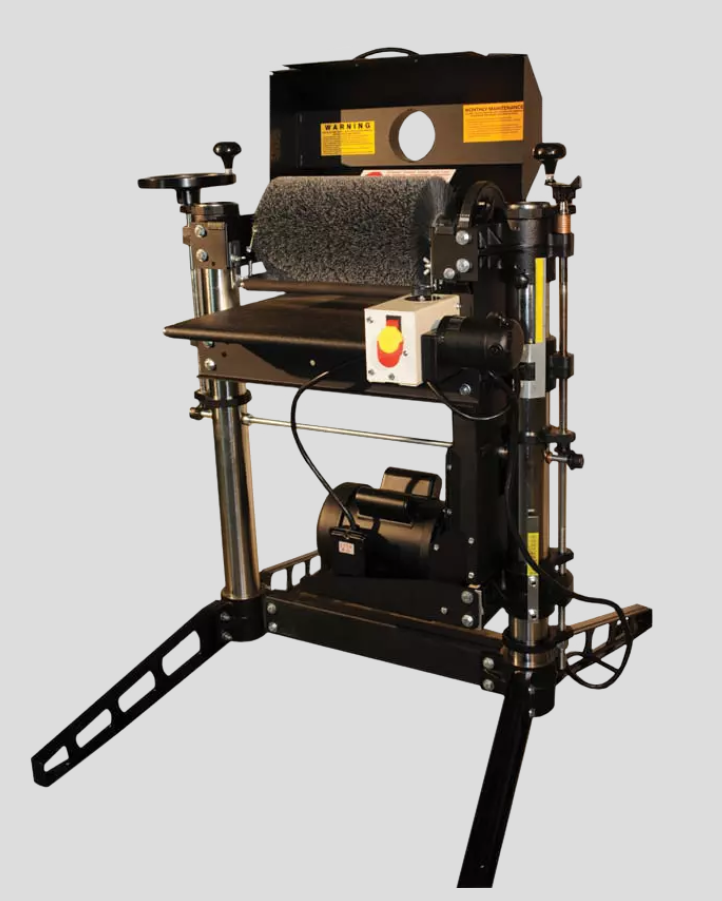

Laguna Classic 13" Combination Brush/Drum Sander

The 13″ Combination Brush/Drum is the answer to your production bottleneck. Developed with moldings in mind, this versatile sander can tackle every step in your finishing process, from sanding raw wood to sanding in between coats of stain or primer. Read about other applications below. This model features a 1-3/4 HP motor, and can handle stock up to 4″ thick, or as thin as 1/32″. It can also be equipped with an optional sanding drum for surface sanding.

Features:

• Infinitely variable brush speed and conveyor feed rate
• Optional Drum for surface sanding
• Quickly change brush heads or abrasive loadings
• Fully adjustable tension rollers prevent stock slippage
• Reinforced steel conveyor bed with a poly conveyor belt
• Precision height adjustment
• Bristle Contact Gauge included

Specifications:

• Maximum Sanding Width | 13″
• Minimum Sanding Length | 9″
• Maximum Sanding Thickness | 4″, varies with drum/brush style
• Minimum Sanding Thickness | 1/32″
• Dimensions | 42″W x 35″L x 44″H
• Drum | 5″ x 13″ Extruded Aluminum
• Brush | 6-8″ Typical Diameter
• Speed | Ranged Variable RPM, 400-1200
• Dust Hood | 1-4″ Port, Hinged At Back, 600 CFM Min. Recommended
• Conveyor Motor | 43 in.-lb. Torque, Ranged Variable, 0-10 FPM
• Drive Motor (TEFC) | 1-¾ HP
• Power Requirements | 110 Volt, 20 Amp Service
• Shipping Weight | 300 lbs. (Approx, Varies Based On How Equipped)
• Shipping Dimensions | 34-½″L x 45-½″W x 46-½″H
