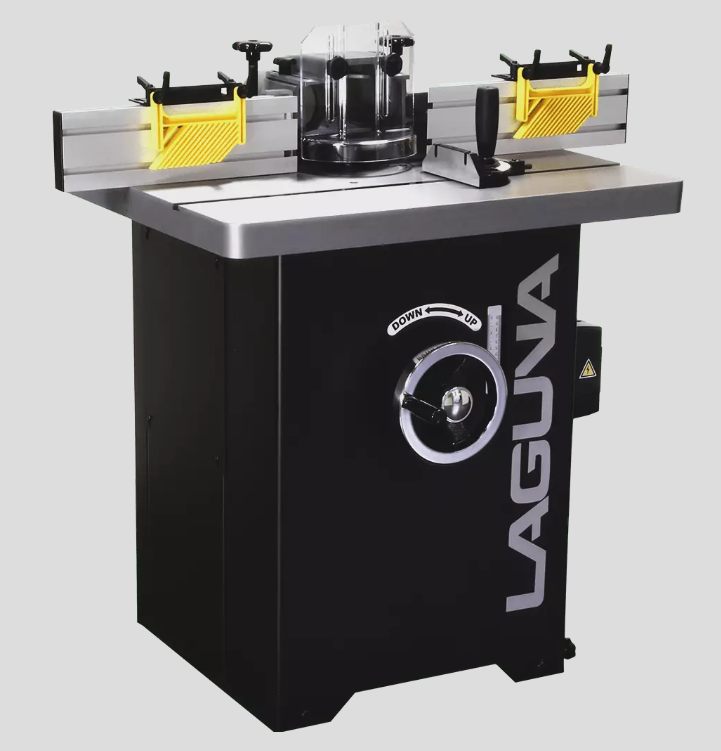

Laguna Classic Compact Shaper 4 Speed

The Compact Shaper from Laguna is already regarded as best in class. Impressive precision fence and wide-range RPM make it a versatile investment for any pro. The fit and finish on this world class machine is incredible. You will be hard pressed to find a better value than the Compact Shaper: 4 speeds, generous sized table, wheels built right in.Easy spindle lock makes tool changes a snap.One of the most impressive features is the speed change.A simple pull of a handle compresses the distance from the spindle to the pulley, changing speeds along the way.Another outstanding detail is the flat poly-groove belt which transfers more power with less vibration; something you won’t find in this price range anywhere else.

Specifications:

• Motor | 3HP, 1 Phase, 220 Volt 60 Hz
• Table Size |32″ x 26-1/2″
• Spindle Travel | 4″
• Spindle Sizes | 3/4″ & 1-1/4″ (Incl.)
• Router Collets | 1/4″ & 1/2″ (Incl.)
• Capacity Under Nut | 4″ (1-¼″ Spindle)
• Spindle Speeds | 4000, 6000, 8000, 10000 RPM
• Forward/Reverse | Yes
• Table Opening Diameter | 6-¼″
• Table Insert Opening Diameter | 2-½″, 4-5/16″
• Rotation | Forward/Reverse
• Table T-Slot | Yes
• Fence Size | 4-13/16″ x 16″
• Drive Belt | Flat Poly-Groove
• Table Height From Floor | 34″
• Dust Port Diameter | 4″
• Micro Adjustment On Fence | Yes
• Wheel System | Built In
• Weight (Net/Ship) | 450/500 lbs
• Shipping Dimensions | 40″L x 30″W x 42″H
