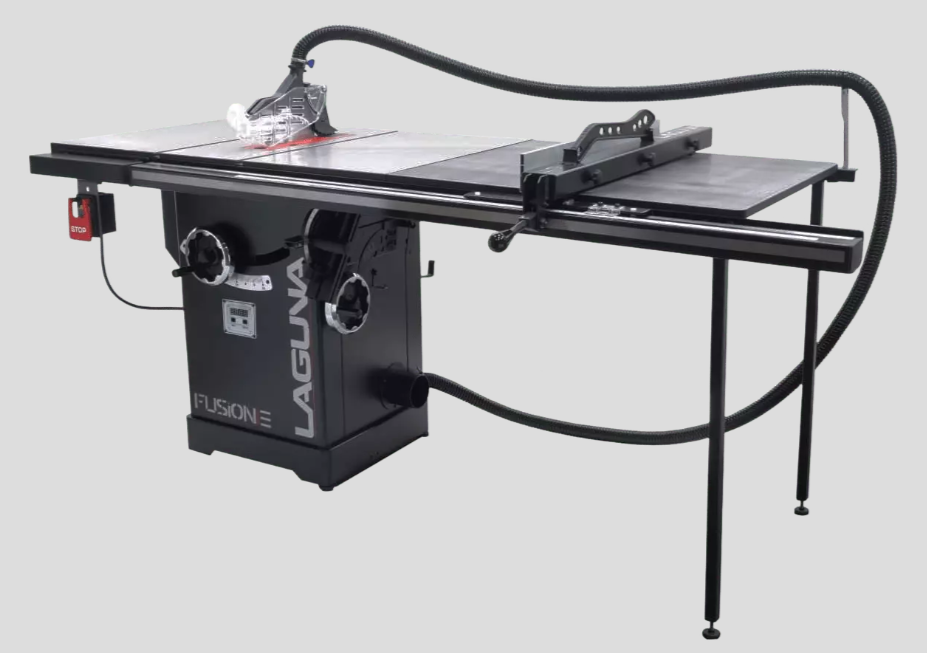

Laguna Classic F3 Fusion Tablesaw - 52"

The new Laguna Fusion line was developed for demanding woodworkers. Designed around quality components with an emphasis on superior dust collection enhanced by utilizing over/under collection & sealed bottoms. All models are equipped with a precision fence, plus the F2 & F3 feature the Hi/Low aluminum extrusion known from European saws. The hybrid fence on the Laguna Fusion offers the best of European and American fence features. This fence is NOT designed to be used on the LEFT side of the blade! Rail or tube on the LEFT side is provided only to make the ON/OFF switch position. Permanently lubricated bearings & Acme screws are part of the internal DNA. Fusion 3 is the true successor to the original Fusion Table Saw. The task was simple: make a saw that was more refined, more precise, and cleaner.

Features:

• 52″ Rip Capacity
• 3HP TEFC Motor
• 220V, Single-Phase, 60Hz Power Requirement
• Industrial Cabinet, Fence & Trunnions
• Included Tools, Tables & Integrated Tool Storage
• Industrial 14 Gauge Cabinet
• Accessory Tables (Outfeed & Rip)
• Industrial Fence Rail
• Industrial Fusion Fence
• Premium Electrical & Hardware Components
• Premium Miter Gauge
• Cast Iron Fusion Trunnions
• Cabinet Mounted Arbor
• Cast Iron Table & Wings
• European Hi-Lo Fence
• Premium Zero Clearance Throat Plate
• Fusion Hi-Lo Dust Collection
• Maginetic Contractor Switch
• Quick-Release Blade Guard & Spreader
• Riving Knife Included
• Push Stick Included
• Miter Gauge Included
• Blade Changing Tool Included
• 10 x 40T Carbide-Tipped Blade Included
• Premium Arbor & Motor Bearing
• Mobility Built Into Cabinet

Specifications:

• Part Number | MTSF3362203-0130
• Motor | 3HP, 230V, 1-Phase, 3450 RPM
• Amp | 14.8 FLA
• Recommended Minimum Breaker | 30 AMP
• Rip Capacity | 52"
• Max. Depth of Cut @ 90° | 3-1/8"
• Max. Depth of Cut @ 45° | 2-1/8"
• Max Dado Capacity | 8" x 13/16"
• Blade Diameter | 10"
• Blade Tilt | 0 – 45° Left
• Mitre Slots | 3/4” x 3/8” T-shape Slot
• Arbor Size | 5/8"
• Arbor Speed | 4500 RPM
• Dust Collection | 4" Outlet, Min 550 CFM Recommended
• Overall Dimension | 56-1/8”L x 68-7/8”W x 42-7/8"H
• Weight (Net/Ship) | 422/523 Lbs.
