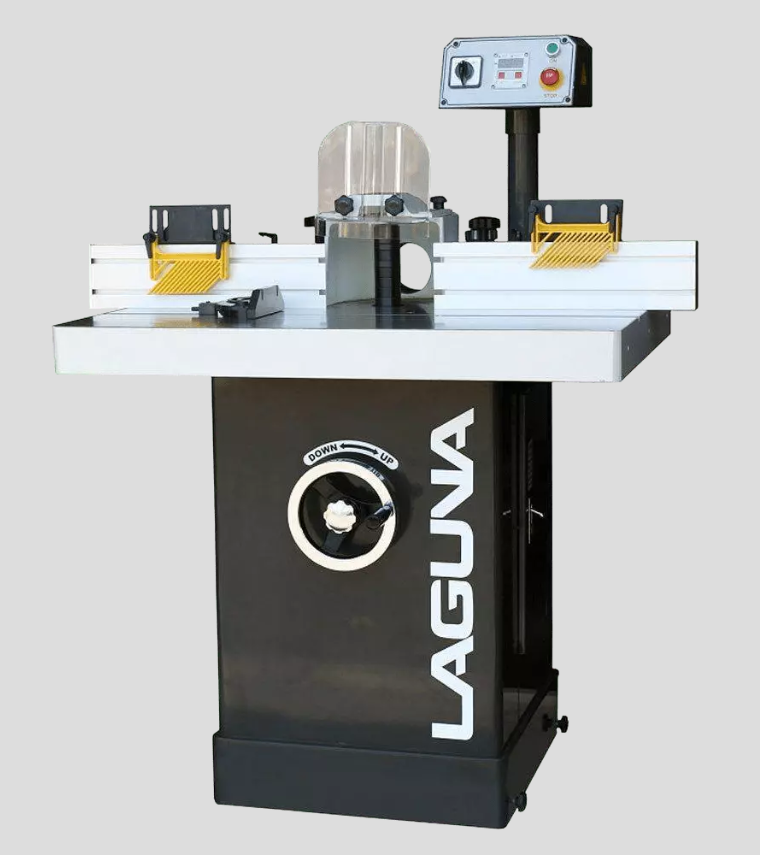

Laguna Classic Pro Shaper 7.5HP 3 Phase

The Laguna Pro Shaper combines a precision shaper with features normally found only in much higher priced machines. The fit and finish on this machine is top notch and even includes a wheel kit built right into the base.The Laguna Pro Shaper is designed to give you years of trouble free performance without breaking the bank. The table measures an impressive 31″ x 39″ and is predrilled to accept most power feeders. The fence has a precision micro-adjustment that is aligned by a solid steel bar. Each full revolution of the turn handle gives an exact 1/16″ adjustment to the fence. Inside you will find a heavy-duty motor available in either 5HP 220 volt 1 phase or 7.5 HP 220 volt 3 phase. Each offers 3 speeds with a unique quick change poly-groove belt system rather than the traditional V-belt. Digital readout is standard for the spindle height. The Pro Shaper is also equipped with a reversing switch and all controls are mounted with an easy access panel.

Specifications:

• Motor | 7.5HP 3 Phase 220V
• Table size | 39-5/16″ x 31-7/16″ x 3-1/2″
• Spindle travel | 4″
• Spindle Sizes | 3/4″ and 1-1/4″
• Capacity Under Nut | 6″(For 1-¼″) and 4″(For ¾″)
• Router Collets | ¼″ and ½″
• Spindle Speeds | 5000, 7000, 10000 RPM
• Table Opening Diameter | 7-5/16″
• Digital Readout | Standard
• Direction | Forward/Reversing Switch
• Fence | Micro Adjustment
• Weight (Net/Ship) | 640/720 lbs
• Shipping Dimensions | 43″L x 43″W x 60″H
