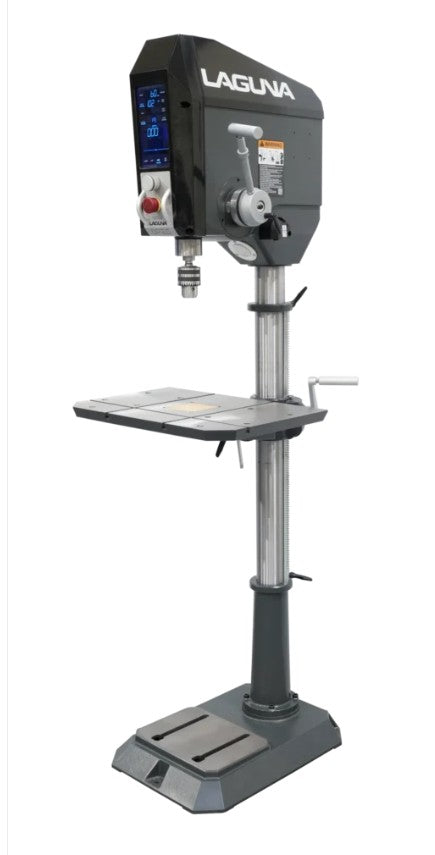

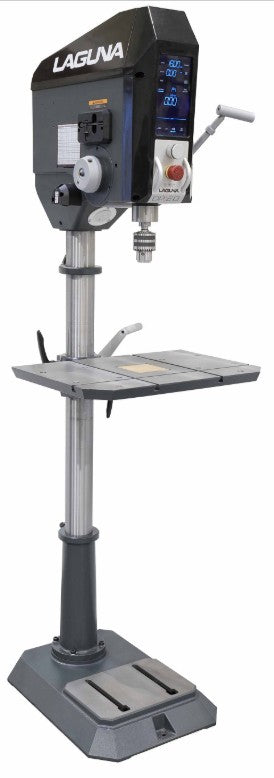

Laguna DP-20 Floor Drill Press

Introducing the new DP20: Where Industrial Power Meets Modern Design. The DP20 is the latest innovation in our classic line, engineered for industrial-grade performance. At its heart is a robust 1.5 hp Pulse Width Modulation (PWM) motor, delivering constant torque across a full speed range of 60 to 3600 RPM, making it perfect for the most demanding applications in wood, metal, plastics, and other material applications. The state-of-the-art Touch Screen Smart Panel, featuring a unique blue LCD digital readout, provides real-time RPM, Load, and Quill Depth, enhancing functionality and aesthetics. The large 3-3/4″ x 6-7/8″ touch screen is a standout feature among drill presses in this range, surpassing competitors with its size and touch capability.

Features:

• Touch Screen Smart Panel: Intuitive interface with blue LCD digital readout.

• 1.5 hp PWM Motor: Constant torque with forward and reverse functions.

• Auto-Start Function: Starts and stops with the movement of the quill.

• Precision Depth Control: Electronic depth setting.

Specifications:

• Model Number | MDP20-1

• Voltage | 110 - 120V AC

• Power Transfer | Poly-groove drive belt

• Motor | DC Brushed / PWM (Pulse Width Modulation)

• Spindle Taper | MT2

• Frequency | 60 Hz

• Speed Range | Electronic Variable 60 - 3600 RPM Forward / Reverse

• Machine Control | LCD Touch Screen Smart Panel

• Swing | 20

• Weight | Net wt 304 lbs / Gross wt 326 lbs

• Quill | 6" Travel - 2.6" Diameter

• Column Diameter | 3.15"

• Chuck Capacity | 5/64 - 5/8"

• Table | 15" x 22", 3 T-slots, 10 Clamp Holes

• Table Movement | +/- 90 Degree Tilt 360 Degree Swivel around column

• Base Size | 22.83" x 16.92"

• Spindle To Table | 30" Max

• Spindle To Base | 49.5" Max

• Overall Height | 72.25" x

• Packing Dimensions | 72.5" x 28.5" x 20" (1840 x 725 x 406mm)

• Memory Settings | 5 Memory Settings
