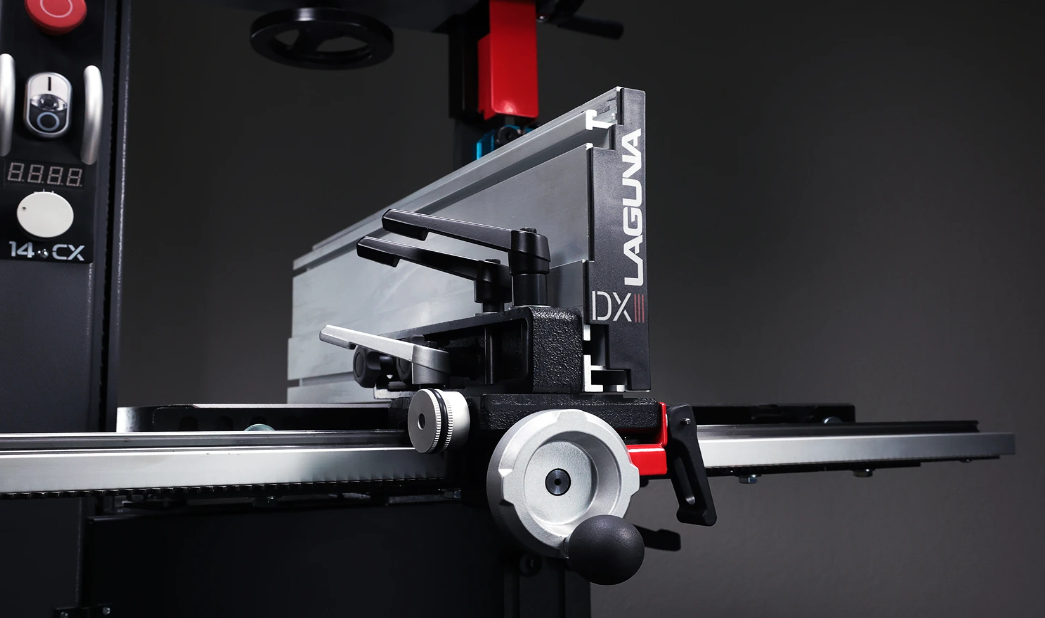

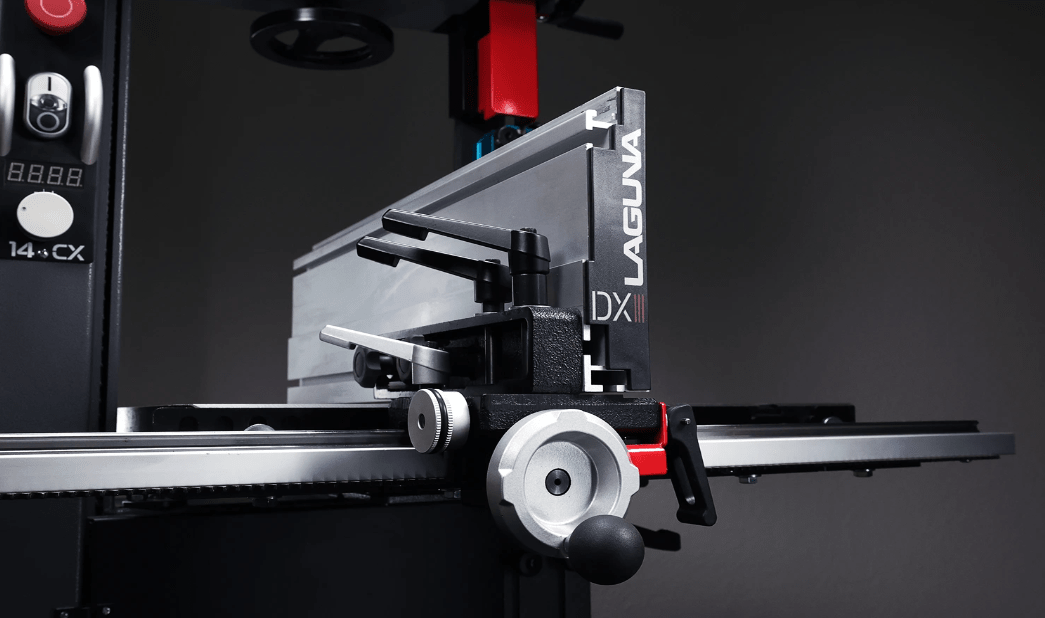

Laguna DX3 DriftMaster Fence System

Introducing a one-of-a-kind fence system, the all-new DX3 DriftMaster Fence. The DX3 comes equipped with a robust Linear Motion Guide System, which is maneuvered by a Precision Handwheel, allowing for unparalleled accuracy. In addition, the DX3’s micro adjustment knob makes it easier, quicker, and requires no tools to set the fence drift adjustment. Crafted for professionals, this multi-mode fence redefines the resawing experience. Unleash innovation and embrace precision with the DX3 DriftMaster.

Fits the Laguna 14|12, 14|BX, 14CX, 18/BX, 18/CX and VDL-18 vertical bandsaws.

Benefits:

• Precision Joinery
• Drift-free cuts
• Repeatable accuracy
• Higher accuracy
• Higher stock yield/less waste
• Quicker set-up

Features:

• The world's only Multi-Mode Precision Bandsaw Fence
• Tool-free Drift Adjustment for exacting cuts
• Fits most bandsaws from 14"-18"
• Universal mounting bracket makes installation quick and easy
• Dual mode functionality:
• Precision handwheel movements for repeated and incremental cuts
• Manual movements with lock
• Hi/Low resaw fence retains accuracy when changing from high to low position
• Linear guide rail provides smooth, stable operation
• Turns bandsaws into a precision cutting machine
• Reversable manual tape scale included (In/mm)
• Color coded handles: Red - mode selection, Black - Fence lock, Grey - manual lock

Specifications:

• Fence Height | 7-1/4” at high position, 43/64” at low position
• Fence Length | 22-3/4”
• Full Fence Travel | 26” in total potential. The actual travel of the fence at left and right of the blade depends on bandsaw design.
• Fence Travel per handle rotation | 1/4” (6.28mm)
• Fence Tilt | 10° left to 10° right
• Net Weight | 27 lbs. (12.3 kg.)
• Gross Weight | 30.4 lbs. (13.8 kg.)
• Package Dimensions | 33-7/8"l x 12-1/4"w x 10-5/8”h (860 x 310 x 270 mm)
