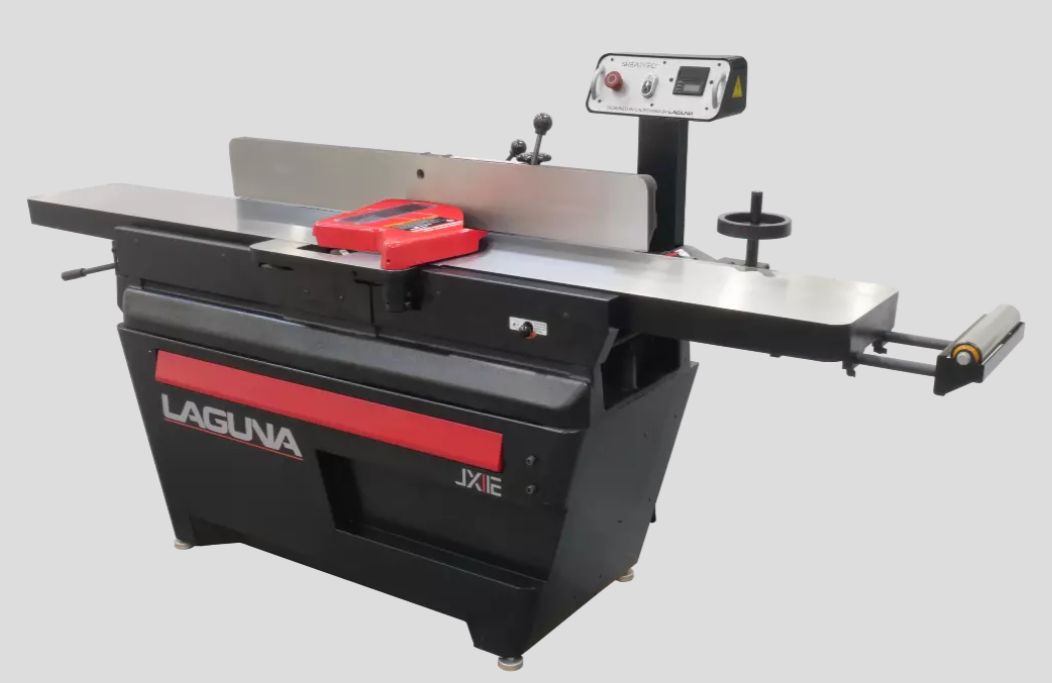

Laguna JX|12 ShearTec: II Jointer

The Laguna JX|12 ShearTec II is loaded with premium features to make jointing safer and more enjoyable.

Features:

• Parallelogram Table Adjustments – Table depth adjustments travel along an arc to keep the same distance to the cutterhead through its travel
• Emergency “Knee-Stop” – The new knee stop uses a body-length bar at knee height to shut off the JX jointer. This important safety feature allows the machine operator to stop the machine quickly at any position along the front of the machine while keeping hands on the workpiece.
• New Ergonomic Machine Body – The new JX Series machine body has been redesigned with a “toe-kick” to allow the user to position themself closer to the machine tables and to move safer and easier along the length of the machine
• In-feed Support Roller – Infeed tables are now fitted with pull-out support roller to help support longer materials
• ShearTec II Cutterhead – The ShearTec II cuttherhead comes as standard equipment on JX|12 ShearTec II Jointer.
• Solid Cast Iron Fence – 5-3/4″ x 48″, tilt angle adjust +/- 45/90 degrees
• Worklight Ready – Built-in outlet and bracket for optional LED work light
• Power-feeder Ready – Included bracket to mount optional power-feeder
• Plenty Of Power – 220V 5HP, 1 Phase Motor

Specifications:

• Motor | 220V 5HP 1 Phase 60hz/23 Amp
• CSA | Yes
• Bed Size | 12″ x 88″
• Infeed Table Pull-Out Extension | 10″
• Rabbetting Capacity | 3/4″
• Fence Size | 5-3/4″ x 47″ Cast-Iron Fence
• Fence Tilt | ±45/90°
• Max. Depth Of Cut | 1/8″
• Table Height From Floor | 32″
• Safety Bar Shut-Off | Yes
• Bracket To Mount Light | Yes
• 110V Outlet For Light | Yes
• Bracket To Mount Feeder | Yes
• Dust Port Diameter | 6″
• Cord Or Plug Supplied | No
• Cutterhead Insert # | 66 x 4-Sided Carbide, 6 Row
• Cutterhead RPM | 5500
• Cutterhead Diameter | 3-7/8″
• Bed Adjustment | Parallelogram
• Dimensions Set Up (Approx) | 92″ x 40″
• Base Footprint Dimensions | 43″ x 20-1/2″
• Dimensions Shipping | 91″ x 32″ x 45″
• Net/Ship Weight | 876/1043 Lbs. (1 Box)
