Laguna JX|8 QuadTec: II Jointer

PROMO END 10/30/24

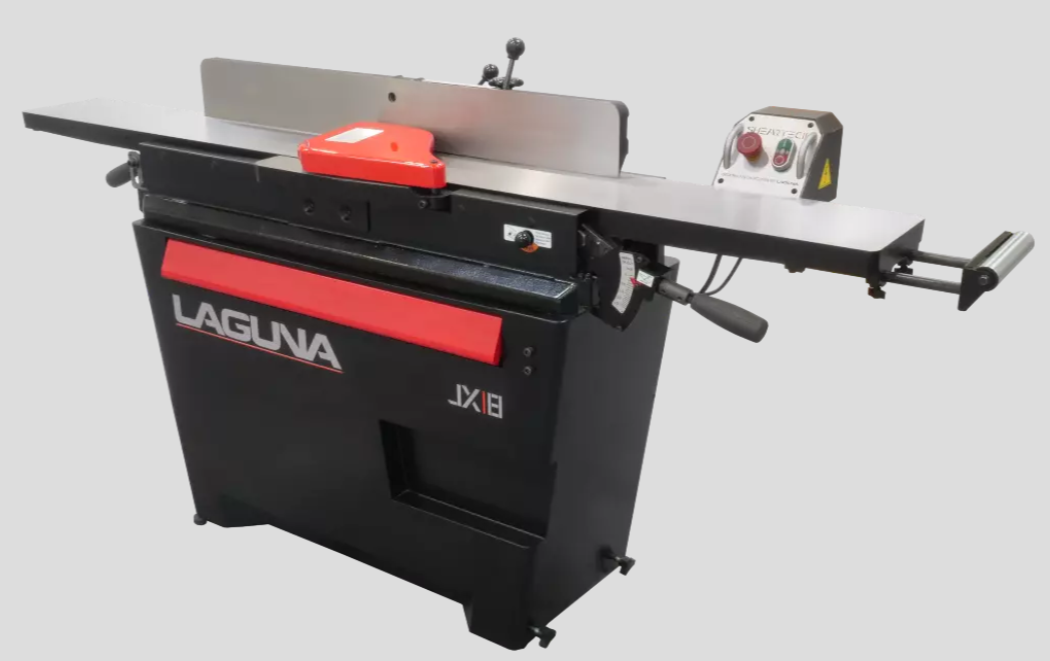

The Laguna JX|8 QuadTec I is loaded with highly desirable features to make jointing safer and more enjoyable. The JX|8 is available in 2 versions. This version is the 110 Volt 1.75 HP version.

Features:

• Parallelogram Table Adjustments – Table depth adjustments travel along an arc to keep the same distance to the cutterhead through its travel
• Emergency “Knee-Stop” – The new knee stop uses a body-length bar at knee height to shut off the JX jointer. This important safety feature allows the machine operator to stop the machine quickly at any position along the front of the machine while keeping hands on the workpiece
• New Ergonomic Machine Body – The new JX Series machine body has been redesigned with a “toe-kick” to allow the user to position themself closer to the machine tables and to move safer and easier along the length of the machine
• In-feed Support Roller – Infeed tables are now fitted with pull-out support roller to help support longer materials
• QuadTec II Cutterhead – The upgraded all-new QuadTec II cuttherhead comes as standard equipment on the new JX-8 QuadTec II The QuadTec II produces an amazing surface finish on all woods including difficult hardwoods. The QuadTec II uses 4-sided carbide insert knives that are quieter and much more durable compared to straight HSS knives. The 4-sided knives can be rotated for a new cutting edge without the need for a knife setting jig
• Built-In Wheels – No need to purchase a separate mobility kit
• Cast-Iron Tables and Fence

Specifications:

• Motor | 110V 1.75HP 1 Phase 60hz/15 Amp
• CSA | Yes
• Bed Size | 8″ x 72″
• Infeed Table Pull-Out Extension | 8″
• Rabbetting Capacity | 1/2″
• Fence Size | 38″ x 4-¾″ Cast Iron
• Fence Tilt | ±45/90°
• Max. Depth Of Cut | 1/8″
• Table Height From Floor | 31″
• Safety Bar Shut-Off | Yes
• Bracket To Mount Light | No
• 110V Outlet For Light | No
• Bracket To Mount Feeder | No
• Dust Port Diameter | 4″
• Plug (NEMA 5-15P) | Yes
• Insert Knives | 20 x 4-Sided Carbide, 4-Row
• Cutterhead RPM | 5500
• Cutterhead Diameter | 3-1/8″
• Bed Adjustment | Parallelogram
• Dimensions Set Up (Approx) | 75-1/2″ x 26-1/2″
• Base Footprint Dimensions | 32-1/2″ x 15-1/4″
• Shipping Dimensions | 40″ x 18″ x 26″ – 139 Lbs., 82″ x 25″ x 17″ – 319 Lbs. (2 Boxes)
