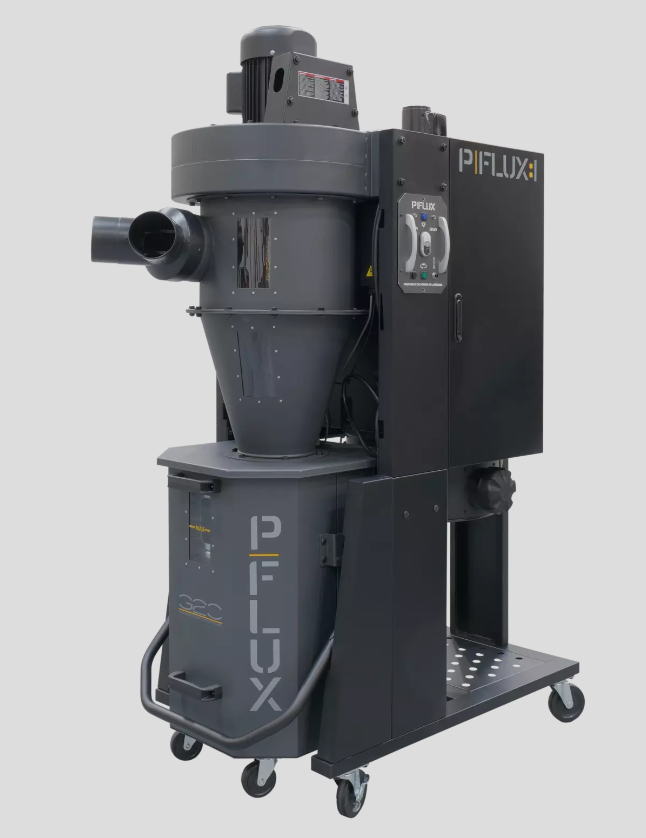

Laguna P|Flux: 1 Classic Dust Collector

PROMO END 10/30/24

The P|Flux series gets a host of exciting new upgrades including an auto-cleaning feature standard on all models in this line.  The auto-clean conveniently activates every 10 minutes, or you can simply activate from the sleek redesigned remote. The P|Flux: 1 features a 25-gallon octagonal, LED-illuminated drum.  Plus, LED and audio warnings let you know when the drum is full – features that are now standard in this line.

Features:

• Standard black HEPA filtration
• LED and alarm when drum is full
• Automatic Filter Cleaning
• LED Drum illumination
• Swing away doors with acoustic foam on inside to lower noise level
• 6ft. 3-Wire Cord with No Plug
• Centralized Control Panel Can be Mounted on Left/Right Side
• Drum Quick Release Pulls Drum Firmly Against Lid

Specifications:

• Part Number | MDCPF22201
• Motor | 2HP, 220V, 1PH, 60Hz, 14 Amps
• Recommended Breaker Size | 20 Amps
• RPM | 3450
• Control Panel | Anodized Aluminum
• Switch | Magnetic On/Off
• Hand-held Remote Control | High Frequency
• Drum Full Warning | LED + Alarm
• Inlet CFM | 1740 CFM
• Shop Setting CFM | 1166 CFM
• Max Static Pressure (inches of water) | 9.3"
• Inlet Diameters | 8”
• Inlet Splitter | 2” x 4” Ports
• Impeller | 14.5" Steel Radial Fin
• Drum Capacity | 46 Gallon
• Bag Hold-Down | Metal Insert
• Canister Filter Type | HEPA
• Filtration Efficiency | 99.7% of particles 0.3 + larger
• MERV Rating | 16+
• Canister Cleaning | Automatic Filter Cleaning
• Decibel Reading | 76 dBA (@9.8ft)
• Assembled Dimensions | 48”L x 28”W x 88”H
• Weight (Net/Ship) | 362/430 Lbs.
