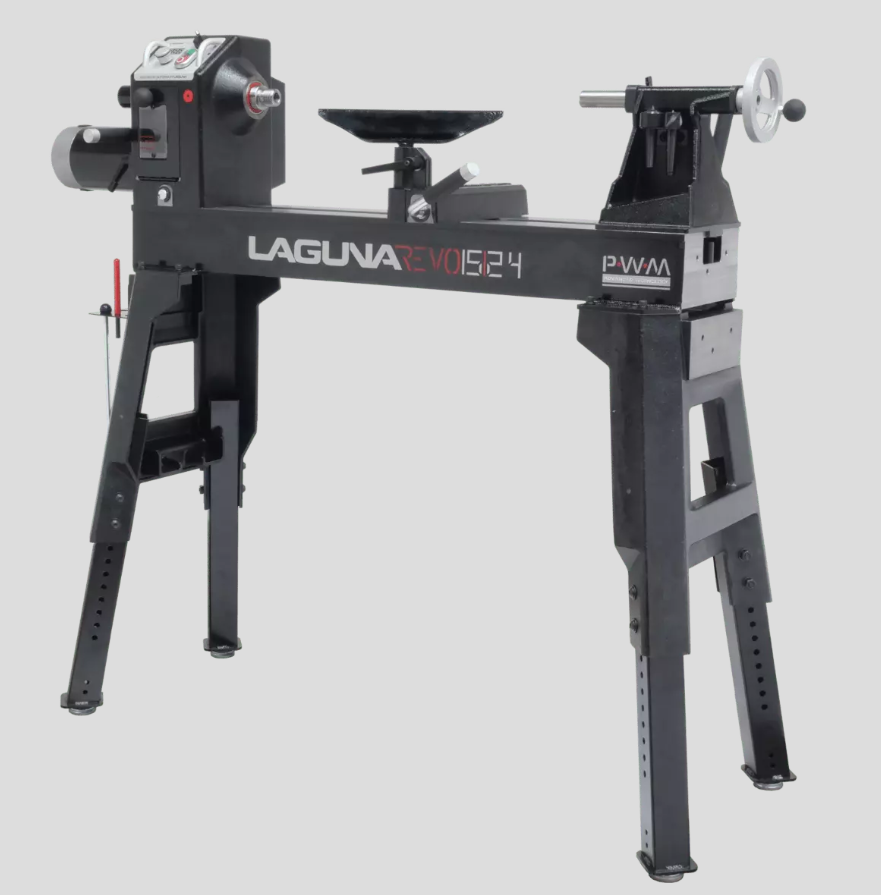

Laguna Revo 15|24 Classic Lathe

With the launch of the Revo 15|24 Laguna is filling the gap between the Revo 12|16 & the legendary Revo 18|36, providing space constrained users with more power and capacity.

Features:

• World-class fit and finish Laguna is known for
• Sliding headstock for ergonomic outboard bowl turning
• Infinite electronic variable speed from 50 – 4200 RPM with a 3 step pulley
• Extraordinary torque even at low speeds, powered by Laguna Pulse Width Modulation
• Adjustable-height legs allow a more ergonomic working position tailored to individuals needs
• Steel bed provides strength, stability and a surface that the banjo will glide across smoothly
• A brand new feature is the patent-pending Precise Point that allows you to dial in the tailstock quill to meet with the headstock center
• Spring Loaded Spindle Lock
• PWM: Pulse Width Module Speed Control

Specifications:

• Motor | 1.5 HP, 110V, 8 Amp, 60 Hz
• Recommended Breaker Size | 15 Amp
• Swing Over Bed | 15-1/2”
• Swing Over Banjo | 11-3/32”
• Mac. Outboard Swing with Optional Accessory | 25”
• Tool-Rest Post Size | 1”
• Tool-Rest Length | 12”
• Bed Gap | 50mm
• Spindle Taper | MT#2
• RPM High | 650-4200
• RPM Mid | 325-2100
• RPM Low | 50-650
• Accepts Vacuum Chuck | No
• Tailstock Quill Travel | 4-1/2”
• Floor to Spindle Center Low | 36-13/32”
• Floor to Spindle Center High | 51-13/32”
• Floor To Bed Min | 25-19/32”
• Floor To Bed Max | 43-19/32”
• Front Bearing | TPI Taiwan 6206LLU
• Rear Bearing | TPI Taiwan 6205LLU
• Spindle Index # | 24 w/Lock
• Distance Between Centers | 24"
• Headstock/Tailstock Through-Bore | 3/8”
• Headstock Travel | Full Length
• Spindle Size | 1-1/4” x 8TPI RH
• Floor Space | 60"W x 22"D x 22"H
• Certification | CSA C/US
• Box Dimensions | 52”L x 22”W x 22”H
• Weight (Net/Ship) | 288/302 lbs
