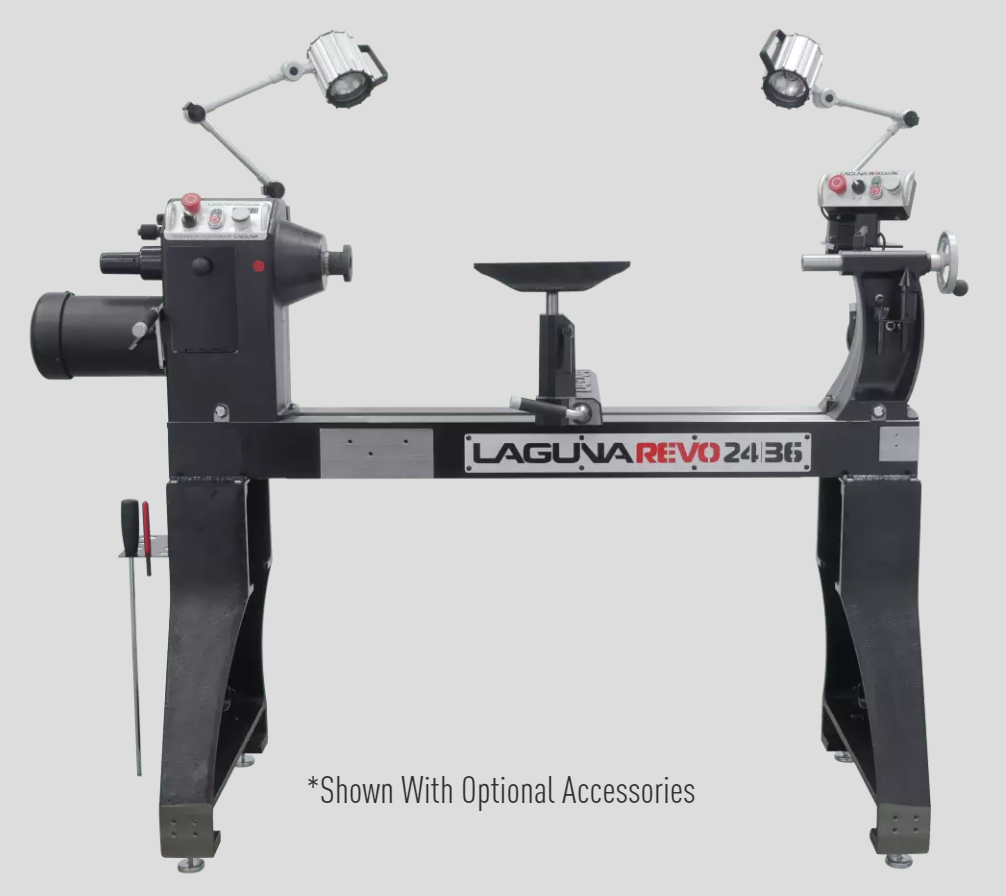

Laguna Revo 24|36 Classic Lathe 220V

Wall Thickness of legs on the Revo 24|36 is 80% heavier compared to the Revo 18|36. Redesigned banjo features a more compact design, 45° cutout & wider base. Having a second control panel that mounts in two positions (high or low) sets the Revo 24|36 apart from any other lathe in the world, not only can you turn off the machine from this control panel, but it allows the operator to change speed as well. A switch on the back of the headstock designates whether you control the Revo from the headstock control panel or the corresponding control panel. The E Stop works on both at any given time. And YES, this amazing control panel comes standard with the Revo 24|36.

Features:

• Motor: Induction, 1725 RPM, 3HP, 220V, 60Hz
• Phase: 1-Phase Input, 3-Phase Output
• VFD: Delta S1 Variable Frequency Drive
• 1/4” Hardened Leading Edge
• Dual Cast Iron Accessory Mounting Brackets
• Knockout Rod with brass tip
• Adjustable Leveling Feet
• Luxury Live Center
• Spur Drive Center & Live Center
• Tool Caddy
• Dual Work light Outlets
• Spring Loaded Spindle Lock
• Remote Control Box w/Speed Settings

Specifications:

• Motor | TEFC, 3 HP, 8A 220V, 3PH
• Recommended Breaker Size | 15 Amp
• Phase | 1-Phase Input, 3-Phase Output
• VFD | Delta ME300 Variable Frequency Drive
• Two Ergonomic Control Panel Positions | High/Low
• Drive Belt | Poly-Groove with EZ Access
• Tailstock Quill | 4½", Engraved, Self-Ejecting
• Floor to Spindle Center | 44½"
• Front Bearing | TPI Taiwan 6307LLU
• Rear Bearing | TPI Taiwan 6205LLU
• In-Head Indexing Positions | 14/36/48 w/Lock
• Distance Between Centers | 36"
• Headstock Through-Bore | 3/8"
• Tailstock Through-Bore | 3/8"
• Spindle Size | 1¼" X 8 TPI RH
• Floor to Bed | 32½" with Pads
• Swing Over Bed | 24”
• Swing over Banjo | 19 ¾"
• Max. Outboard Swing | 38 (with optional extension)”
• Face Plate | 3" Diameter
• Tool Rest | 12"
• Headstock Spindle | MT2 taper hardened to 40° HRC
• Tailstock Quill | MT2 taper hardened to 40° HRC
• RPM | High: 135-3500 Low: 50-1300
• Dimensions | 60" W x 26" D x 52¼" H
• Weight for 220V (Net/Ship) | 532/605 Lbs.
