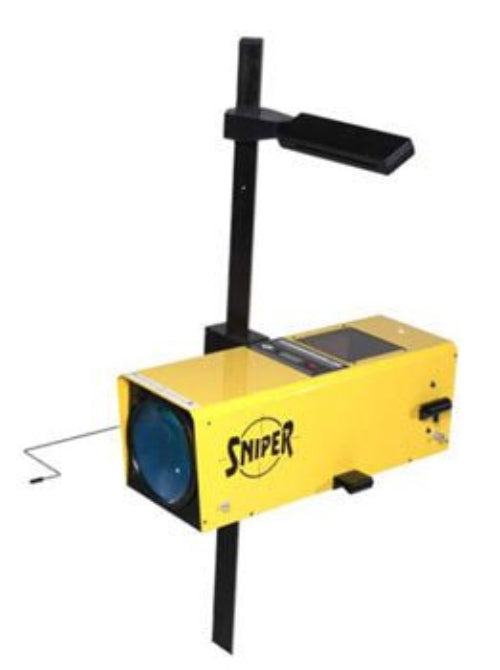

Lujan 5412B Professional Optical Headlight Aimer

Headlight Aiming Made Easy

The SNIPER is a professional model optical headlight aimer designed for state inspection facilities, fleet maintenance operations, collision shops, and auto or truck repair businesses. Although simplistic in appearance, the Sniper’s European technology has over 25 years of engineering refinement built in. It uses an optical grade lens to reproduce a headlight beam’s image inside the aiming head. The pattern is transmitted to an internal screen, which the technician uses to aim the light. The SNIPER has many exclusive features that make it your best choice for headlight aiming. It’s superior design provides many important advantages for you.

Accurately aims all headlights including:

• Aerodynamic

• Contoured

• Sealed beam

• Foglamps

• Euro style

• Recessed

Laser guided floor slope measurement:

• Permanently mounted laser provides fast, accurate floor slope measurement

• Easy access for battery change

• Laser provides optional means for positioning aimer to headlight

Retractable pointer positioning system:

• Provides easy, fast positioning to headlight

Laser alignment visor:

• Over 6’ wide viewing range, no floor track needed

• Not affected by dirt, dust, or overspray

• Fully adjustable for any user height

• Simple field calibration, accurate within .1 degree

• Laser sighting is fast and easy to use

• Automatic laser shut-off

• Non-reversible, protects calibration integrity

Exclusive aiming screen with beam slope compensation:

• Exclusive screen design has built-in  compensation for high mounted lights such as 4wd pick-ups, SUV’s, & trucks

• Inspection limits clearly shown on full width of screen

• Domestic and European aiming, including new xenon lights

• 1” scale for state inspections

Specifications:

• Max lamp height 58”
• Floor slope accuracy .05 degree or less
• Floor slope measurement laser
• Laser alignment accuracy .1 degree or less
• Horizontal accuracy .6 degrees or less
• Vertical accuracy .3 degrees or less


Meets SAE standards J599 and J600 as required for state inspection facilities

3 Year Warranty
