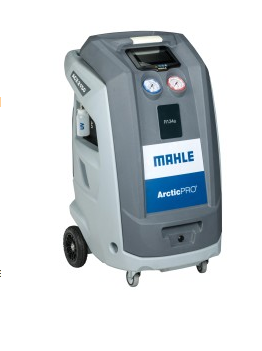

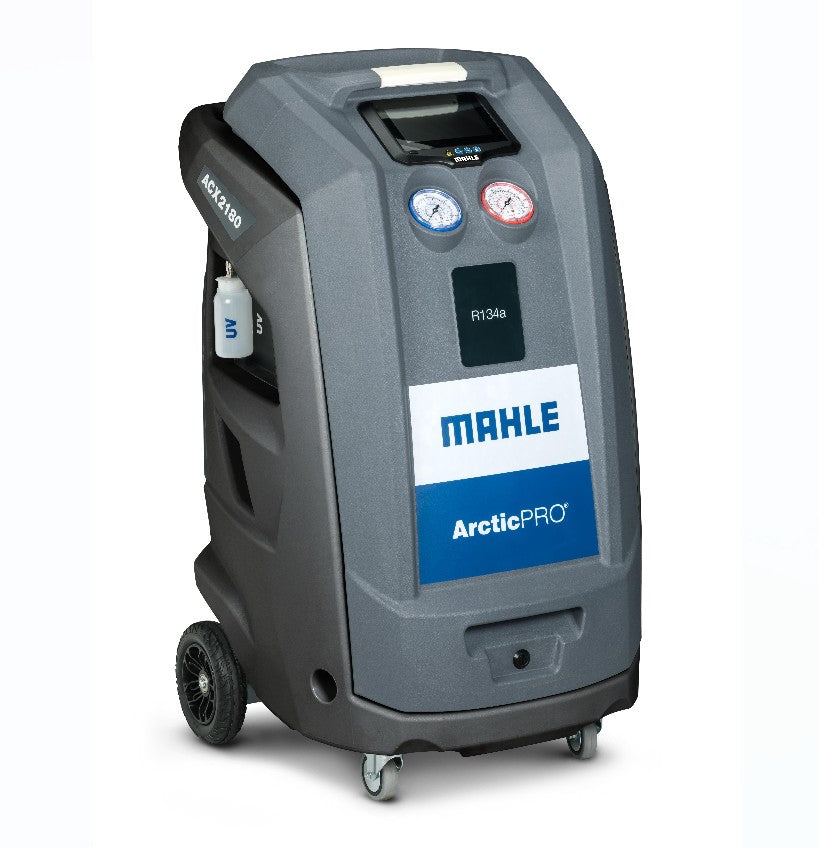

Mahle ArcticPRO ACX2180 R134a Refrigerant Handling System

Features:

• State-of-the-Art | Ergonomic design, 7" capacitive touch LCD display, and intuitive user interface sets a new industry standard.
• Extra Transducers | Contains three transducers, providing reduced process times over dual sensor units.
• Status Indicator | LED light indicates status visible from anywhere in the workshop.
• Smart | iOS and Android capable phone app allowing remote service session mirroring and advanced functions.
• Best In Class Serviceability | New ergonomic hinged service door simplifies unit service.
• Automatic Updates | Permanent wireless software updates, ensuring you always have the latest features.
• Oil System Management | Automatic weighing of recovered oil, allowing accurate replenishment of oil removed during service and allows two oil types for injection.
• UV Dye Injection | Integrated UV dye injection provides high level of A/C system leak detection.
• Remote Support for Technicians | Allows MAHLE to connect to a unit over WiFi for troubleshooting and advanced support.
• Data Management & Reporting Metrics | Ability to log and monitor services allowing analytics for proactive service reminders, refrigerant use optimization, warranty reporting and more.
• Customer Service | Every unit is built to be easily repaired by the owner and we proudly offer nationwide service centers and lifetime phone support coverage and a two year standard warranty.
• Network Printing | Retains valuable service records, network printing capability to print services provided for customer.

Specifications:

• Part Number | 460 80447 00
• Certifications | SAE J2788, SAE J2099, UL 1963
• Charge Performance | +/-0.5 oz at 70 degrees to 75 degrees F (+/- 15g at 21° to 24°C)
• Recovery Performance | 95% at 70° to 75°F (21° to 24°C) within 30 minutes
• Operation | Fully Automatic
• Charging Cylinder | 30 lb. (13.6 kg) DOT
• Compressor | 3/8 HP-0.279kW
• Dimensions (H x W x D) | 47 in x 29 in x 29 in (119 cm x 74 cm x 74 cm)
• Weight | 215 lb. (98 kg)
• Display | Color, 7” Capacitive Touch Screen
• Filter Drier Capacity | 150 Lb. (68 kg) spin-on type
• Hoses | 9 ft. (2.75 m)
• Hybrid Function | ACX2180H only
• Languages | English, French, Spanish
• Operating Ranges | 50° to 122°F (10° to 50°C)
• Power Source | 120 VAC - 60 HZ - 12 AMP
• Printer | Optional
• Vacuum Pump | 2 CFM dual stage
• Warranty | 2 Years Parts, 1 Year Labor

Optional Accessories (Sold Separately):

• 360 83254 00 | Filter Combo
• 026 80785 00 | Dust Cover
• 026 80698 00 | Oil Charge Bottle
• 026 80699 00 | Oil Drain Bottle
• 028 80532 00 | Red Hose R134A
• 028 80533 00 | Blue Hose R134A
• 023 80096 00 | Quick Release Low Side Coupling R134A
• 023 80495 00 | Quick Release High Side Coupling R134A
• 360 82744 00 | Calibration Check Ball
• 023 80147 00 | Adaptor LP (External Bottle) USACME 1/2 R134A
• 026 80700 00 | Vacuum Pump VE215
• 011 80070 00 | Vacuum Pump Oil (Quart)
• 360 83269 00 | Thermal Printer Installation Kit
• 360 83110 00 | Thermal Printer Paper 5PK
• 024 80205 00 | Power Filter 15A
• 360 82956 00 | Safety Goggles

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck. Additional shipping charges will apply to ship to a Non-Commercial Address. If Residential Delivery or Liftgate Delivery is needed, please select one of the choices above BEFORE adding to the cart!
