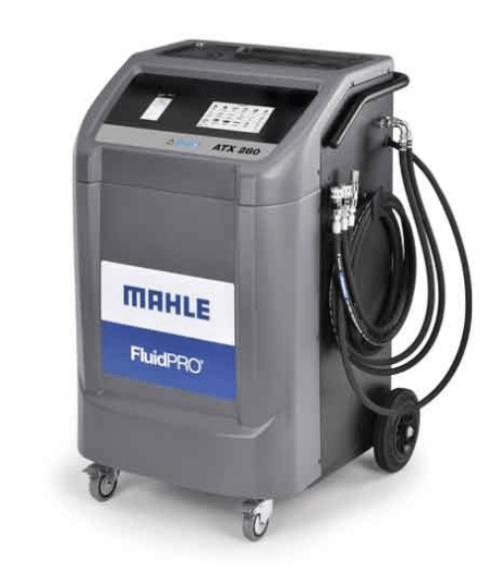

Mahle FluidPRO ATX-280 Transmission Fluid Exchange System

The ATX-280 is a new design for the FluidPRO® line, featuring a large Touch display and the adoption of a new graphical interface. This upgrade is easier for the operator and automatically supports any operation of the oil flow automatic transmission. The database and the step-by-step process are integrated into the software. The station automatically detects the direction of the oil flow in the transmission and prevents any damage to the system. When connected to WiFi the machine allows constant updates and remote assistance (Re.Solve), as well as the ability to print the final report directly from your workshop PC (Nexus Print). The dedicated app increases productivity in the workshop, allowing the operator to move freely in the shop while keeping all phases in progress under control. The interchangeable tank allows for quick replacement of oil types and guaranteed purity through an internal washing process (Zero-cross-Contamination).

Features:

• 7” touch screen LCD display
• New design, same family feeling as MAHLE stations
• New GUI, even easier to use
• WiFi connection
• App for remote display
• On board vehicle database for transmission pictures, service info, fill capacities, and oil type

Specifications:

• Control | Automatic, Software-assisted with 7“ Color Touch Display
• New oil filter | 90µ mesh filter
• Sight glasses | Visual inspection of oil quality
• Dipstick function | Integrated with hoses ø6mm and ø10mm
• Zero-cross-contamination | Circuit cleaning function after oil type change
• Hoses | 2 x 3 m (service hoses), 1 x 1.5 m (for draining the waste oil)
• BOOST function | Integrated
• Service report print function | Via WiFi (NEXUS print) or USB export
• Top grid | With A/T adapters tray
• Oil pump | 2 X hydraulic oil pumps of 10 l/min each; PWM-controlled
• Menu languages | 15 different languages
• Power supply | 110/230 V, 50-60Hz
• Service and Software Update | Via WiFi connection, Re.Solve function via WiFi
• Smartphone App | FluidPRO ATX Remote Viewer
• Dimensions | 47.25"h x 29"l x 29"w (120 x 74 x 74 cm)
• Weight | 137 lbs (62 kg)
