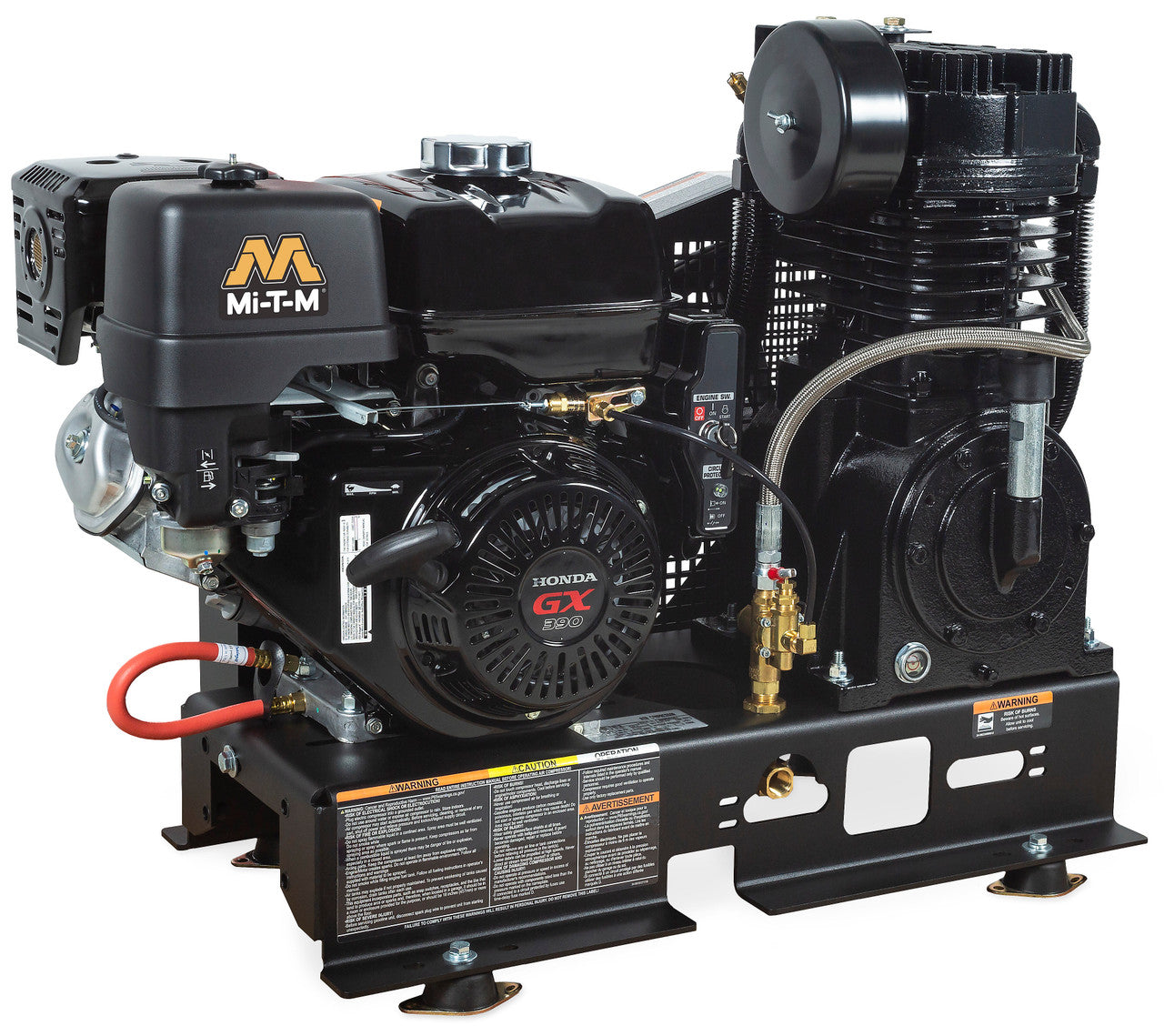

Mi-T-M ABS-13H-B Base-Mounted Two Stage Compressor

This base-mount air compressor is designed to provide high capacity air flow required for most commercial, industrial and automotive industries. Mount one in a service truck and take it to the most demanding jobsite.

Features:

• Compressor Pump:
• Splash lubricated
• Stainless-steel braided discharge hose
• Large canister intake filter
• Oil level sight indicator
• Engine:
• Electric start - battery and cables not included
• Frame:
• 3/16-inch base plate to reduce vibration
• 16-gauge powder coated two-piece belt guard
• Removable base plate offers flexible installation
• Components:
• Regulator and two gauges for tank and outlet pressure
• ASME safety valves
• 16 1/2-inch fly wheel
• Tank drain valve
• Service truck mount kit
• *Equipped with 150-PSI maximum rated regulator

Specifications:

• CFM @ 175 PSI* | 29.0
• Displacement/ Engine | 389cc Honda GX390 OHV
• Compressor | Two Stage, Cast Iron
• Tank Size | Base-Mount
• Engine Idle Control | Pneumatic
• Net Weight | 215.00 lbs.
• Shipping Weight | 279.00 lbs.
• Length | 36.50 in.
• Width | 19.00 in.
• Height | 28.00 in.

Options:

• IX-0055 Remote Start/Choke | Remote start/choke; 6-foot wire extension for key switch; you will also need to order electric start option, AX-0015
• IX-0059 Remote Start/Choke | Remote start/choke; 6-foot wire extension for key switch, sealed cable; you will also need to order electric start option, AX-0015

Additional Gasoline Base-Mounted Models Available (Sold Separately):

• ABS-14M-B | Base Mounted, 420cc Mi-T-M OHV

PLEASE NOTE, IMPORTANT INFORMATION:

• This item ships by truck. Additional shipping charges will apply to ship to a Non-Commercial Address. If Residential Delivery or Liftgate Delivery is needed, please select one of the choices above BEFORE adding to the cart!
