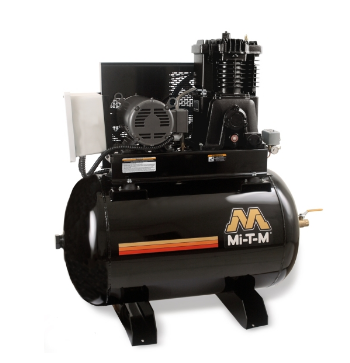

Mi-T-M ACS-23175-80H 80-Gallon Two Stage Electric

ACS Series - 7.5 HP Simplex Horizontal

Compressor Pump: Quality two stage cast iron pump, Splash lubricated cast iron crankcase to extend the hours of performance, Cast iron head for heat dissipation, Oil lever sight indicator, Steel braided supply line for easy maintenance - won’t fracture with vibration, Flexible pump drain hose

Motor: Low RPM industrial electric motor with thermal overload motor protection

Frame: Durable, professional, high gloss powder coat finish, ASME coded 80-gallon receiver tank, 7-gauge base plate to reduce vibration, 14-gauge powder coated totally enclosed belt guard, Tabbed design offers flexible installation, smooth operation and reduces vibration stress on tank

Components: Large flywheel for extra cooling and longer life, ASME safety valves, Pressure gauges, Tank shut-off valve, Intake filter/silencer, Belt tightening system pulls engine straight to ensure constant belt alignment

Other Models Available:

ACS-20375-80H 200V, 23.0A, 3 Phase
ACS-23375-80H 230V, 20.0A, 3 Phase
ACS-46375-80H 460V, 10.0A, 3 Phase

Specifications:

Horsepower:
7.5 HP

Voltage/Amperage /Phase:
230V, 31.0A, 1 Phase

Pump RPM:
1250

CFM @ 175 PSI:
23.5

Bolt Down Dimensions (LxW):
20.75 x 23.5 inches

Weights & Dimensions:

Net Weight:
594 lbs.

Length:
52 in.

Width:
26.5 in.

Height:
53 in

Limited Warranties:
1 Year Electric Motor
2 Year Pump Exchange
