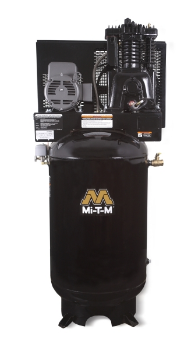

MI-T-M ACS-23175-80HM 80-Gallon Two Stage Electric

ACS M Series - 7.5 HP Simplex Horizontal

Compressor Pump: Quality two stage cast iron pump, Splash lubricated cast iron crankcase to extend the hours of performance, Cast iron head for heat dissipation, Oil lever sight indicator, Steel braided supply line for easy maintenance - won’t fracture with vibration, Flexible pump drain hose

Motor: Low RPM industrial electric motor, NEMA-4 starter box with magnetic starter for thermal overload protection

Frame: Durable, professional, high gloss powder coat finish, ASME coded 80-gallon receiver tank, 7-gauge base plate to reduce vibration, 14-gauge powder coated totally enclosed heavy-duty belt guard, Vibration isolator pads protect the tank from stress

Components: Large flywheel for extra cooling and longer life, ASME safety valves, Pressure gauge, Tank shut-off valve, Tank drain valve automatically drains liquid from air receiver, Intake filter/silencer, Belt tightening system pulls engine straight to ensure constant belt alignment, Hour meter displays the number of hours compressor has been in operation, Low oil shutdown shuts unit down when oil falls below adequate levels, Air-cooled after cooler removes up tp 65% fo moisture and drops temperature within 10-degrees of ambient

Specifications:

Voltage/Amperage /Phase:
230V, 31.0A, 1 Phase

Horsepower:
7.5 HP

Bolt Down Dimensions (LxW):
20.75x23.50in.

Pump RPM:
1250

CFM @ 175 PSI:
23.5

Weights & Dimensions

Net Weight:
709 lbs.

Shipping Weight:
780 lbs.

Length:
52 in.

Width:
26.5 in.

Height:
53 in

Limited Warranties:
2 Year Pump Exchange
1 Year Electric Motor
