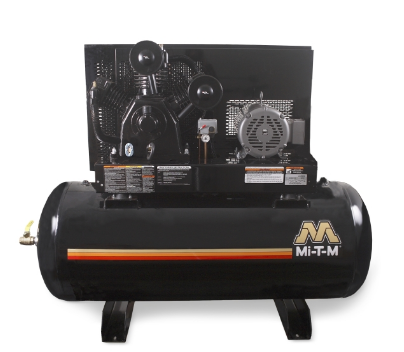

Mi-T-M ADS-23110-120H 120-Gallon Two Stage Electric

ADS-23110-120H

ADS M Series - 10.0 HP Simplex Horizontal

Compressor Pump: – Two stage cast iron – Splash lubricated – Stainless-steel braided discharge hose – Large canister intake filter – Oil level sight indicator

Motor: – Industrial low RPM motor – Magnetic start for thermal overload protection

Frame: Durable, professional, high gloss powder coat finish · ASME coded 120-gallon receiver tank · 3/16-inch base plate to reduce vibration · Powder coated totally enclosed belt guard · Tabbed design offers flexible installation, smooth operation and reduces vibration stress on tank

Components: Large flywheel for extra cooling and longer life · ASME safety valves · Tank pressure gauge · Tank shut-off valve · Intake filter/silencer · Belt tightening system pulls engine straight to ensure constant belt alignment · Hour meter

Other Models Available:
ADS-20310-120H 200V, 30.8A, 3 Phase
ADS-23310-120H 230V, 26.8A, 3 Phase
ADS-46310-120H 460V, 13.4A, 3 Phase

Specifications:

Voltage/Amperage /Phase:
230V, 39.0A, 1 Phase

Horsepower:
10.0 HP

Pump RPM:
909

CFM @ 175 PSI:
34.2

Bolt Down Dimensions (LxW):
34.5 x 23.5 inches

Weights & Dimensions

Net Weight:
785 lbs.

Length:
74 in.

Width:
26.5 in.

Height:
58 in.

Limited Warranties:
1 Year Electric Motor
2 Year Pump Exchange
