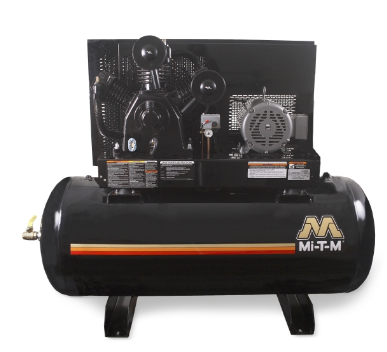

Mi-T-M AES-20315-120H 120-Gallon Two Stage Electric

AES-20315-120H

AES Series - 15.0 HP Simplex Horizontal

Compressor Pump: Quality two stage cast iron pump, Splash lubricated cast iron crankcase to extend the hours of performance, Cast iron head for heat dissipation, Oil lever sight indicator, Steel braided supply line for easy maintenance - won’t fracture with vibration, Flexible pump drain hose

Motor: Low RPM industrial electric motor with thermal overload motor protection

Frame: Durable, professional, high gloss powder coat finish, ASME coded 120-gallon receiver tank, 7-gauge base plate to reduce vibration, 14-gauge powder coated totally enclosed belt guard, Tabbed design offers flexible installation, smooth operation and reduces vibration stress on tank

Components: Large flywheel for extra cooling and longer life, ASME safety valves, Pressure gauges, Tank shut-off valve, Intake filter/silencer, Belt tightening system pulls engine straight to ensure constant belt alignment

Other Models Available:

AES-23315-120H 230V, 38.0A, 3 Phase
AES-46315-120H 460V, 19.0A, 3 Phase

Specifications:

Horsepower: 15.0 HP
Voltage/Amperage /Phase: 200V, 44.0A, 3 Phase
Pump RPM: 776
CFM @ 175 PSI: 46.5
Bolt Down Dimensions (LxW): 34.5 x 23.5 inches

Weights & Dimensions:

Net Weight: 876 lbs.
Length: 74 in.
Width: 26.5 in.
Height: 58 in.

Limited Warranties:
2 Year Pump Exchange
1 Year Electric Motor
