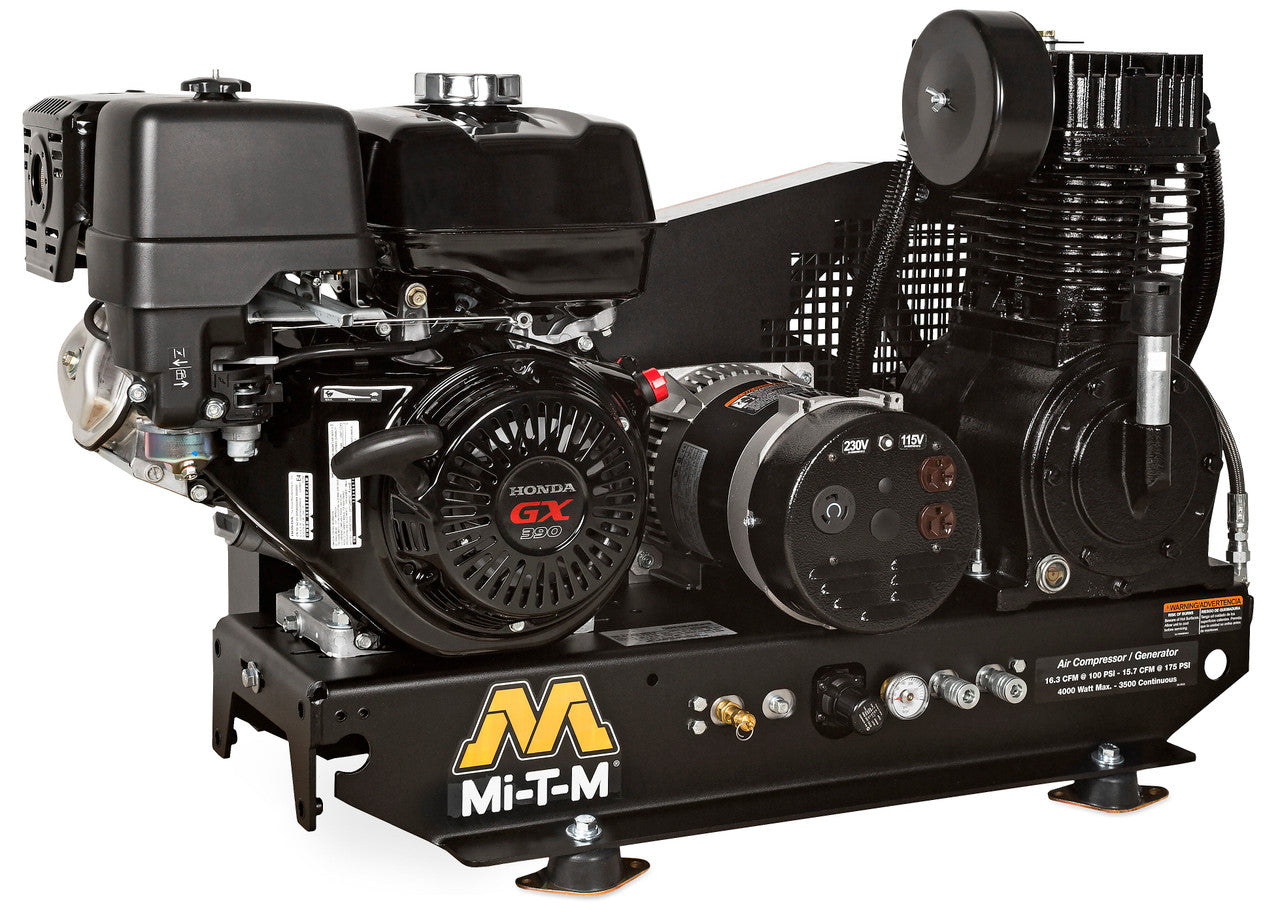

Mi-T-M AG2-SH13-BE Two Stage Base Mount

Increase your productivity by merging two vital pieces of equipment into one versatile machine. Ideal for every industrial application requiring both air and electrical power, you'll save space and save money with one machine.

Electric start (battery, box and cables not included)

Compressor Pump:

• Quality cast iron two stage compressor
• Durable stainless-steel braided discharge hose for longer life
• Splash lubricated cast iron crankcase to extend the hours of performance
• Cast iron head for heat dissipation
• Large canister intake filter
• Oil level sight indicator

Generator:

• Brush-less alternator
• Industrial 4000-watt generator with (2) 120V, 20A and (1) 240V, 20A receptacles
• Total harmonic distortion (THD) less than 5%
• 100% copper windings

Engine:

• Industrial Honda GX390 OHV engine

Frame:

• 3/16-inch base plate to reduce vibration
• 16-gauge powder coated two-piece belt guard with 1/4-turn release for quick access to belts

Components:

• Regulator and two gauges for tank and outlet pressure
• Manual drain valves for proper maintenance
• 16.5-inch flywheel for extra cooling and longer life
• Quality pilot valve unloader
• Belt tightening system pulls engine straight to ensure constant belt alignment

Specifications:

• CFM @ 90 PSI | 16.4
• CFM @ 175 PSI | 15.7
• Max. AC Output | 4000 watts
• Continuous with Compressor Off Load | 3500 watts
• Continuous with Compressor On Load | 2300 watts
• Receptacles | (2) NEMA 5-20R, (1) NEMA L6-20R
• Displacement/ Engine | 389cc Honda GX390 OHV
• Compressor | Two stage

Weights & Dimensions:

• Net Weight | 325 lbs.
• Shipping Weight | 390 lbs.
• Length | 47 in.
• Width | 22 in.
• Height | 28 in.
