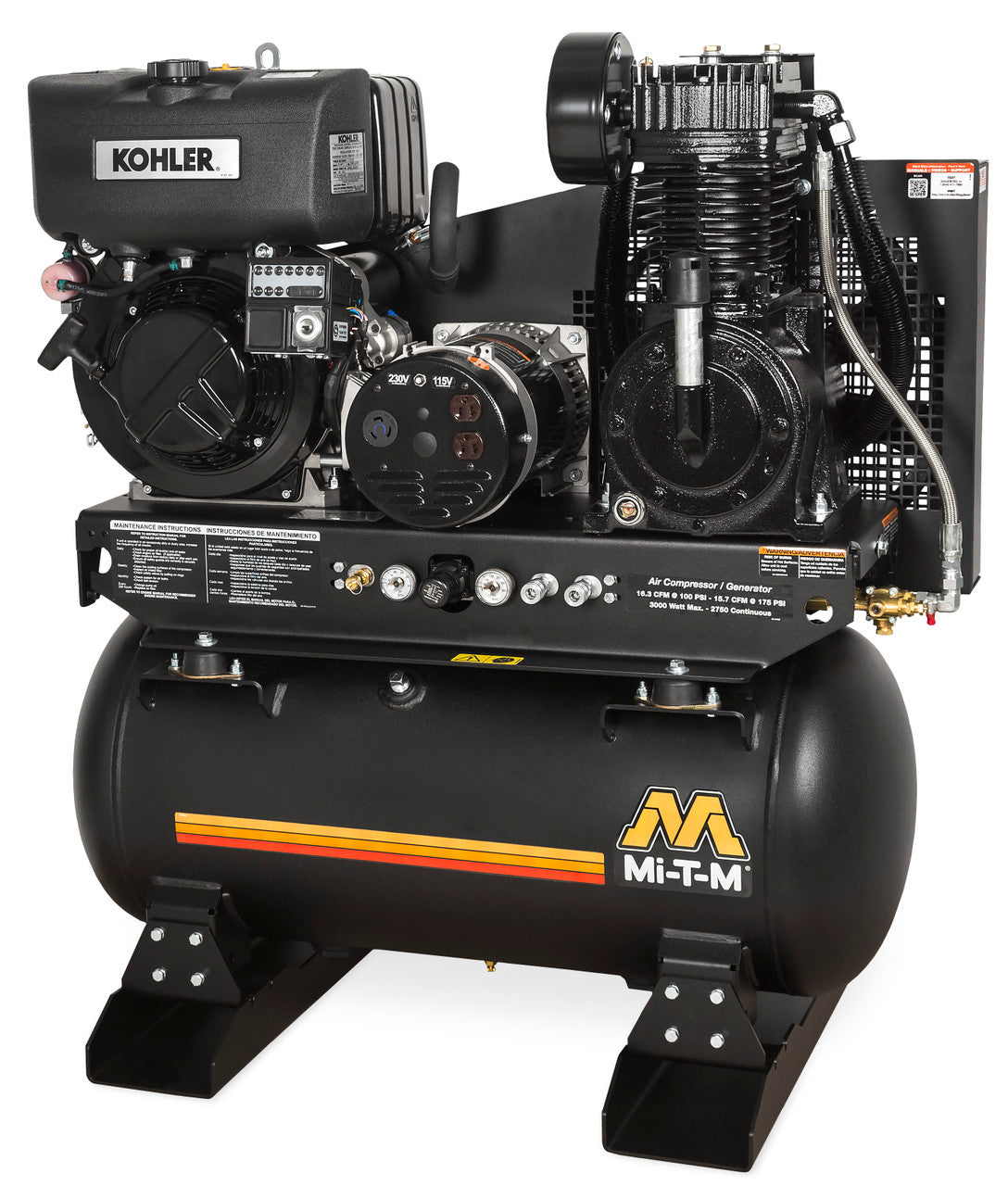

MI-T-M AG2-SKD9-30M 30-Gallon Two Stage Diesel

The new 30-gallon diesel air compressor/generator is perfect for agricultural, construction and industrial application that require both electrical power and compressed air.

Compressor Pump:

• Splash lubricated
• Stainless-steel braided discharge hose
• Large canister intake filter
• Oil level sight indicator

Generator:

• Brush-less alternator
• Total harmonic distortion (THD) less than 6%
• 100% copper windings
• Comes standard with (2) 120V, 20A and
• (1) 240V, 20A receptacles

Engine:

• 9.1 HP Kohler KD440 OHV
• Electric start - battery, box and cables not included
• Glow plug equipped engine for easy starting in cold temperatures

Frame:

• Powder coated ASME coded 30-gallon receiver tank
• 3⁄16-inch base plate to reduce vibration
• 16-gauge powder coated two-piece belt guard

Components:

• Regulator and two gauges for tank and outlet pressure
• Manual drain valves for proper maintenance
• 161⁄2-inch fly wheel
• Quality pilot valve unloader

Limited Warranties:

• 2 year alternator
• 2 year pump exchange
• 3 year Kohler engine

Certifications:

• ASME Boiler and Pressure Vessel Code - UM

Limited Warranties:

• 2 Year Limited Alternator Warranty
• ASME - UM
• 2 Year Pump Exchange
• 3 Year Kohler Engine

Specifications:

• CFM @ 90 PSI 16.4
• CFM @ 175 PSI 15.7
• Max. AC Output 3000 watts
• Continuous with Compressor Off Load 2750 watts
• Continuous with Compressor On Load 2300 watts
• Receptacles | (2) NEMA 5-20R, (1) NEMA L6-20R
• Horsepower/ Engine | 9.1 HP Kohler KD440 OHV
• Compressor | Two stage, cast iron

Weights & Dimensions:

• Net Weight | 489 lbs.
• Shipping Weight | 554 lbs.
• Length | 41 in.
• Width | 23 in.
• Height | 47 in.
