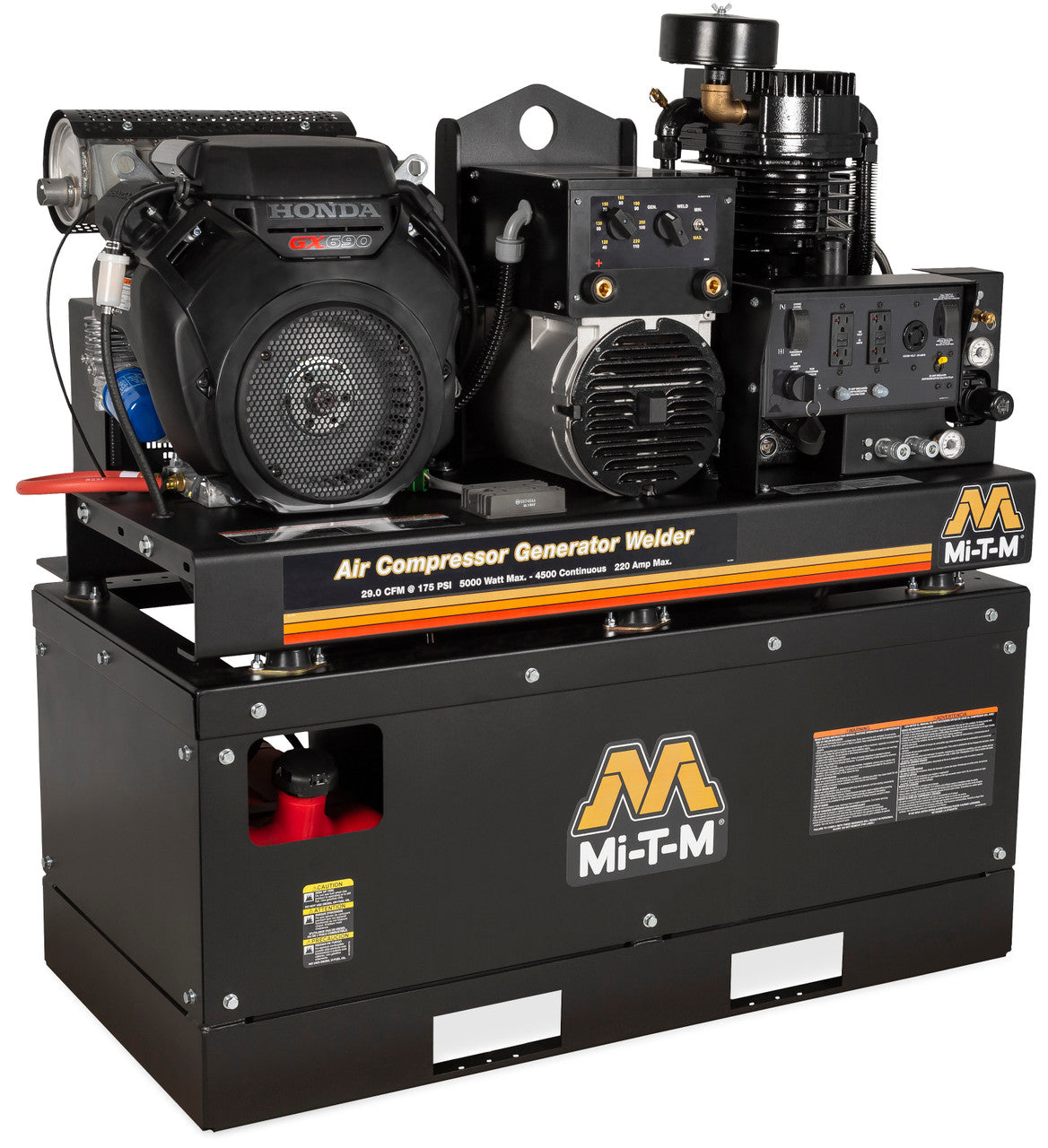

Mi-T-M AGW-SH22-20M 2 Stage Gasoline Air Compressor/Generator/Welder

Dependability of high quality equipment is vital in every industry, so is working with equipment that can save both time and money. The combination air compressor, generator, and arc welder is the ideal tool for field repairs in remote locations. Save room on your service truck with this versatile all-in-one solution.

AGW Series Operation:

• Generator Mode
• AC current only
• Selector switch set to idle down
• Switch is set to full throttle
• Welder Mode
• DC current only
• Engine must be running full throttle
• Selector switch must be set to full throttle

Features:

• Compressor Pump
• Splash lubricated
• Stainless-steel braided discharge hose
• Large canister intake filter
• Oil level sight indicator
• Generator
• Brush-type 2 pole 120V/240V alternator
• Total harmonic distortion (THD) less than 6%
• 100% copper windings
• Welder
• Amperage selection switch, 170A or 220A maximum
• Frame
• Powder coated ASME coded receiver tanks
• 14-gauge powder coated belt guard
• Components
• Regulator and two gauges for tank and outlet pressure
• Manual drain valves for proper maintenance
• 16.5-inch fly wheel

*Equipped with 150-PSI maximum rated regulator.

Specifications:

• Displacement/ Engine | 688cc Honda GX690 OHV w/electric start (battery cables included; battery not included)
• CFM @ 90 PSI | 30.5
• Rated Speed | 3600 RPM
• Compressor | Two stage, cast iron
• CFM @ 175 PSI | 29.0
• Rated AC Output | 4500 watts
• Alternator Wattage/ Cont. On-Load @175 PSI | 4500 watts
• Tank | 20-gallon receiver tank
• Max. AC Output | 5000 watts
• Alternator Wattage/ Cont. On-Load @ 90 PSI | 4500 watts
• Frequency/Voltage | 60Hz/120V/240V
• Max. Amps (120V/240V) | 41.5/20.8
• Cont. Amps (120V/240V) | 37.5/18.8
• Receptacles | (2) 120V, 20A GFCI duplex - 120V/240V, 20A twist lock
• Duty Cycle (10 min. run time) | 220A @ 40%, 190A @ 60%, 150A @ 100%
• DC Voltage | 50-220A working range
• Fuel Tank | 10-gallon

Weights & Dimensions:

• Net Weight | 803 lbs.
• Shipping Weight | 870 lbs.
• Length | 47 in.
• Width | 24 in.
• Height | 50 in.

Options (Sold Separately):

• IX-0001 | Vibration isolator pads
