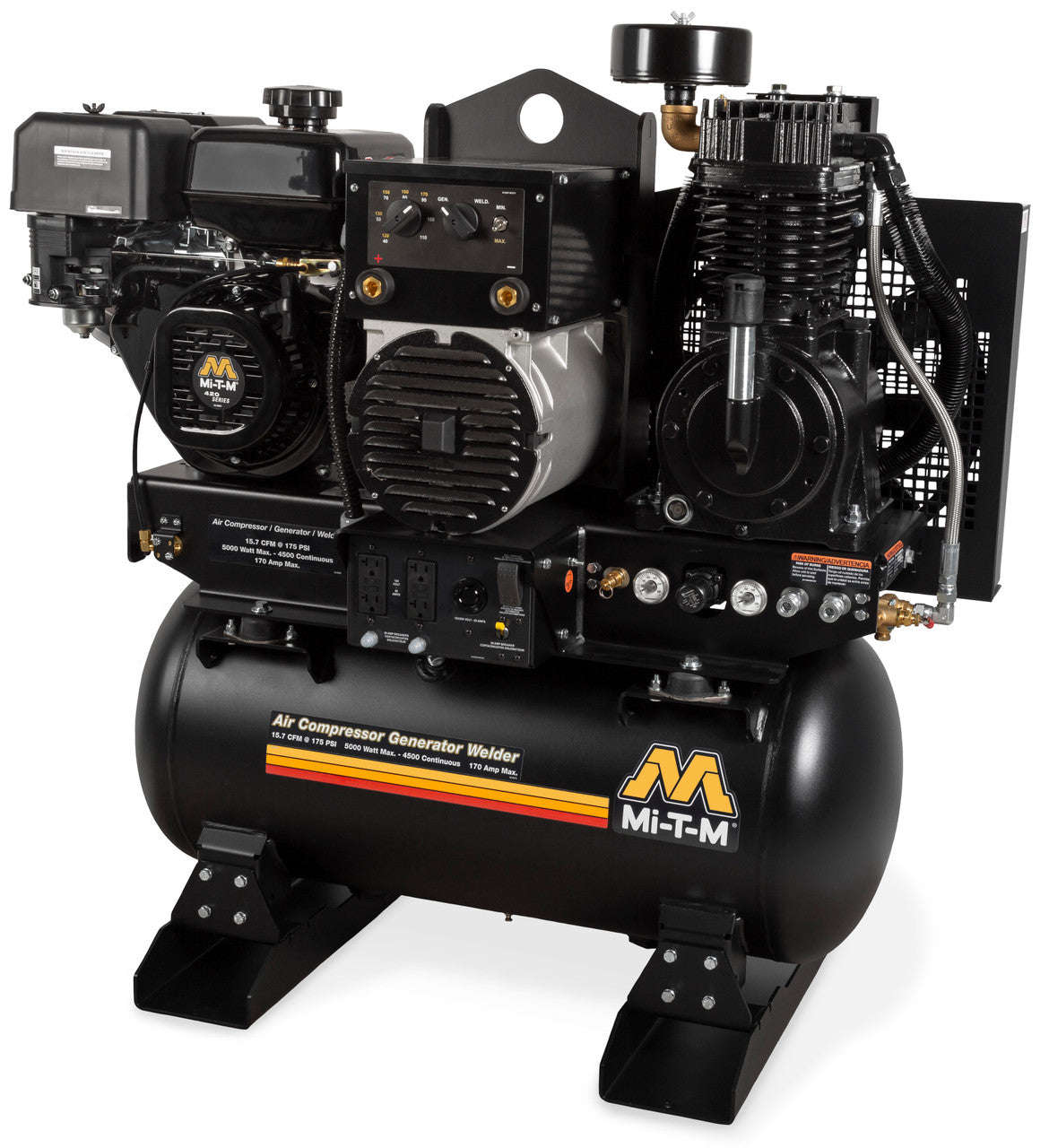

MI-T-M AGW-SM14-30M Two Stage Gasoline

Dependable high quality equipment is vital in every industry because it saves both time and money. The combination air compressor, generator, and arc welder is the ideal tool for working on emergency field repairs in remote locations.

Operation

• Generator Mode | AC current only · Selector switch set to idle down · Switch is set to full throttle
• Welder Mode | DC current only · Engine must be running full throttle · Selector switch must be set to full throttle

Features

• Compressor Pump | Stainless-steel braided discharge hose · Splash lubricated · Large canister intake filter · Oil level sight indicator
• Generator | Brush-type 2 pole 120V/240V alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings
• Welder | Amperage selection switch, 170A or 220A maximum
• Frame | Powder coated ASME coded receiver tanks · 16-gauge powder coated belt guard
• Components | Manual drain valves for proper maintenance · Regulator and two gauges for tank and outlet pressure · 16.5-inch fly wheel

Equipped with 150-PSI maximum rated regulator.

Specifications

• Displacement/ Engine | 420cc Mi-T-M OHV with electric start - battery and battery cables not included
• Rated Speed | 3600 RPM
• CFM @ 90 PSI | 16.4
• Max. Amps (120V/240V) | 41.5/20.8
• Compressor | Two stage, cast iron
• CFM @ 175 PSI | 15.7
• Tank Size | 30-gallon receiver tank
• Max. AC Output | 5000 watts
• Rated AC Output | 4500 watts
• Alternator Wattage/ Cont. On-Load @ 90 PSI | 3000 watts
• Cont. Amps (120V/240V) | 37.5/18.8
• Alternator Wattage/ Cont. On-Load @175 PSI | 2500 watts
• Frequency/Voltage | 60Hz/120V/240V
• Receptacles | (2) 120V, 20A GFCI duplex, (1) 120V/240V, 20A twist lock
• Fuel Tank | 1.85-gallon
• Duty Cycle (10 min. run time) | 150A @ 100%
• DC Voltage | 50-170A working range

Weights & Dimensions

• Net Weight | 585 lbs.
• Shipping Weight | 650 lbs.
• Length | 46 in.
• Width | 22 in.
• Height | 47 in.

Options

• IX-0001 | Vibration isolator pads
• AX-0070 | Battery tray, box and 2-foot of cables included

Limited Warranties

• 2 Year Limited Alternator Warranty
• 2 Year Pump Exchange
• 1 Year Mi-T-M Engine
• ASME - UM
