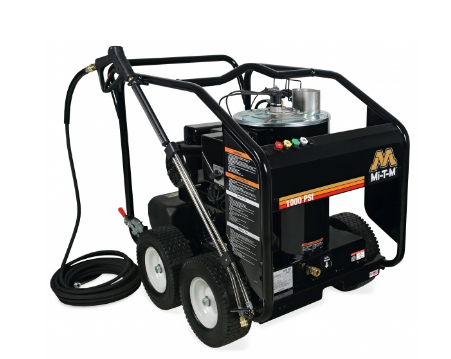

Mi-T-M HSE-1002-0MM11 HSE Series

The HSE Series of direct drive hot water electric pressure washers are built for industrial cleaning on construction sites, farms, mining and oil fields. Known for the efficiency and longevity, they feature a top fired heat exchanger that is completely accessible for troubleshooting.

Features:

Pump | Forged brass manifold · Thermal relief valve · Equipped with the Mi-T-M Pressure Relief Start which eliminates pressure build-up in the system. No need to trigger the gun when starting the pressure washer.
Motor | Totally enclosed fan-cooled electric motor with manual thermal overload protection · 35-foot power cord
Frame | Reinforced powder coated steel tube frame with center balanced lift · Convenient gun/wand holder and hose wrap · 13-inch flat-free tires
Components | Energy-efficient top-fired heat exchanger · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)
Miscellaneous | Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F
Unit Includes | Quick connect nozzles - 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided high pressure hose with quick connects · Professional-grade insulated trigger gun with safety lock-off · Adjustable pressure insulated dual lance

Specifications:

PSI | 1000
GPM | 2.0
Horsepower/Motor | 1.5 HP, 120V, 1Ø, 15.0A
Pump | Mi-T-M
Plug Type | NEMA 5-15P
Burner Fuel Tank Cap. | 4.0 gallon
Burner Fuel Cons. | 1.33 gph
BTU Per Hour | 186,000

Weights & Dimensions:

Net Weight | 237 lbs.
Shipping Weight | 410 lbs.
Length | 43 in.
Width | 29.5 in.
Height | 36.5 in.

Options (Sold Separately):

HX-0237 | Auto start/stop -when trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart
HX-0239 | Steam -reduces pressure to 350-PSI by adjusting unloader valve counter-clockwise, spray temperatures will rise 240° F above ambient with a maximum of 300° F
HX-0233 | Adjustable thermostat -operator is able to adjust outlet water temperature
HX-0235 | Hour meter -Displays number of hours unit has been in operation
HX-0238 | Time delay shutdown -timer will shut unit off automatically when trigger gun is released and timer reaches setting

Limited Warranties:

1 year electric motor
3 year coil
7 year General and Mi-T-M pumps

Certification:

 CSA Certified - US and Canada
