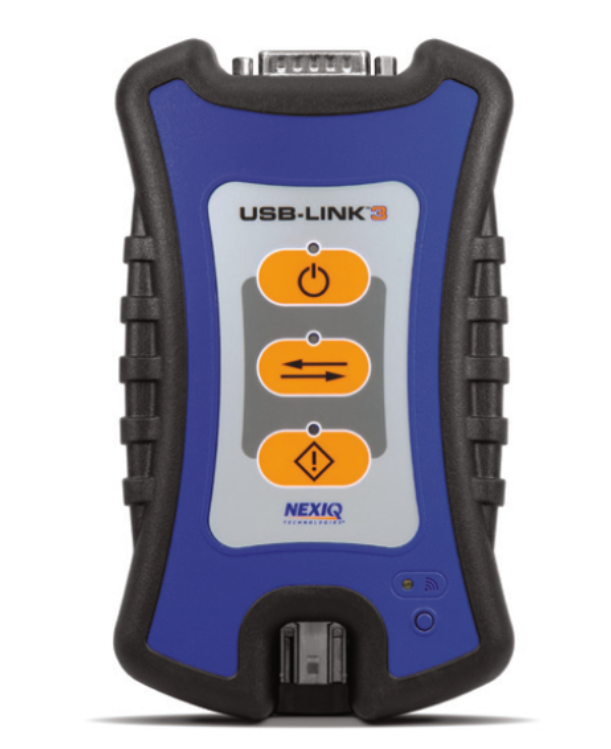

Nexiq 121052 USB-Link 3: Wireless

Designed for flexibility, the USB-Link 3 Wireless Edition connects to your PC, tablet, or smart phone, via Bluetooth and Wi-Fi. In addition, the USB cable gives techs the option to directly connect to a PC when working in the field or during signal interruptions. Built to support the latest protocols (CAN FD, DoIP), and with the compatibility for a wide range of OEM diagnostics software, the USB-Link 3 is our most advanced VCI to date with the performance and technology you can rely on well into the future.

The USB-Link 3 comes with the following:

• Latching USB Cable (PN 404032)
• 9-Pin Deutsch Adapter, 1 Meter (PN 493128)
• J1962 Adapter (16-Pin OBD II, 1 Meter (PN 491113)
• A USB-Link™ 3: Wired Edition is also available (PN 121054)

Specifications:

• Vehicle Network Protocol Support
• CAN FD / J1939 FD / ISO15765 FD - 250K, 500K, 1M b/s with auto baud detection
• Single wire CAN (SWCAN)
• ISO 11898-3 Fault Tolerant CAN (FTCAN)
• Diagnostics Over Internet Protocol (DoIP)
• J1708
• J1850 VPW (Class 2)
• ISO PWM (SCP)
• ISO 9141 / KWP2000 (ISO 14230) K/L line
• ALDL 9600 and 8192 baud
• ATEC 160 baud
• Windows® Vehicle Communication API
• RP1210 a/b/c
• J2534 (2004 draft)
• J2534-1 partial implementation (commercial vehicle focused)
• Operating System Compatibility
• iOS
• Android™
• Windows® 10, 11
• Interfaces to Computing Platforms
• USB 2.0 (vehicle-to-PC connectivity)
• Bluetooth® 2.1 + EDR
• Wi-Fi (dual band)
• Compatible Software
• Detroit Diesel Diagnostic Link
• CAT Electronic Technician (On-Highway only)
• Cummins Insite
• International - ServiceMAXX Fleet Pro
• Hino eXplorer
• Volvo PTT
• VCAD Elite Mack/Volvo
• V-MAC Service Tools
• Allison DOC® For PC-Service Tool - Protocols Supported: J1939, J1708/J1587, and J1850
• Allison DOC® For Fleets (1000/2000) - Protocols Supported: J1939, J1850
• Allison DOC® For Fleets (3000/4000) - Protocols Supported: J1939, J1708/J1587
• Eaton ServiceRanger
• Bendix ACom
• WABCO Toolbox
• Freightliner ServiceLink
• International ABS
• International DLB
• International Intune
• International IPC v2.02
• PACCAR DAVIE4

Accessories:

405001 Bluetooth USB Adapter | Bluetooth Adapter for Wireless Connectivity
493148 6 and 9-Pin Deutsch Adapter | Standard adapter for most heavy-duty vehicles.
404032 Latching USB Cable | Latching USB Cable
493013 J1962 Adapter (16-Pin OBD II) | 16-pin J1962 (OBD II) adapter for use with the USB-Link 2 and USB-Link 3
493028 9-Pin Deutsch Adapter | Standard 9-pin Deutsch for use with the USB-Link 2 and USB-Link 3
493001 9-Pin Deutsch Adapter, Locking | 9-pin Deutsch locking adapter for use with the USB-Link 2 and USB-Link 3
493101 9-Pin Deutsch Adapter, Locking (1 Meter) | Standard 1 meter, locking 9-pin Deutsch adapter
494024 6-Pin Deutsch Adapter | Standard 6-pin Deutsch adapter
493015 CAT 9-Pin Deutsch Adapter | 9-pin locking adapter for use with older CAT engines
493014 9 Pin Deutsch Caterpillar "T" Adapter | 9-pin Deutsch Caterpillar "T" adapter for use with the USB-Link 2 and USB-Link 3
493007 DDEC Marine Adapter, Locking | Locking adapter for use with Detroit Diesel marine applications.
493022 Volvo 14-Pin Adapter | 14-pin adapter for use with Volvo trucks
493020 Volvo 8-Pin Adapter | 8-pin adapter for use with Volvo trucks
493126 26-Pin 1 Meter Data Cable | 26-Pin extension data cable for use with the USB-Link 2 and USB-Link 3
493033 3-Pin Deutsch, 2-Pin Cummins Adapter | For use with Cummins engines with either a J1939 3-pin Deutsch or a 2-pin adapter
408002 6-Pin to 9-Pin Deutsch Adapter (8 inches) | 6-Pin to 9-Pin Deutsch Adapter
499021 Komatsu 12-Pin Adapter | For use with the USB-Link 2 and USB-Link 3
499012 8-Pin AMP Adapter | Replaces PN401012
493128 9-Pin Deutsch Adapter - 1 Meter | Standard 1 Meter, 9-pin Deutsch for use with the USB-Link 2 and USB-Link 3
493113 1 Meter J1962 Adapter (16-Pin OBD II) | 1 Meter J1962 Adapter (16-Pin OBD II)
