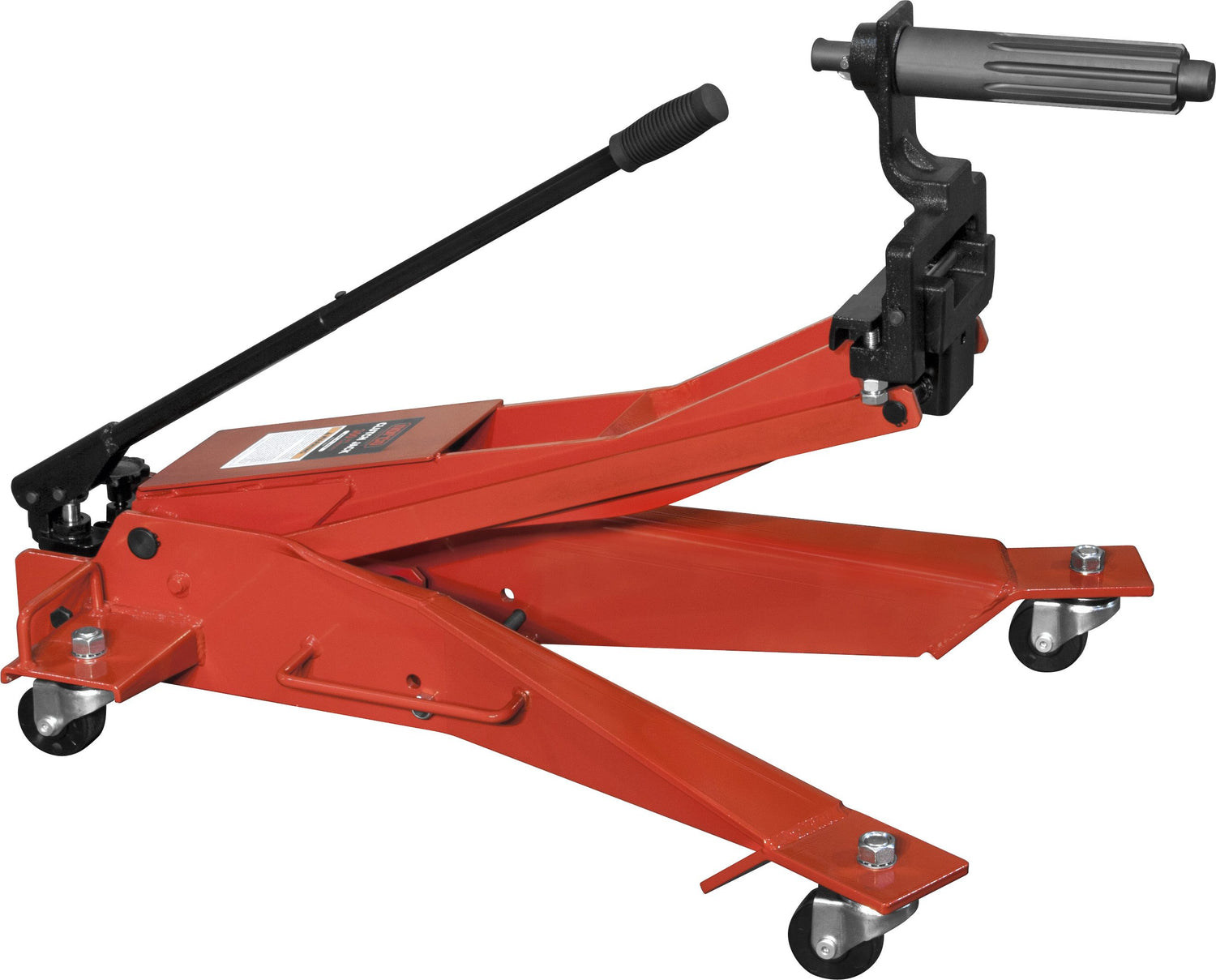

Norco 72030B 300 LB Clutch Jack

To remove, install and transport (in the lowered position) both 14” & 15-1/2” heavy duty clutches and flywheels.

Features:

• Clutch/flywheel removal and installation becomes a one man job.
• Tilting saddle enables clutch to be positioned in either horizontal position for clearing underneath truck or vertical position for installation and removal.
• Adjustment bolt on saddle aligns clutch and flywheel.
• Spline shaft rotates 360 degrees, turns left and right for clutch and engine alignment. 2” and 1-3/4” spline shafts included.
• Conveniently located release valve and 360 degree rotating pump handle allow jack to be operated in any work position.

Dimensions:

• Low Lift Height | 11.5"
• High Lift Height | 37.75"
• Length | 35"
• Width | 26.5"
• Shipping Weight | 148 lbs.

This Norco clutch jack ships by truck and extra shipping charges will apply to ship to a non-commercial address.

Optional Equipment:

• 72037 Eaton Fuller Solo 14 Spline Clutch Disc Tool
• 72033 Flywheel Adapter
• 72038 Drive Shaft Support Adapter
