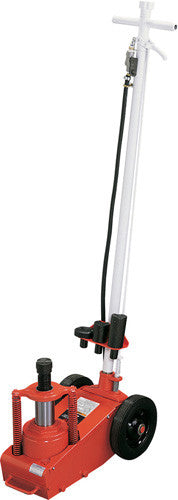

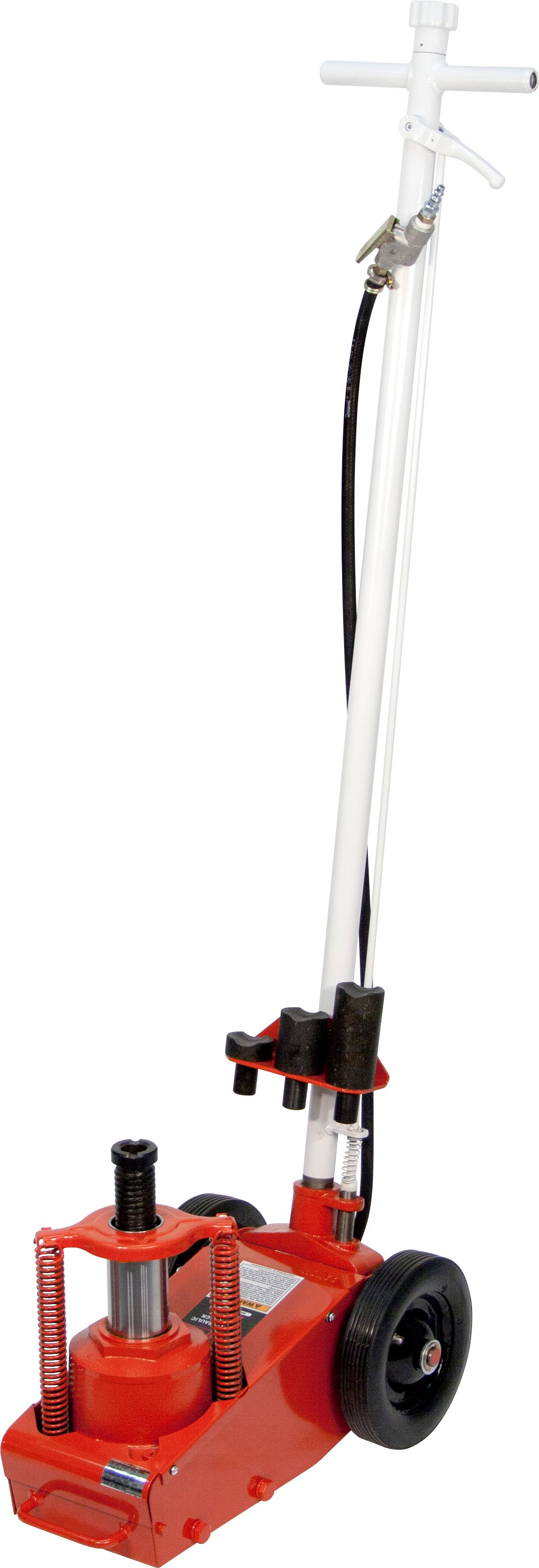

Norco 72200D 22 Ton Air Operated Hydraulic Axle Jack

Ideal for heavy duty truck, agricultural and heavy construction equipment.

Significant Advantages:

• Due to the use of precision manufacturing, along with the key design features listed below, we have created a jack that has the lowest warranty claim rate in our product line
• The 72200D has a longer service life than any of our competitors
• Four Removable saddles with handle-mounted saddle holder included
• Lifts 50% faster than our leading competitor!

Features:

• 50" Long "T" handle helps in positioning jack under vehicles with low overhang.
• The load release on the top mounted "T" handle allows operation in any handle position.
• Handle locking lever secures handle in either vertical, horizontal or 45 degree position.
• Compact design fits easily between tandem wheels.
• Rust inhibitive coating on ram and extension screw offers longer life.
• Large diameter wheels make maneuverability easy.
• Self-retracting ram eliminates manual lowering of jack.
• Safety bypass and overload systems prevent cylinder damage and prevent the jack from being used beyond the ASME/PASE load-limiting standard.
• Integrated filter protects air motor.
• Fast lifting air motor.
• Three removable 2" diameter saddles with handle mounted saddle holder; 3/4", 2-1/4" and 4" in height.

Dimensions:

• Low Lift Height | 9"
• High Lift Height | 22"
• Stroke | 4.75"
• Screw Extension | 4.25"
• Length | 20"
• Width | 13"
• P.S.I. Range | 85-145
• Shipping Weight | 115 lbs.
