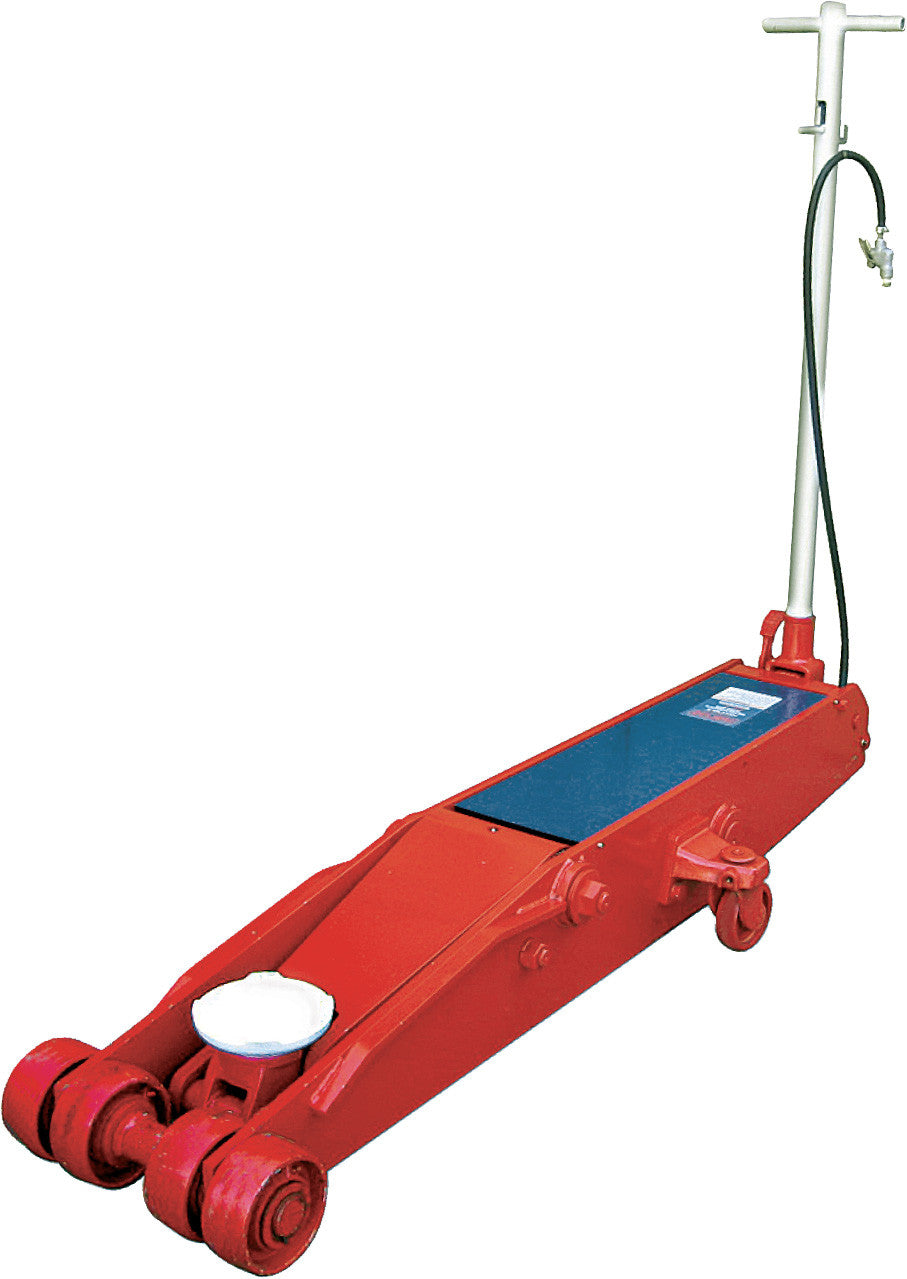

Norco 72230A 20 Ton Capacity Air/Hydraulic Floor Jack

The Norco 72230A has a 20 Ton lifting capacity and has a wide range lifting height, with a low lifting height of 7.25" and a high lifting height of 26.25".  It is also equipped with a safety by-pass and overload system that protects the hydraulic block.

Heavy duty truck, heavy construction and agricultural equipment maintenance garages.

Features:

• Chromed ram and dust seals prevent hydraulic contamination.
• Safety bypass and overload systems prevent cylinder damage and prevent the jack from being used beyond the ASME/PASE load-limiting standard.
• Air pump models can also be operated manually.
• Locking release lever secures handle in the vertical, 45 degree or horizontal position to lower the load on all models.

Dimensions:

• Low Lift Height 7.25"
• High Lift Height 26.25"
• Length 71.5"
• Width 20.75"
• Shipping Weight 670 lbs.

Click Links Below for Additional 72230A Information:

• 72230A Operations Manual
• 72230A Exploded Drawing
• 72230A Dimension Comparison Chart
• 72230A Sell Sheet
