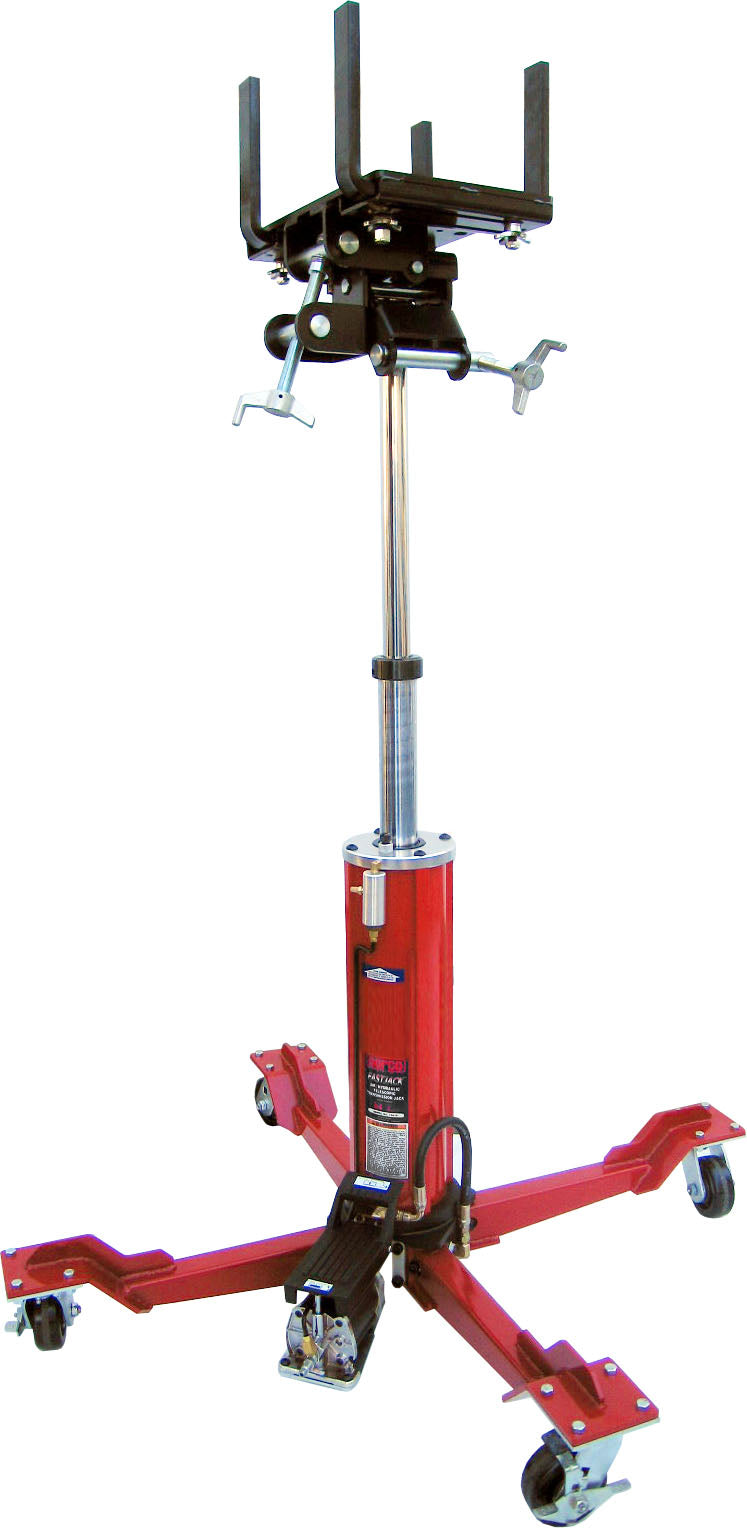

Norco 72475A 3/4 Ton Telescopic Under Hoist Air/Hydraulic Transmission Jack - FastJack

Designed for the removal, installation and transportation (in the lowered position) of transmissions and transfer cases on passenger cars and up to one ton capacity vans and trucks that are raised by an in-ground or above-ground lift.

Features:

• U.S. Patent No. 7,171,807
• Air/hydraulic foot pump provides hands free operation and easy, convenient lifting.
• Metered pump valve provides safe lowering of load.
• Fully adjustable universal saddle with hand adjustable corner brackets and safety chain.
• Safety overload system prevents jack from being used beyond the ASME/PASE load-limiting standard.
• Two-stage flash chromed rams inhibit rust from entering hydraulic system.
• Comes with a larger 10-1/4” x 15-1/8” saddle plate and four adjustable “L”-shaped locating bars.
• Wide base with four easy rolling 4” diameter swivel ball bearing caster wheels (two are locking caster wheels) provides stability and easy maneuvering in its lowered position.
• The wheels, made from a phenolic resin, offer high impact resistance and are non-marking for protection of tile and epoxy floors.

Dimensions:

• Low Lift Height 36.5"
• High Lift Height 75.25"
• Base Dimensions 36" x 36"
• Shipping Weight 196 lbs.

Optional adapters available:

• 72004: Ford 6R140 Transmission Adapter

• 72507B: Ford E40D Truck & 4R100 4x4 Transmission Adapter

• 72508: Fuel Tank Saddle

• 72509: Ford 5R55W, 4R70W, 4X4N, AXOD Metric Transmission Adapter

• 72512: Ford 6F50 Adapter

• 72513: Ford CD4E Transmission Adapter

• 72514: Mercedes 722 Adapter

• 72525: Quick-Adjust Saddle

• 72527: Ford 4F27E Transmission Adapter

• 72528: Ford 6R80 Transmission Adapter

• 72529: Ford Diesel Exhaust Adapter

• 72532: Ford DPS6 Adapter

• 72533: Universal Bean Bag Saddle

• 72534: Ford/Lincoln 6F35 & GM 6T40 Adapter

• 72535: Ford GT Adapter

• 72536: Ford 10R80 Adapter

• 72537: Chrysler 948 Transmission Adapter
