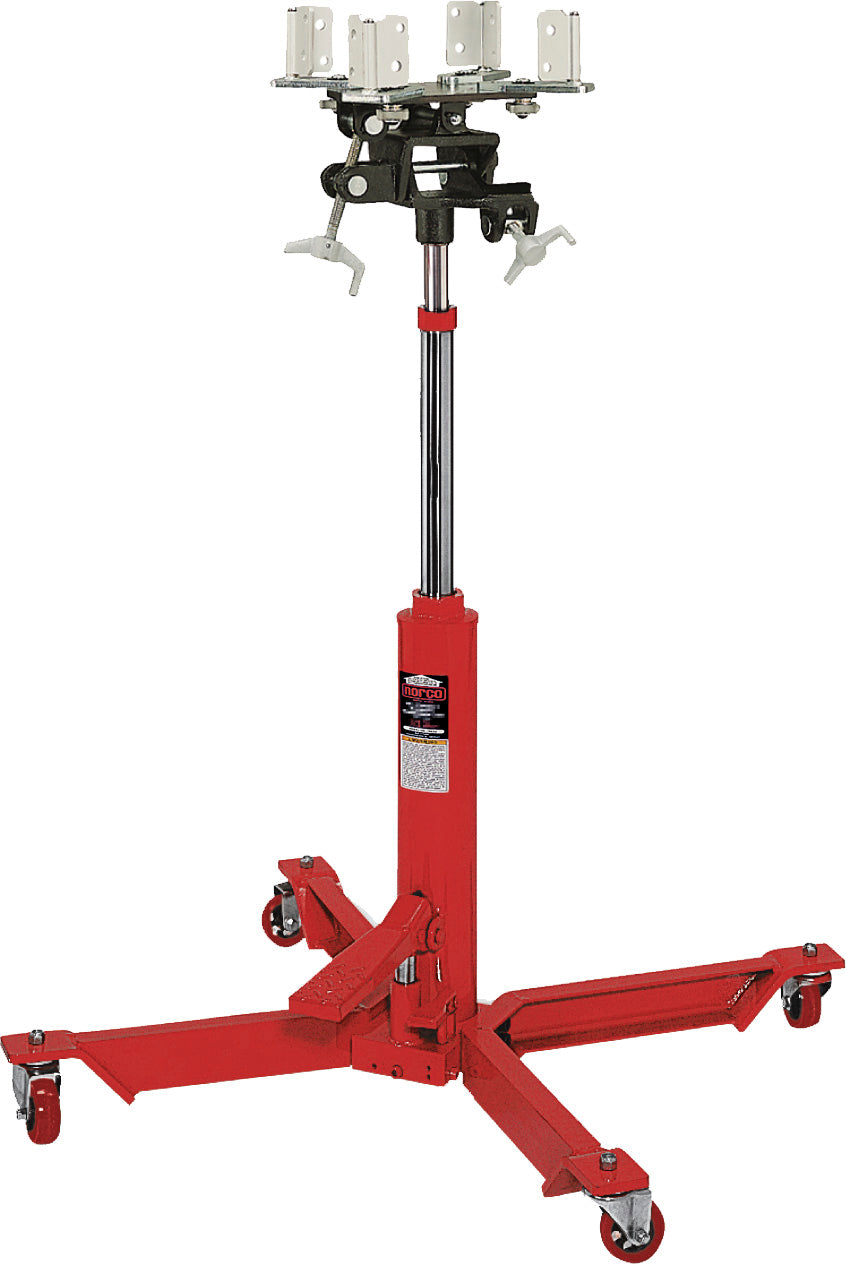

Norco 72500E 1.2 Ton Single Pump Transmission Jack

Designed for the removal, installation and transportation (in the lowered position) of transmissions and transfer cases on passenger cars, vans and light trucks that are raised by an in-ground or above-ground lift.

Features:

• Fully adjustable universal saddle with hand adjustable corner brackets and safety chain.
• Safety overload system prevents jack from being used beyond the ASME/PASE load-limiting standard.
• Foot operated pump and lowering pedals allow use of both hands to position and align saddle with transmission.
• Two-stage flash chromed rams inhibit rust from entering hydraulic system.
• Wide base with four easy rolling 4" diameter swivel ball bearing caster wheels provides
• stability and easy maneuvering in its lowered position.
• Polyurethane wheels provide protection for expensive tile and epoxy floors.

Dimensions:

• Low Lift Height | 35"
• High Lift Height | 72"
• Base Dimensions | 34" x 37"
• Shipping Weight | 176 lbs.

Optional adapters available:

• 72002: Ratchet Straps

• 72004: Ford 6R140 Transmission Adapter

• 72507B: Ford E40D Truck & 4R100 4x4 Transmission Adapter

• 72508: Fuel Tank Saddle

• 72509: Ford 5R55W, 4R70W, 4X4N, AXOD Metric Transmission Adapter

• 72512: Ford 6F50 Adapter

• 72513: Ford CD4E Transmission Adapter

• 72514: Mercedes 722 Adapter

• 72525: Quick-Adjust Saddle

• 72527: Ford 4F27E Transmission Adapter

• 72528: Ford 6R80 Transmission Adapter

• 72529: Ford Diesel Exhaust Adapter

• 72532: Ford DPS6 Adapter

• 72533: Universal Bean Bag Saddle

• 72534: Ford/Lincoln 6F35 & GM 6T40 Adapter

• 72535: Ford GT Adapter

• 72536: Ford 10R80 Adapter

• 72537: Chrysler 948 Transmission Adapter
