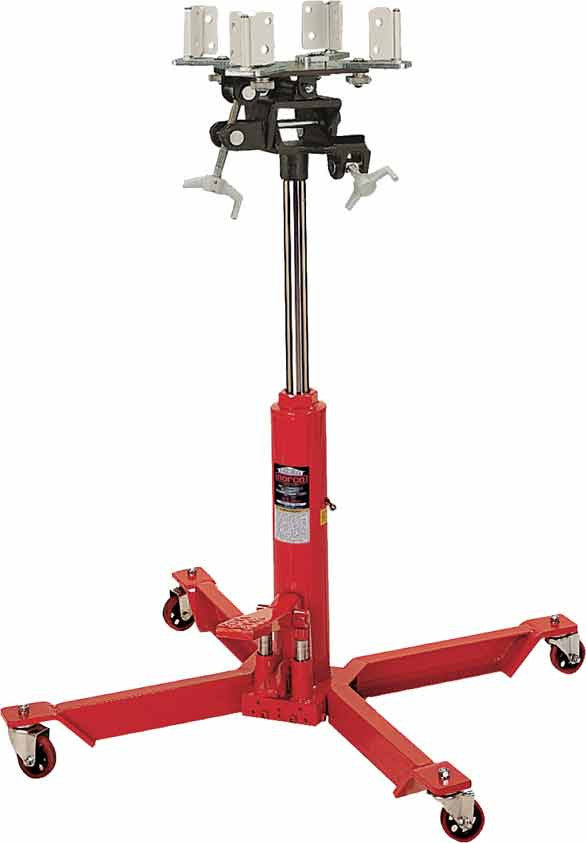

Norco 72550B 1/2 Ton Telescopic Under Hoist Double Pump Transmission Jack - FastJack

Designed for the removal, installation and transportation (in the lowered position) of transmissions and transfer cases on passenger cars, vans and light trucks that are raised by an in-ground or above-ground lift.

Features:

• U.S. Patent No. 5,975,496 (Double Pump Design)
• Fully adjustable universal saddle with hand adjustable corner brackets and safety chain.
• Safety overload system prevents jack from being used beyond the ASME/PASE load-limiting standard.
• Foot operated pump and lowering pedals allow use of both hands to position and align saddle with transmission.
• Two-stage flash chromed rams inhibit rust from entering hydraulic system.
• Wide base with four easy rolling 4" diameter swivel ball bearing caster wheels provides stability and easy maneuvering in its lowered position.
• Two times faster rising action as model 72500E with no load or a load up to 400 pounds.
• Same rising action as model 72500E for loads between 400 and 1,000 pounds.
• The polyurethane wheels provide protection for expensive tile and epoxy floors.

Dimensions:

• Low Lift Height | 35"
• High Lift Height | 72"
• Base Dimensions | 34" x 37"
• Shipping Weight | 178 lbs.

Optional adapters available:

• 72004: Ford 6R140 Transmission Adapter

• 72507B: Ford E40D Truck & 4R100 4x4 Transmission Adapter

• 72508: Fuel Tank Saddle

• 72509: Ford 5R55W, 4R70W, 4X4N, AXOD Metric Transmission Adapter

• 72512: Ford 6F50 Adapter

• 72513: Ford CD4E Transmission Adapter

• 72514: Mercedes 722 Adapter

• 72525: Quick-Adjust Saddle

• 72527: Ford 4F27E Transmission Adapter

• 72528: Ford 6R80 Transmission Adapter

• 72529: Ford Diesel Exhaust Adapter

• 72532: Ford DPS6 Adapter

• 72533: Universal Bean Bag Saddle

• 72534: Ford/Lincoln 6F35 & GM 6T40 Adapter

• 72535: Ford GT Adapter

• 72536: Ford 10R80 Adapter

• 72537: Chrysler 948 Transmission Adapter

PLEASE NOTE IMPORTANT INFORMATION:

• This Norco transmission jack ships by truck and extra shipping charges will apply to ship to a non-commercial address.
