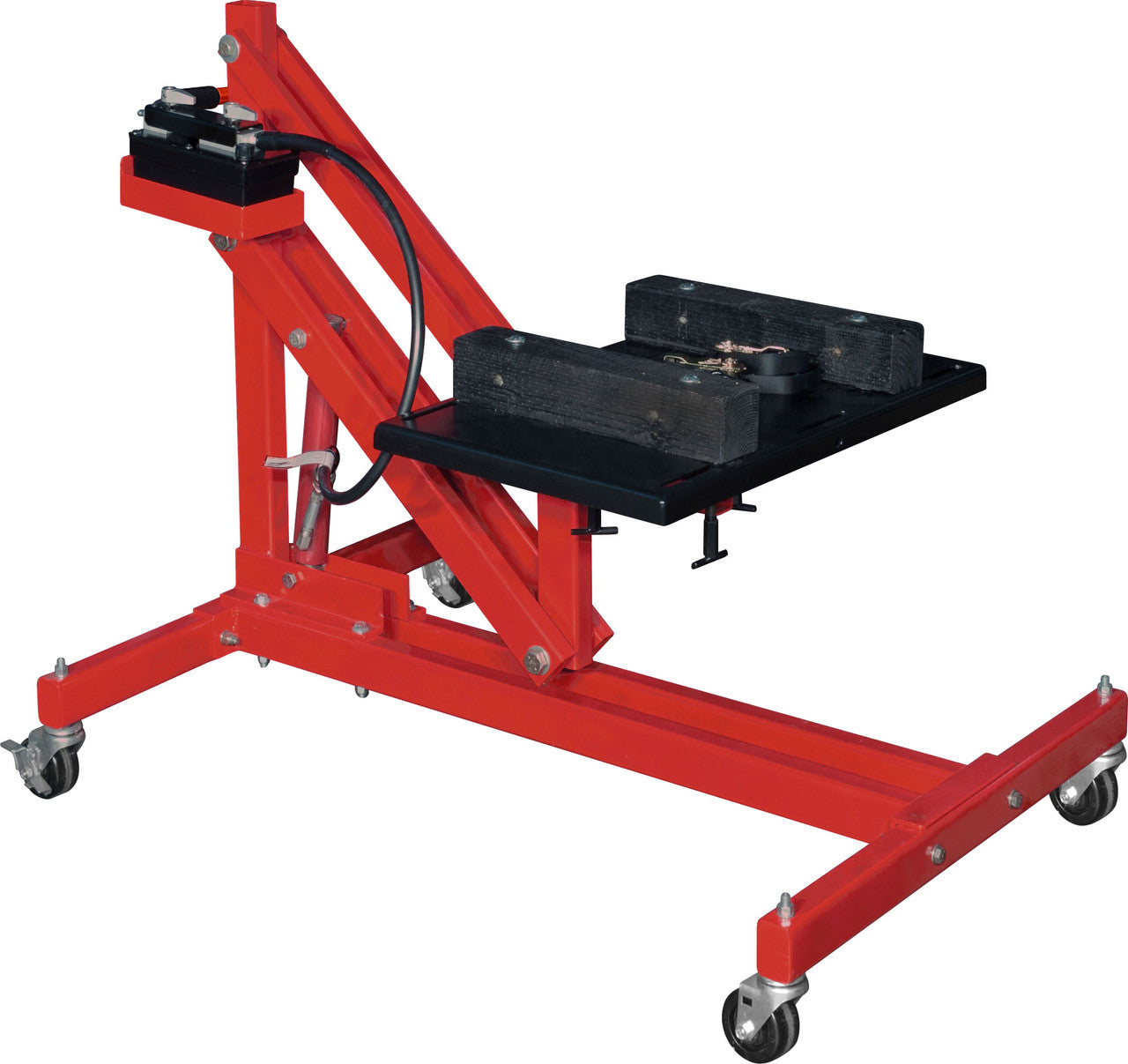

Norco 72674 1,250 Lbs. Capacity Powertrain Lift / Table

The powertrain lift/table not only handles transmissions and fuel tanks, but also engines and transaxles, rear ends and leaf springs. Also serves as a work table where the components can be lowered to a stable and secure work height for repair.

Features:

• Fingertip control for both pressure and release operations provides finer control of raising or lowering loads.
• Safety overload system in the air/hydraulic pump prevents jack from being used beyond the load-limiting standard.
• The pump can be removed from its holder and placed closer to the lift saddle, leaving hands free to accurately position the load.
• Fully adjustable saddle with two ratchet tie downs secure the load to the saddle.
• Four easy rolling caster wheels (locking rear caster wheels) provides stability and easy maneuvering in its lowered position.
• The wheels, made from a phenolic resin, offer high impact resistance and are non-marking for protection of tile and epoxy floors.
• The optional model 72508 Fuel Tank Saddle Adapter can be quickly and easily installed.

Dimensions:

• Low Lift Height 25.5"
• High Lift Height 65"
• Length 57"
• Width 42.75"
• Height 44.5"
• Table Size 20.25" x 32.25"
• Shipping Weight 410 lbs.

Optional adapters available:

• 72004: Ford 6R140 Transmission Adapter

• 72507B: Ford E40D Truck & 4R100 4x4 Transmission Adapter

• 72508: Fuel Tank Saddle

• 72509: Ford 5R55W, 4R70W, 4X4N, AXOD Metric Transmission Adapter

• 72512: Ford 6F50 Adapter

• 72513: Ford CD4E Transmission Adapter

• 72514: Mercedes 722 Adapter

• 72525: Quick-Adjust Saddle

• 72527: Ford 4F27E Transmission Adapter

• 72528: Ford 6R80 Transmission Adapter

• 72529: Ford Diesel Exhaust Adapter

• 72532: Ford DPS6 Adapter

• 72533: Universal Bean Bag Saddle

• 72534: Ford/Lincoln 6F35 & GM 6T40 Adapter

• 72535: Ford GT Adapter

• 72536: Ford 10R80 Adapter

• 72537: Chrysler 948 Transmission Adapter
