Norco 72850A 2500 lb Power Train Lift

This lift/table handles power train components like engines and their transmissions, engines with transaxle assemblies, rear ends and large electric vehicle batteries. It will also serve as a work table where components can be lowered to a convenient work height for repairs.

Features:

• An air/hydraulic foot pump includes a metered valve for safe lowering of the load.
• Safety overload system in the air/hydraulic pump prevents jack from being used beyond the load-limiting standard.
• Five foot extension hose with quick disconnect fittings stores in the lift base. The foot pump can be removed from its holder and hydraulic hose quickly and easily extended by 5’ using the extension hose. This provides hands free operation of the pump anywhere around the lift’s perimeter.
• Scissors lift design provides easy 360˚ access to any component.
• Two heavy duty ratchet tie-downs are included to safely secure the load on the lift table.
• Table top height from 31” to 80-1/2”.
• Four 8” diameter swivel caster wheels for easy maneuverability. Rear wheels can be locked to prevent the lift from rolling.

Dimensions:

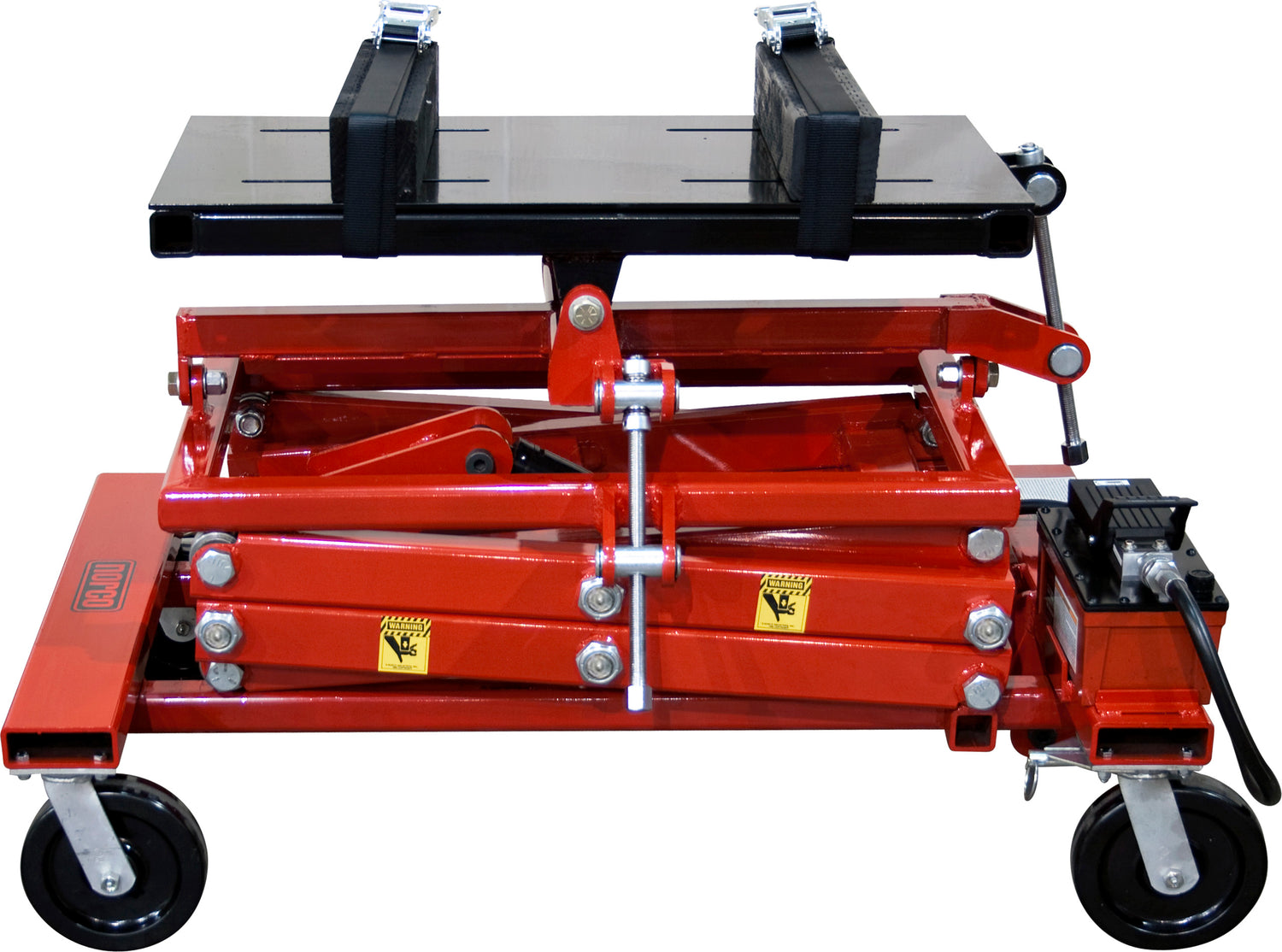

• Low Lift Height | 31"

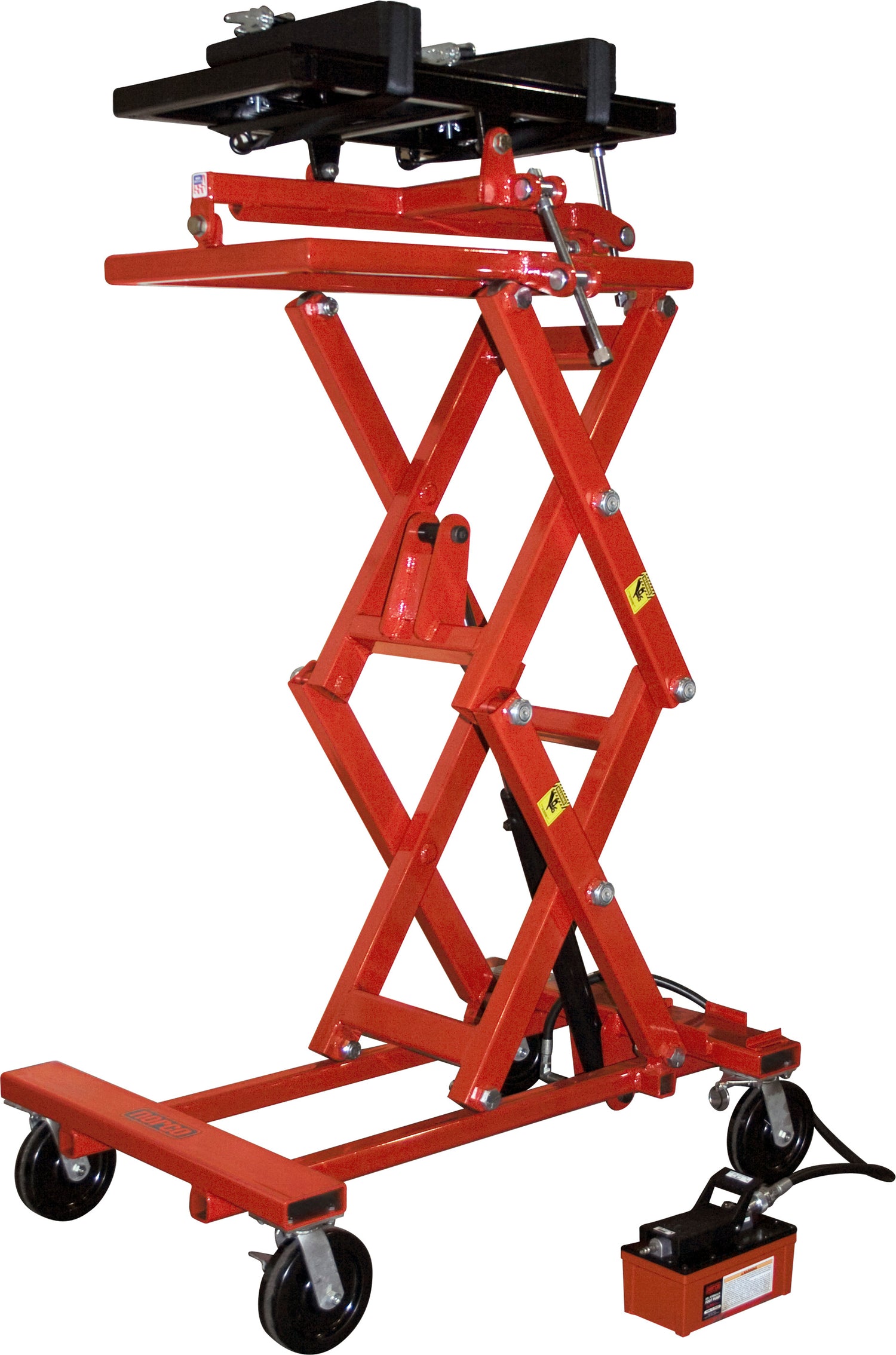

• High Lift Height | 78"
• Length | 50"
• Width | 33"
• Height | 35
• Table Size | 19" x 36"
• Shipping Weight | 665 lbs.

This Norco power train lift ships by truck and extra shipping charges will apply to ship to a non-commercial address.

Click Links Below for Additional 72850A Information:

• 72850A Operations Manual
• 72850A Sell Sheet
