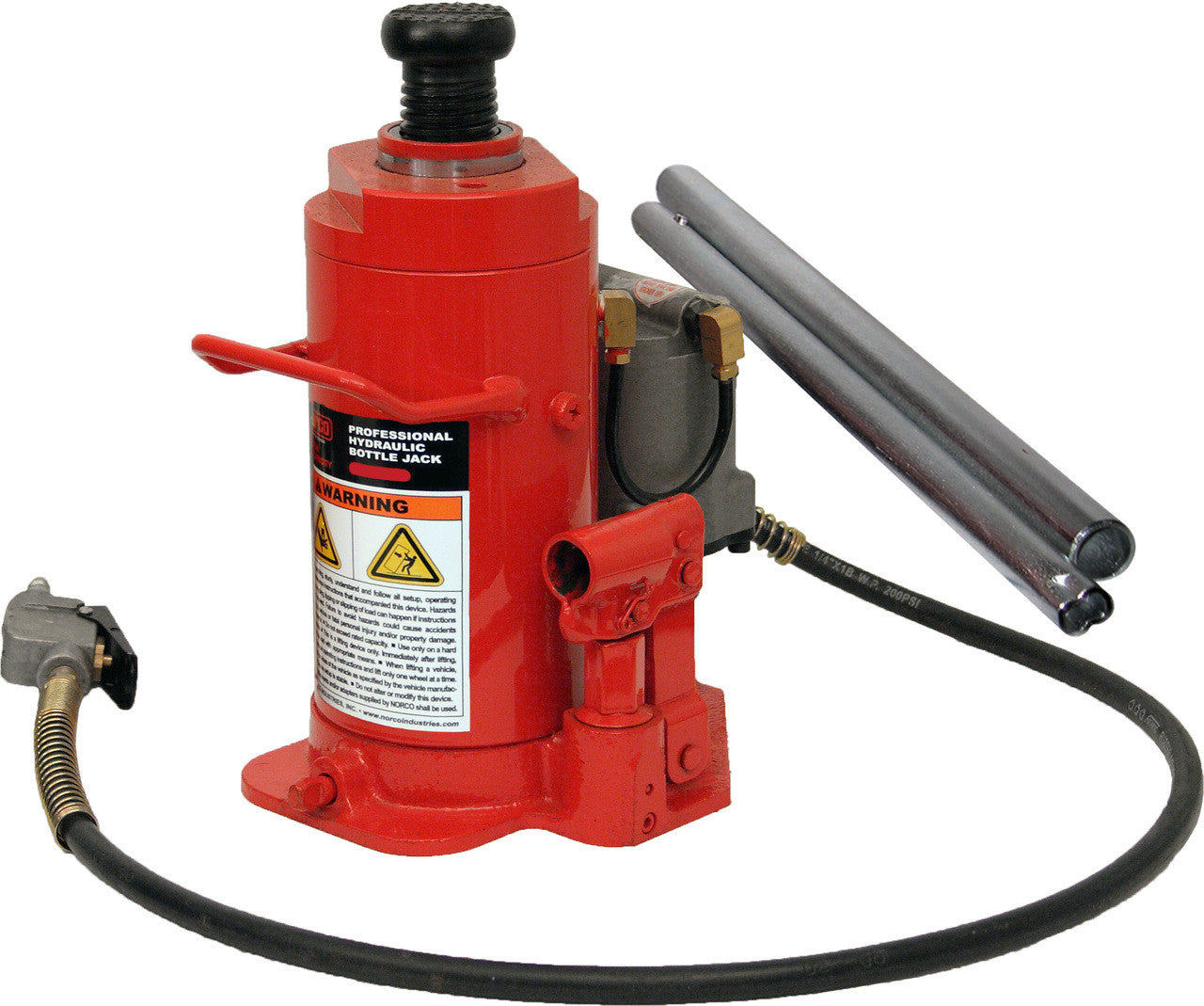

Norco 76312B 12 Ton Air/Hydraulic Bottle Jack

For use in heavy duty trucks, farm equipment, building construction, construction and mining equipment, mobile home set-up and oil field applications.

Features:

• Fast efficient air pump reduces lifting time and has a built-in relief mechanism which prevents the jack from being used beyond its maximum allowable capacity.
• Convenient push button air valve connected to an in-line filter prevents contaminates from entering the air/hydraulic system.
• Unique design allows for manual operation when air is not available.
• Two piece zinc plated handle.
• Parkerized coating on pump piston, extension screw and extension adapters and chrome coated ram offer protection against rust.
• Longer wear life due to internally machined oil passages, smooth bearing surfaces and close tolerances.
• Safety bypass and overload systems prevent cylinder damage and prevent the jack from being used beyond the ASME/PASE load-limiting standard.
• Carrying handle.

Dimensions:

• Low Lift Height | 9.625"
• High Lift Height | 19.75"
• Stroke | 6"
• Screw Extension | 4"
• Base Size | 6.625" x 8"
• P.S.I. Range | 100-130
• Shipping Weight | 24 lbs.

The NORCO Difference: "Parkerized" moving parts offer corrosion protection.
