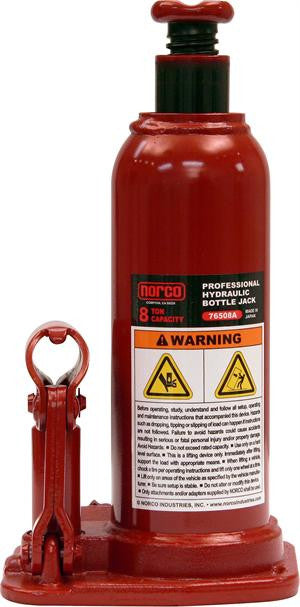

NorcoIndustries 76508B 8 Ton Bottle Jack

For heavy duty truck, agriculture, construction, mining, mobile home, oil field, automotive, and marine applications where lifting, pushing, spreading, bending, pressing, or straightening are required.

Features:

• Two piece zinc plated handle.
• Prevent rust with “Parkerized” pump piston, ram and extension screw.
• No leak “Uniweld” construction.
• State of the art design reduces repair time.
• Longer wear life due to internally machined oil passages, smooth bearing surfaces and close tolerances.
• Lightweight forged base provides more steel only where strength is required.
• The heavy-duty extension screw and release valve were designed to eliminate parts and reduce the chances of breakage and excessive wear.
• Safety bypass and overload systems prevent cylinder damage and prevent the jack from being used beyond the ASME/PASE load-limiting standard.

Dimensions:

• Low Lift Height 9.0625"
• High Lift Height 18.75"
• Stroke 6.5"
• Screw Extension 3.1875"
• Base Size 5.375" x 5.125"
• Carry Handle Yes
• Shipping Weight 14 lbs.

The NORCO Difference: "Parkerized" moving parts offer corrosion protection.
