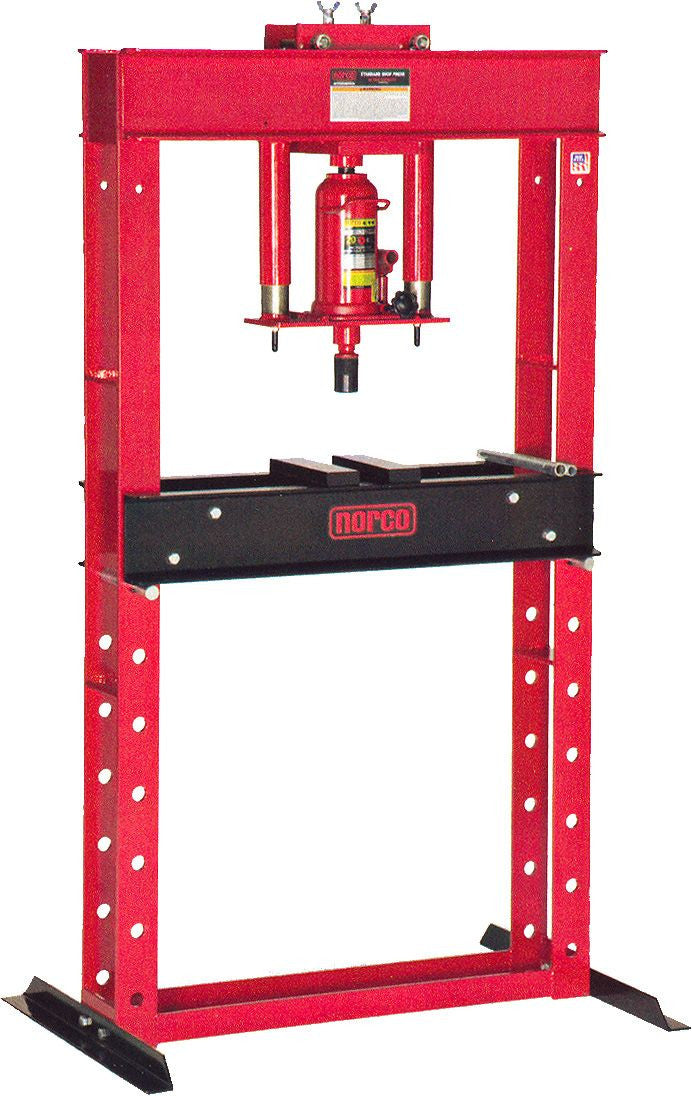

Norco 78022E 22 Ton Hand Operated USA Made Hydraulic Press 6 5/8" Stroke

Straightening, bending & pressing. Removing & installing gears, bearings & bushings.

Features:

• Welded frame, fully assembled, tested, and ready to put to work.
• Manual pump power unit with “Parkerized” pump piston, ram and extension screw to inhibit rust from entering the hydraulic system.
• Pair of bed plates included.
• Shielded heavy duty ram return springs.
• Power unit is bearing mounted for horizontal movement on head channel.
• Zero distortion, heavy duty structural steel frame.

Specifications:

• Ram Travel | 6.625"
• Min. Throat Height | 7.125"
• Max. Throat Height | 35.5"
• Throat Width | 30"
• Bed Height Adj. | 7 x 4.75"
• Between Uprights | 6"
• Between Bed Rails | 7"
• Base Width | 40"
• Base Depth | 28"
• Overall Height | 70.625"
• Shipping Weight | 394 lbs.

Click Links Below for Additional 78022D Information:

• 78022D Operations Manual
• 78022D Exploded Drawing
• 78022D Sell Sheet
